Hoppe Key Operated Multipoint Lock 1-¾ Inch Backset Doors 73.62-85.43 Inch Egress Panic Function
Hoppe Key Operated Multipoint Lock 1-¾ Inch Backset Doors 73.62-85.43 Inch Egress Panic Function
Egress Looks are special order, 2-4 weeks
Faceplate Width: 15/16 inch (24mm) - New stock will be 5/8 (16mm) Faceplate
Backset: 1-3/4 inch (45mm)
Deadbolt Throw: 3/4 inch (20mm)
Locking Devices: Swing hook & Round bolts - New stock will be SwingHook only
Handle Height: 40.2 inch (1020mm)
Handle Hub / Shaft: 8mm Standard / 9mm Egress
Panel Height: Doors 73.62-85.43 inch (1870-2170mm)
Material: Stainless Steel F69
Cylinder Type: 360 degree Euro Profile
Country of Origin: Germany
Standard Function
Rotate the exterior key or interior thumbturn two turns to lock and unlock
the door. The exterior key or interior thumb turn retracts the latch.
The interior lever also retracts the latch.
8 mm handle shaft

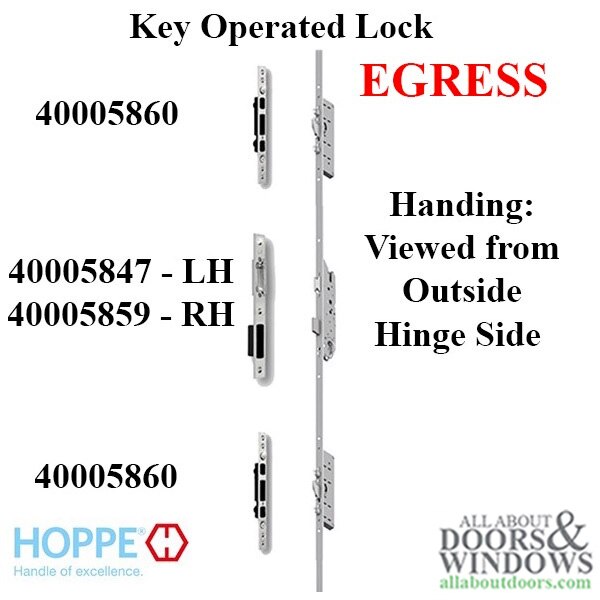

Egress Function
The interior lever retracts the latch and any extended bolts.
Rotate the exterior key or interior thumbturn two turns to lock and unlock the door.
The exterior key or interior thumb turn also retracts the latch.
9 mm handle shaft
Important Installation Notes
A 360° Cylinder is REQUIRED for this lock
You may use this 360° Cylinder - 413232130 - be sure to check that your door thickness works for your selected cylinder before purchasing
You may also purchase a 90° Cylinder but you will need to convert it to a 360° Cylinder before using it with this lock - our 90° Cylinders with our conversion video can be found here
