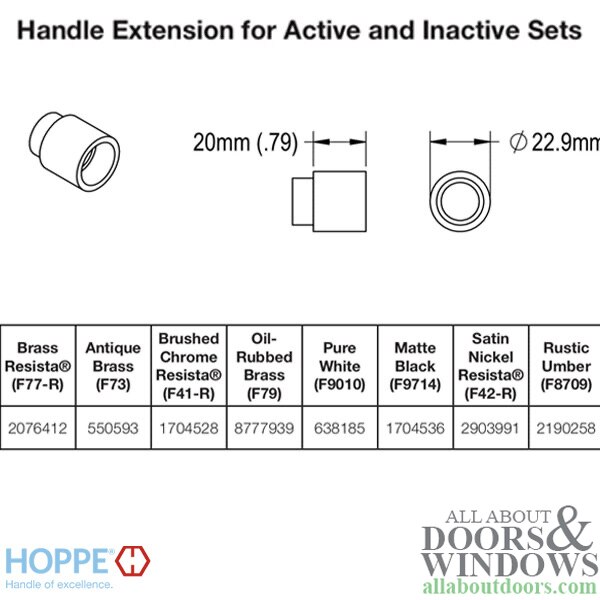

Hoppe handle extension for active or inactive /passive door handles. Will not work on dummy handles
Application: Active Handles that move up and down.

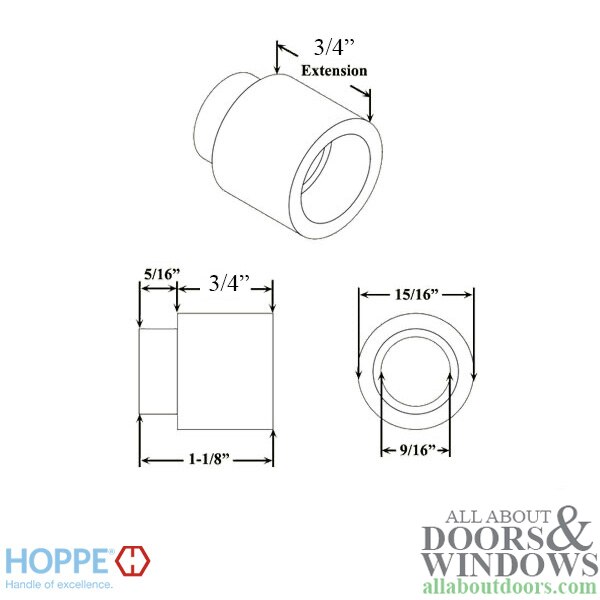

Overall Length: 1-1/16 inch
Length of Extension to Handle: 3/4 inch (20 mm)
Outer Diameter Width: 15/16 inch (11/16 inch thin and wide outer diameter)
Inner Diameter Width: 9/16 inch
Spindle Diameter: 5/16 inch (8 mm)
Color: Choose from List
Priced and sold each
When Adding an 3/4 inch extension, a longer spindle to connect the levers will be needed.
Standard Spindle for a 1-3/4 inch door is4-7/16 inch (120mm)
If adding 1 extension, a 5-1/2 inch (140mm) spindle will be needed # 517589
If adding 2 extensions, a 6-1/4 inch (160mm) spindle will be needed # 519200
Special Size Extensions: Longer, custom extensions and spindles are special order
