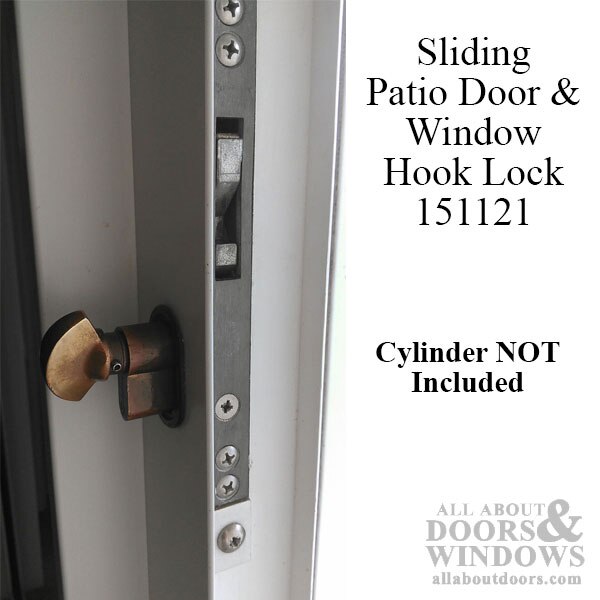

Hook Lock For Sliding Glass Patio Doors and Windows Sobinco Replacement
Sobinco replacement Hook Lock 6760 for sliding glass patio doors and sliding windows
Locks using only Euro Profile cylinder, Not included

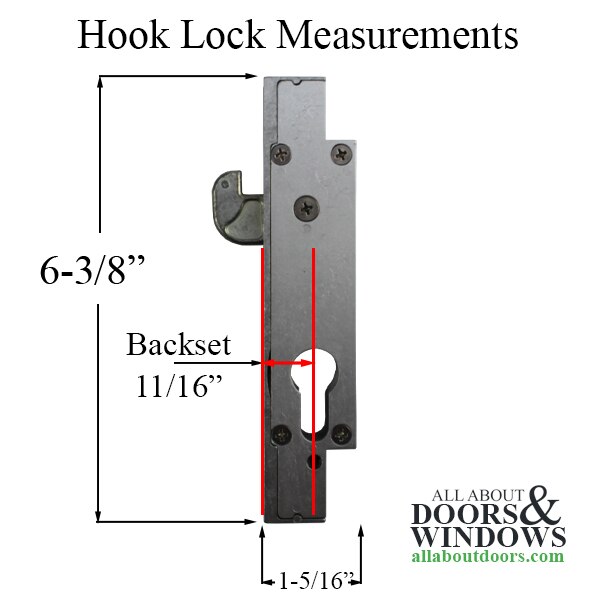

Backset: 11/16 inch (18.3mm) 0.7204
Lock Case A: X-Measurement Fraction - 7/8 inch ( 22.6mm) Actual Decimal - .8897
Lock Case A: Y-Measurement Fraction - 0 does not include brackets
Overall Length: 6-3/8 inch (162mm) 6.3779
Overall Depth: 1-5/16 inch (33.6mm)

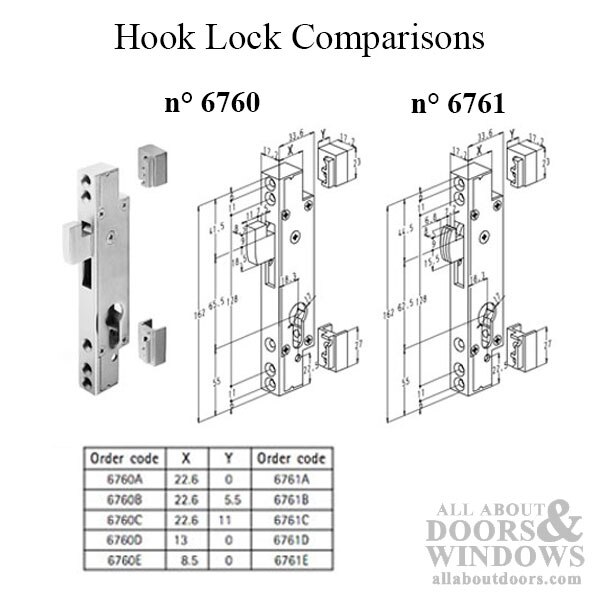

Lock has several variations - Please compare with additional images.
6760 Series - A,B,C,D or E
6761 Series - A,B,C,D or E
Locks using only Euro Profile cylinder, Not included
Backset: 11/16 inch (18.3mm) 0.7204
Lock Case A: X-Measurement Fraction - 7/8 inch ( 22.6mm) Actual Decimal - .8897
Lock Case A: Y-Measurement Fraction - 0 does not include brackets
Overall Length: 6-3/8 inch (162mm) 6.3779
Overall Depth: 1-5/16 inch (33.6mm)
Lock has several variations - Please compare with additional images.
6760 Series - A,B,C,D or E
6761 Series - A,B,C,D or E
Sobinco Hook Locks Options:
6760A, 6760B, 6760C, 6760D, 6760E
6761A, 6761B, 6761C, 6761D, 6761E
6760A, 6760B, 6760C, 6760D, 6760E
6761A, 6761B, 6761C, 6761D, 6761E
