NOTE: DOES NOT HAVE CYLINDER
Cylinder: We need to know door thickness, 1-3/4" or 2-1/4", etc.
Discontinued, LIMITED to EXISTING Inventory

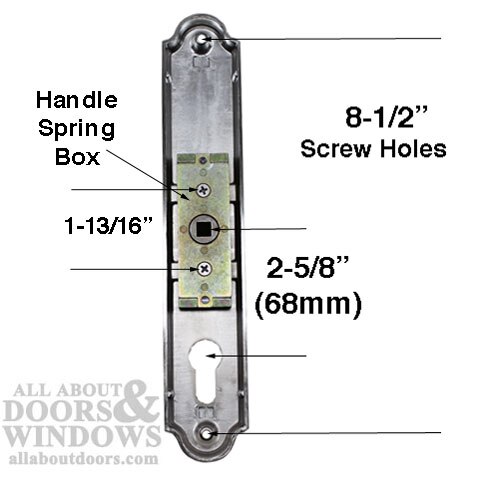

SPECIAL SIZE: NOT STANDARD - 2.677 inch (68mm) Handle to Cylinder Spacing.
See additional images
Function: Patio / Inactive Door Handleset, NO Key outside, Thumbturn inside
Germania handle with Lara backplate in a non-standard size.
Handle PZ: 2-5/8 inch (68 mm) spacing from center of handle to center of thumbturn.
Cylinder Type: Uses 1/2 Euro Profile, standard 360 degree.
Overall Cylinder Length: Varies according to door thickness
Lever Style: Germania, Curved
Plate Style: Lara, Arch Top
Escutcheon Plate Width: 1-3/4"
Escutcheon Plate Height: 9-11/16"
Spindle Diameter: 5/16 inch (8mm)
This trim uses a 1/2 profile cylinder,(not included) length is determined by door thickness
Finish: Satin Nickel
Spindle: 5/16 inch (8mm) Fits 1-3/4 (45mm) thick doors.
Screw Thread: Metric M4 Oval Head
Screw Length: 2-1/2 to 3-1/2" Break Away
Door Thickness: Fits 1-3/4 (45mm) to 2-1/4 (57mm) thick Door.
Will fit thicker doors, but may require longer screws, Spindle and Cylinder
Handed: Yes, Reversible, Left or Right hand as needed
Note: The set screw is used to secure the shaft to the handle(s).
The handles are secured to the plates by external "C" clips or "C" rings.
By removing the "C" rings/clips, the Right hand( RH) set could be converted to a Left Hand (LH )
To Determine Cylinder Length:
Take door thickness and plate thickness.
The overall cylinder length will be the same or longer.
IE: Door 1-3/4" + 1/2" Inside Plate + 1/2" Outside plate = 2-3/4" ( 70mm ) or 35/35 length
This assumes the lock is in the center of door and not offset
