  • G-U Ferco Rounded 47-1/4" Pull Handle, 45 degree Offset - Stainless Steel
Use the arrows or swipe left to view all images for this product


G-U Ferco Rounded 47-1/4" Pull Handle, 45 degree Offset - Stainless Steel

Part Number: B-78060-0A-0-SS
Price: $236.74

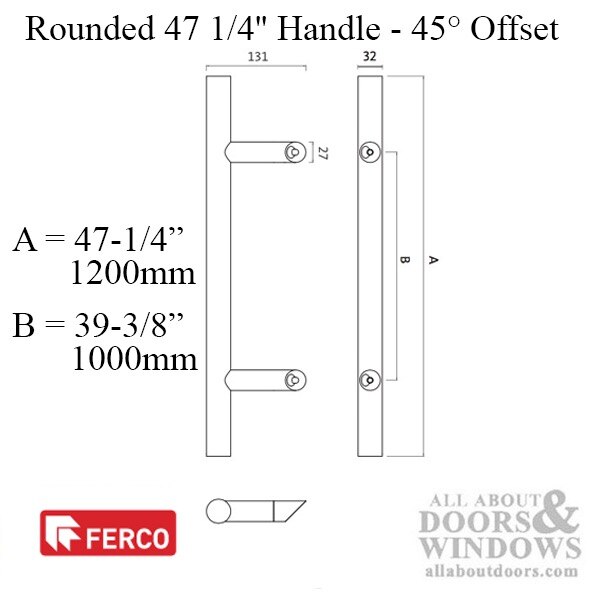

G-U Ferco Rounded 47-1/4 inch (1200mm) 45 degree Offset  Pull Handle  gives more clearance to the door jamb


Specifications:  Outside / Exterior pull bar

Part Number: B-78060-0A-0-8

Overall Length: 47-1/4 inch  (1200mm)  47.24

Screw Fixing centers: 39-3/8 inch (1000mm) 39.37

Pull Handle Diameter: 1-1/4 inch  ( 32mm)  1.259

Pull Projection: 5-3/16 inch  (131mm) 5.157


Additional information

Color: Stainless steel

Material: Stainless steel

Installation Screws:   M8 Thread


Related Pull Handle Hardware:

B-78090-10-0-8: Fastening kit for double 45 degree Offset pull bar

B-78090-11-0-8: Fastening kit for single 45 degree Offset pull bars
