Ferco Three-Way Adjustable Hinges (Box of 3 Hinges) - Choose Options

Ferco Three-Way Adjustable Hinge

Full Set of 3 for Door

Adjust to increase or decrease weather seal pressure on door panel.

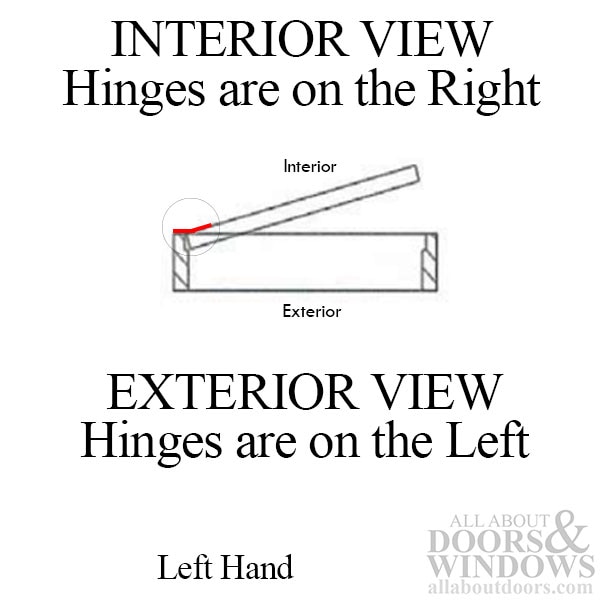

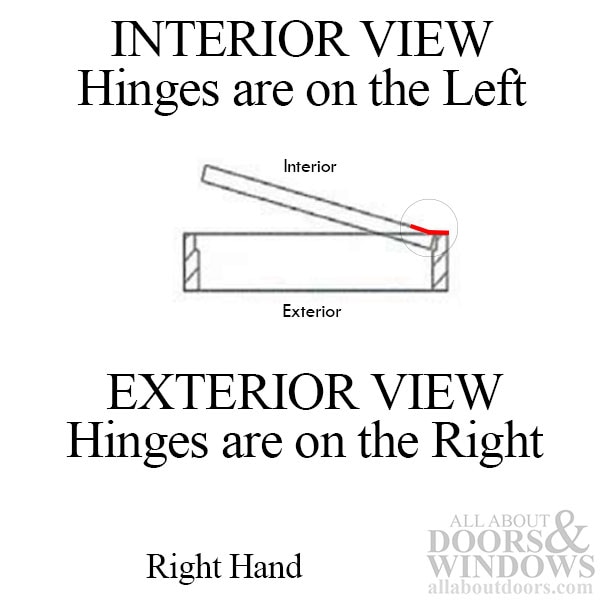

Correct handing is essential, please select the correct hinge for your left/right interior/exterior application. The door sash side leaf of the hinge sits atop the frame side leaf and uses-gravity to enforce adjustments; if installed upside-down it will not hold up the door. Choose your desired handing and color/finish.

Adjustment Bounds:

1. Horizontal Adjustment: ± 2mm
2. Vertical Adjustment: + 5mm / – 2mm

3. Compression (Frame Depth Inward/Outward) Adjustment: ± 2mm

Additional Information:

• 4" × 4" size with rounded 5/8" corners
• Made for Inswing or Outswing doors
• The adjustment can be done with the door closed, removing any adjustment guesswork
• Stainless steel construction

Includes:

• Flat head screws with Philips sockets
• Black adjustment bushing
• Allen Keys
• Recommended screws (actual sizes may vary depending on material and application):
  • #10 × 1-1/4" for door panel
  • #10 × 3/4" for frame

Related Hinges:

• 6-C8060-00 = Square / Radius Corner, 304 Stainless Steel
• 6-C8062-00 = Radius corners, 304 Stainless Steel
