Grade 1 Exit Device for Commercial Doors, 36" Easy Touch Pan

Part Number: 380322
Price:$199.95 to $199.99
The ED501 series “rim type” exit device is suitable for all doors (aluminum, hollow metal, or wood) where there is no projection on the face. It is appropriate for all heavy duty commercial and industrial applications. Fits doors up to 36″ and XL for 48″.

Specifications ED501

• UL Listed #SA32524 (mfg. SF-EDTBAR Series)

• ANSI A156.3 Grade 1

• ED-F501: UL10C Fire rated; barrier Accessories

• Non-handed

• EAK500: Alarm kit

• Door width: up to 36″

• Available in XL for 48″

• Comes with standard strike and shim

• Dogging standard ONLY on non-UL fire rated

Finish / Colors:
Aluminum (AL), Bronze (DU), Brass (US3),  Stainless Steel (US32D)

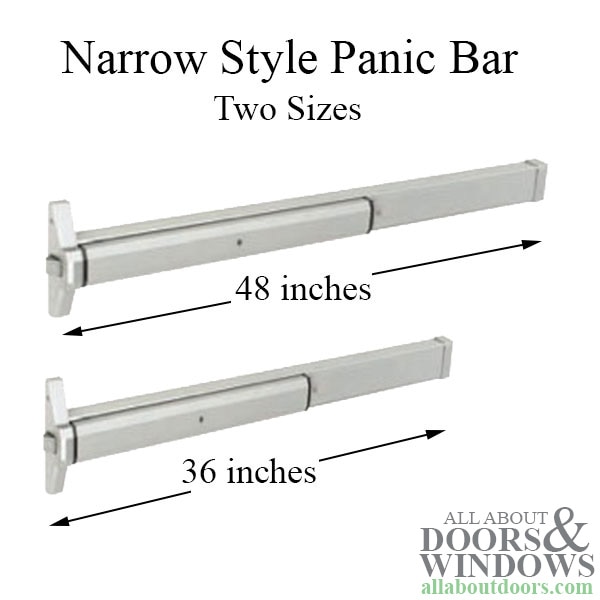

Two Widths available:
36 inch, Fits doors 30 - 36 inches wide
48 inch , Fits doors 37 - 48 inches wide

Material: Push Bar of steel material, spring of stainless steel
Latch Bolts: 3/4” throw, stainless steel
Dead Latch Bolts: 5/8”, stainless steel
Finish: Powdercoat
Strike: For 5/8” stop, plus shim for 1/2” stop
Projection: 2-1/2” maximum, 1-7/8” depressed
Reversible: Non-handed, Reversible for all functions and trims

For Doors: 1-3/4” thick standard, specify if other than 1-3/4” thick
Door Width: For door 2’6” to 3’ wide use standard 3’ wide standard;
Door Width: For door 3’1” to 4’ wide use extended 4’ wide;
Mounting Height: 40-5/16” from centerline (CL) to finished floor recommended
Check your local building codes for actual height requirements.
Dogging: 1/4 turn, hex key dogging
Operation: slight pressure on any point on the bar at all times
