European style MPL 45mm Lock System with Hooks (590 mm) - Discontinued

DISCONTINUED - limited to existing inventory

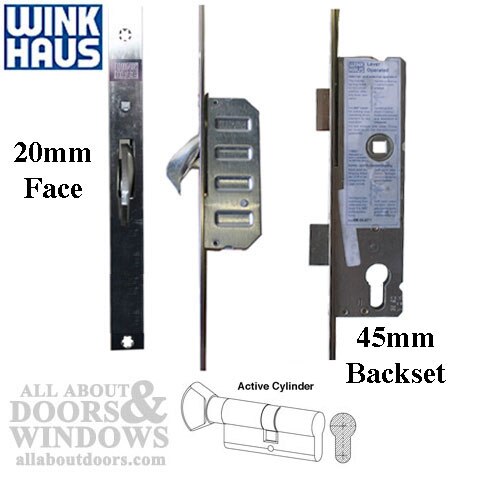

Winkhaus Euro Version Multi-point lock with hooks
Markings on Faceplate: Wink Haus 115422
All hook Measurements are from Center of Handle to center of hook

Top Hook Position: 23-1/4 inches (590mm)
Bottom Hook Location: 29-1/2 inches (750mm)
Handle Height: Cropable from 34 to 41-5/16 inches
Faceplate Color: Yellow Dichromate ( YDI)
Face Plate width: 3/4 inch (20mm)
Lock Backset: 1-3/4 inch ( 45mm)
Handle to cylinder Spacing: 3-5/8 inch (92mm)
Spindle Diamter: 5/16 inch (8mm)
Cylinder type: Euro / Profile - Standard Schlage keyway
Overall Length of lock = 82.842”

Lock is cropable at top or bottom for different door and handle heights
Desired Length = 79” 82.842 - 79 = 3.842” cutoff
Current Handle Height = 41.321” 41.321 – 3.842 = 37.479” (37.5”) New Handle Height = 37.5”
New Height of Door = 79”
Or could cut the bottom down to match the desired handle height of 36” and then use the cut off piece as a filler piece on the top of the door.
