Trilennium Eclipse Handle Set, Fixed Dummy 6" PZ

The Trilennium Eclipse Handle Set with Fixed Dummy 6" PZ is crafted for decorative use on non-operational doors. Its sleek design complements any door setup, adding an upscale touch.

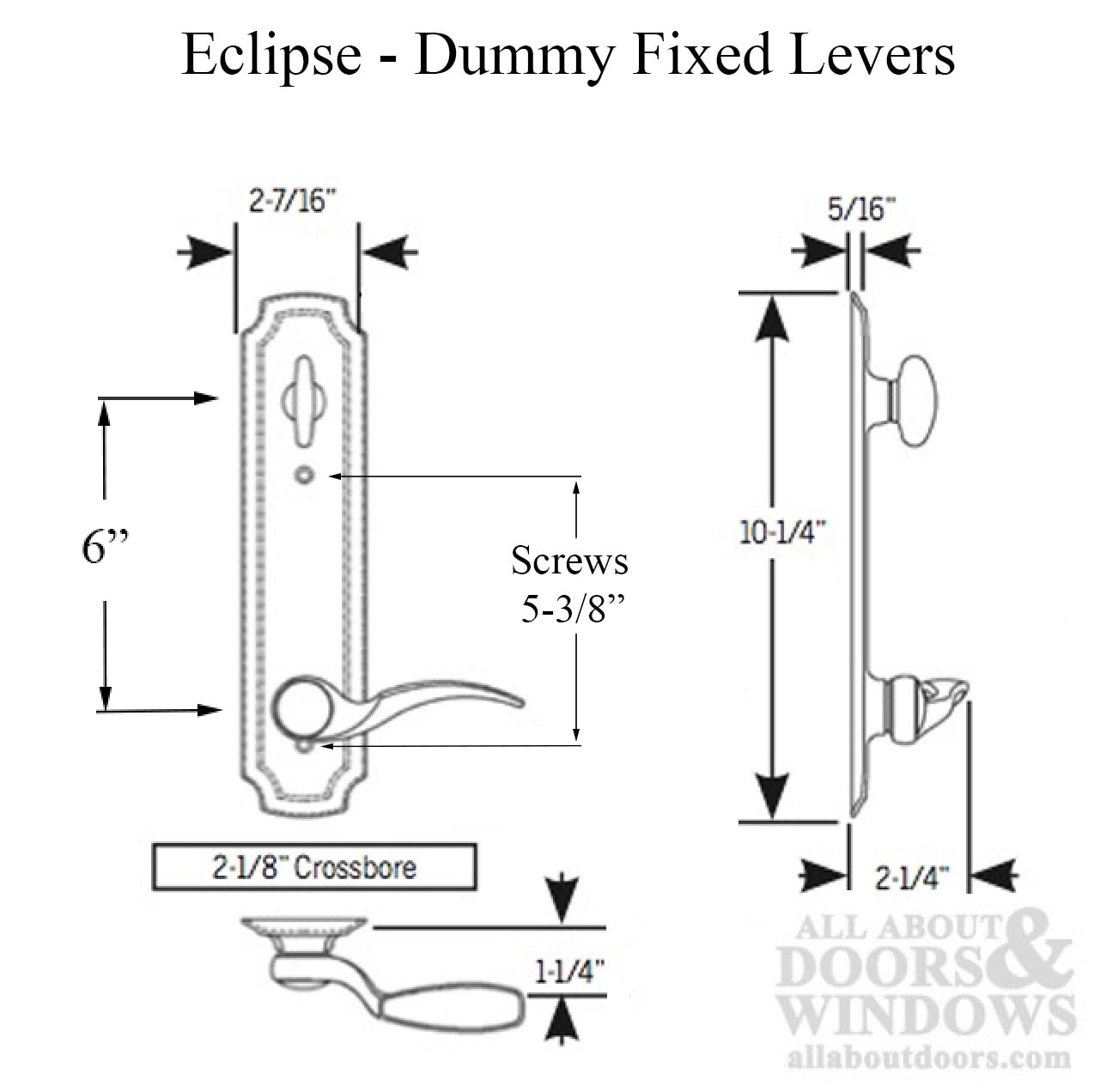

1-3/4 inch Door, Eclipse Handle Set

Function: Dummy Trim with Fixed Levers

Handle to Cylinder Centers: 6 inch (152.4mm)

Installation Screw Hole Spacing: 5-3/8 inch (136mm)

Door Thickness: 1-3/4 inch (45mm)

Escutcheon Plate Width: 2-7/16 inch (61.9mm)

Escutcheon Plate Length: 10 inch (254mm)

Color / Finishes: Choose Options

Note 1:

Standard bore on most W&F or Endura hardware is 1-11/16 inch. Some doors use a 2-1/8 inch bore. Most Multipoint lock handlesets are only 2 inches wide and will not cover the larger holes.

Cross Bore: 2-1/8 inch (Pinnacle, Eclipse & Grip Hardware)

Optional Cross Bore: 1-11/16 (Emtek & Horizon hardware)
