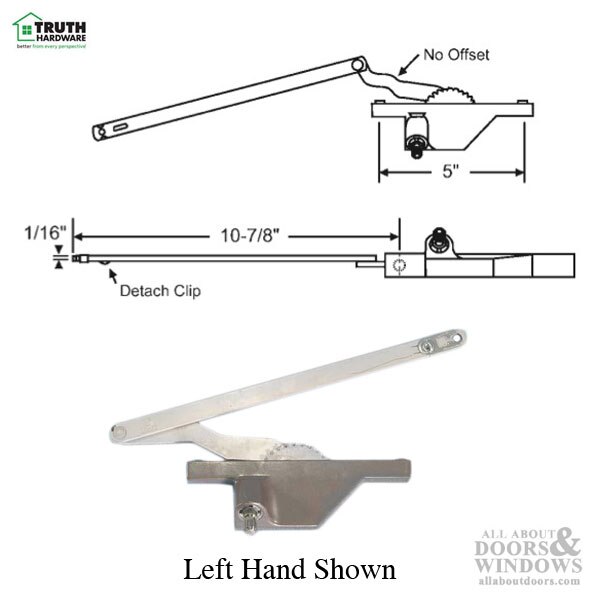

Dyad Operator, Rear Mount, 5 inch hole spacing, 10-7/8 Reach, LH

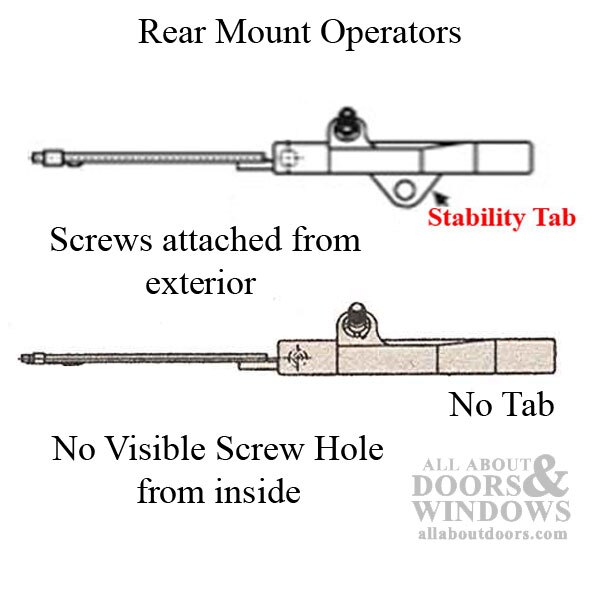

Truth rear mount casement operator for Left hand window

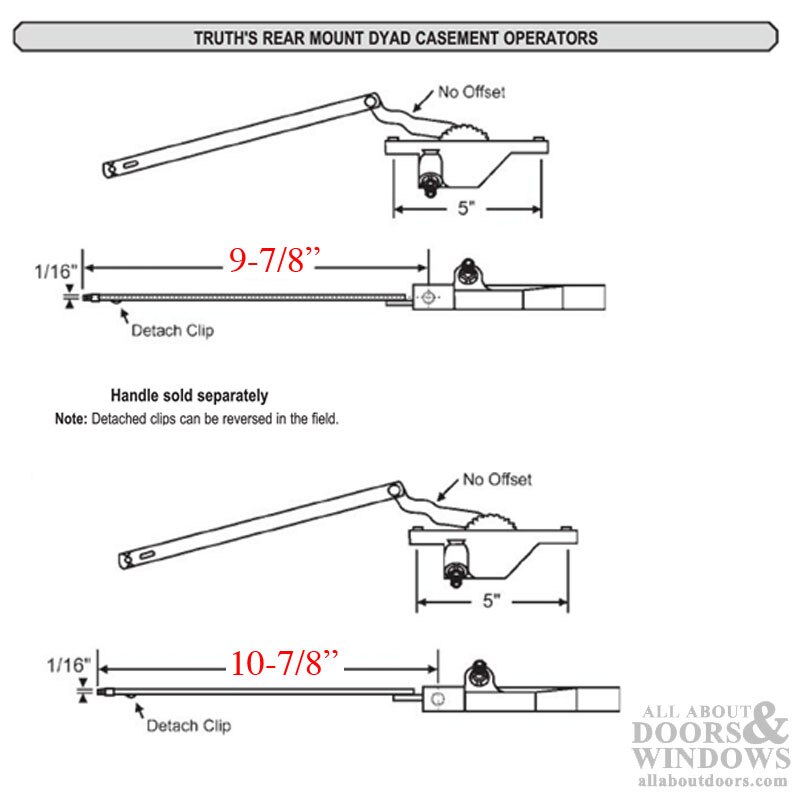

Screw Hole Spacing: 5 inch.

Long Arm: 8-3/4 inch (Truth 30616, from center of pivot pin to center of hole).

Short arm: Extends 3-7/8 inch.

Overall extended length is 10-7/8 inches

Color/Finish:  Bronze or White

Priced and sold each.

Related Hardware:

55110 - 10-7/8 inch Arm, Right Hand

55111 - 10-7/8 inch Arm , Left Hand

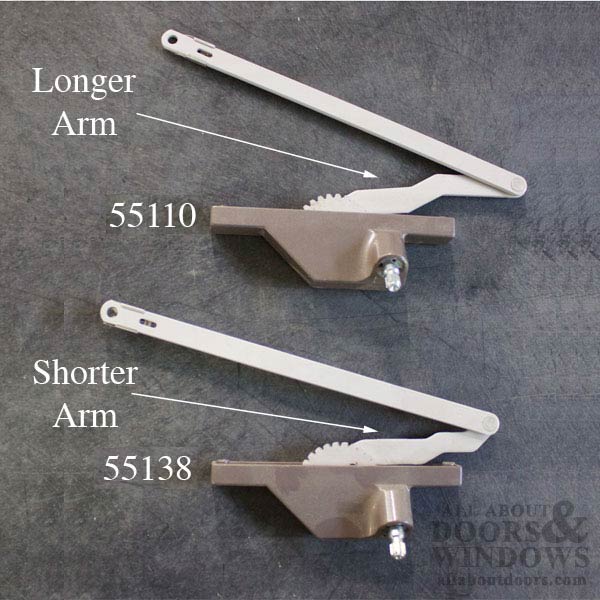

Note: 55110 & 55111 will not Replace the Acorn Operator.

Acorn has Shorter arm that extends 3-1/8.
