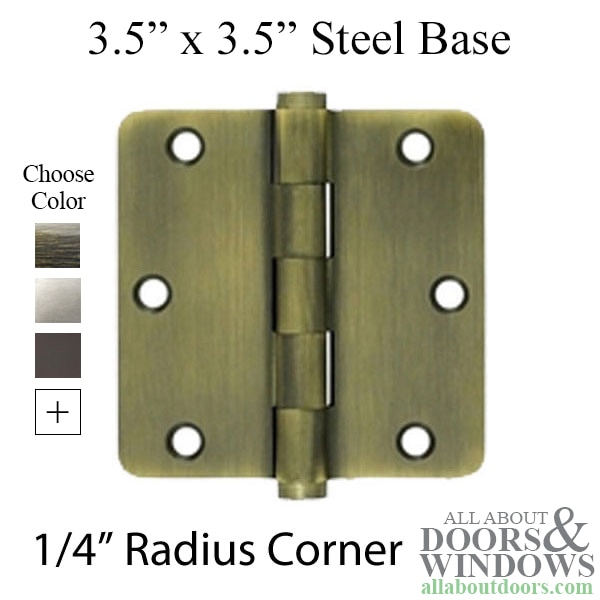

Door Hinge 3.5 x 3.5 inch, 1/4 Radius Corners, Heavy Duty, Steel - Choose Color

Part Number: 363210
Price:$21.00 to $21.51

Replaces Atrium Brand door hinge; Heavy Duty, Thick gauge 3.5 x 3.5 steel Plain Bearing with 1/4 radius corner, includes screws.
Large knuckle and pin are similar to original Atrium Door Hinge.
Color / Finish: Satin Nickel US15 finish

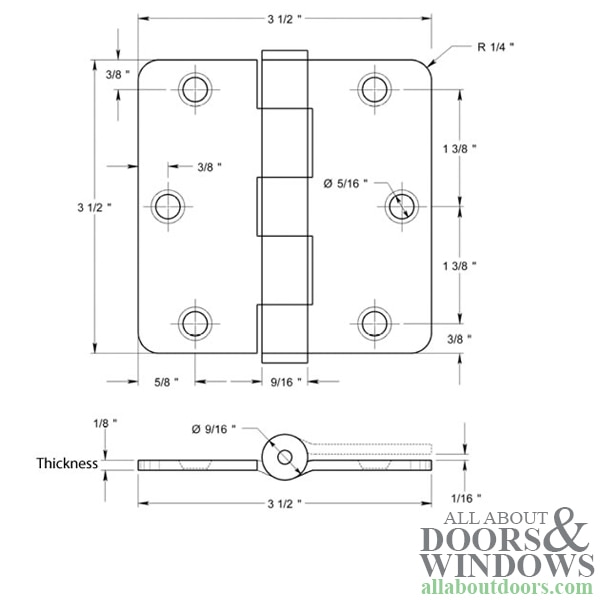

1/4 Radius Heavy Duty Hinge 3-1/2 X 3-1/2 inch
Size - 3-1/2 X 3-1/2 inch (89mm x 89mm)
Base Metal - Steel
Hinge Corners - 1/4 Radius
Thickness - 0.119 inch - approximately 1/8 inch
SOLD: Pairs, 2 hinges

Note: For a Thinner, Residential Hinge see 363543011-SN
Color / Finish - Satin Nickel

Additional Information:
Primary Usage - Heavy Duty
Wood Screw Size - 10 - 1 inch

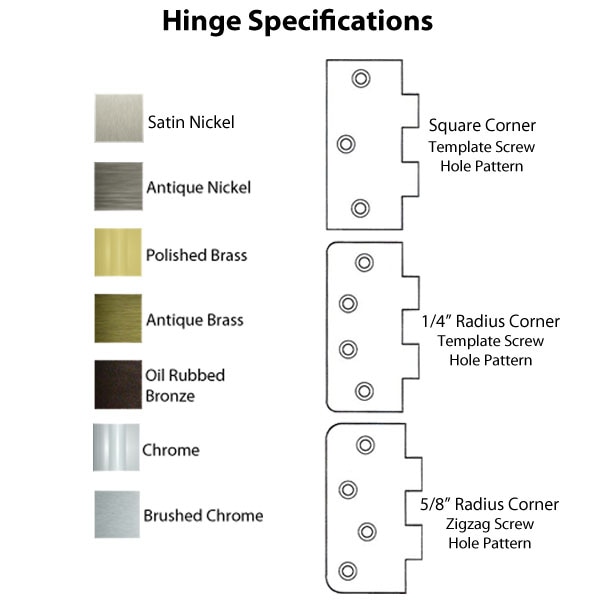

Available Finishes:

Antique Brass, Antique Nickel, Brushed Chrome, Satin Nickel, Flat Black, Oil Rubbed Bronze, Polished Brass, Polished Chrome
