Discontinued One Motion Lock, Key Above Handle, Tongue 45/92
DISCONTINUED-- Winkhaus One Motion Lock (OML) with Key above handle is not available.
Winkhaus One Motion Lock featured automatic retraction of tongues and deadbolt when handle is depressed.
Winkhaus Multipoint Lock hardware has several available options, Please fill out worksheet and forward to office.

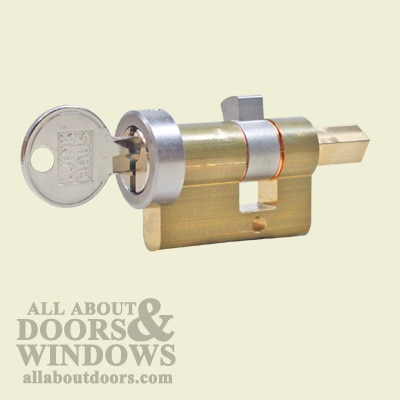

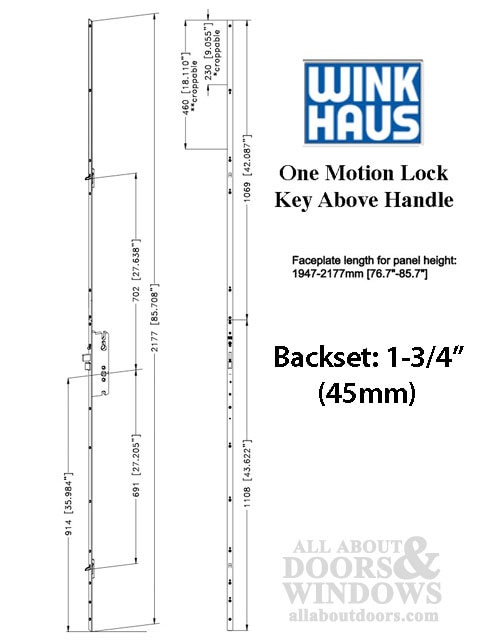

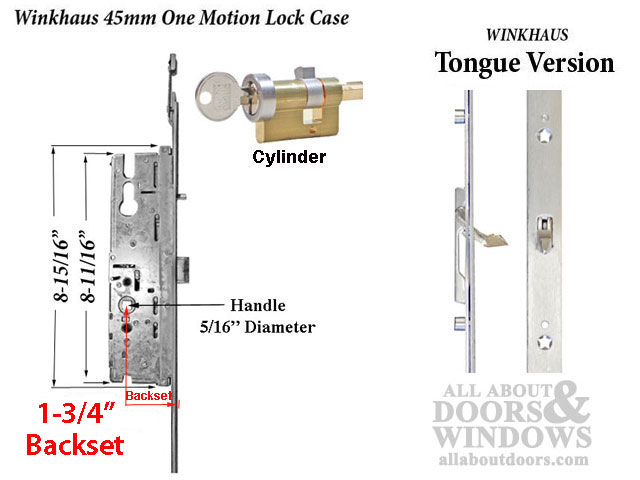

Features - Dimensions:
Key Position: Key Above Handle
Locking devices: Tongue type Lock (7/8 inch Projection)
Faceplate Width: 5/8 inch ( 16 mm)
Faceplate Length: 76-1/4 inch ( same as door panel - No Sweep )
Faceplate support Pins: Project 3/8 inch or 1/2 inch with faceplate
Handle height: 36 inch
Handle / Cylinder PZ: 3-5/8 inches ( 92 mm)
Spring Latch 13/16 above center of handle - 3-1/16 to top of Deadbolt Latch
Overall Door Panel Height: 93-5/8 inches
Backset: 1-3/4 inch ( 45 mm)
Top Tongue position: 27.6 inches (702 mm) 6-8 Door and 36.62 inch ? on 8-0 Door
Bottom Tongue Position: 27.2 inches (691 mm)
Tongue Projection: 7/8 inch
Note: Your door may have different measurements.
To re-hand Winkhaus multipoint locks, read our article.
Priced and sold each.
