DISCONTUNUED Weiser Bolt Latch, Combo Deadbolt & Spring Latch, 2-3/4 Backset, Square Face, 1" Bolt

Part Number: 4804030
Price: See Description

This product has been discontinued and is no longer available


Weiserbolt by Weiser Lock - Spring latch becomes a deadbolt latch
Latch Type: Combination Spring latch and Deadbolt
Latch has a standard 1/2 inch throw spring latch that becomes a deadbolt by an additional turn of the key;
Backset: 2-3/4 inch
Square Face Plate
Provides Deadbolt Security when door has only one hole drilled.
Finish/ Color: brass finish.
Weiser had an early model Weiserbolt that was a spring latch with a bevel , when extended became a deadbolt
The current model is a deadbolt that is spring loaded and becomes rigid when extended
As far as I know both can be used for inswing or outswing doors

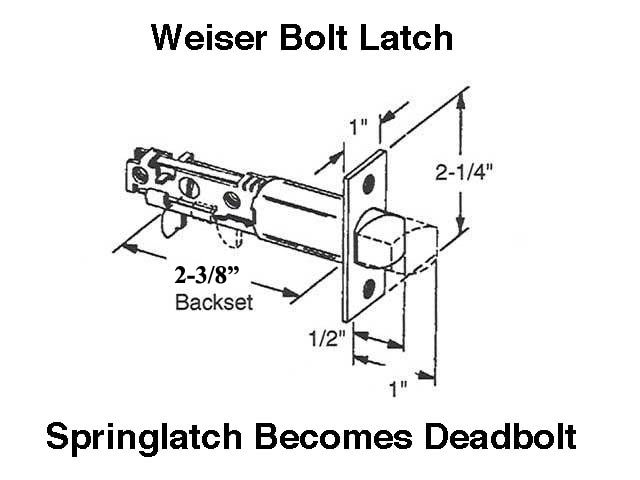

The old style was 2-3/8 or 2-3/4 ( Line Drawing)
The new style latch is adjustable for both backsets ( color Pictures)
The latch can be inverted on the old or new style to change handing

This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: E 2269
