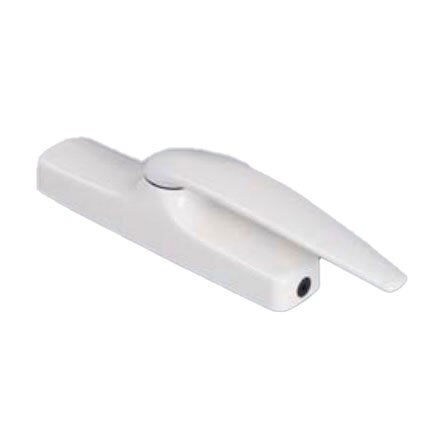

Cremonese Dual Blade 104-108mm Screw Centers
Low Profile Handle for internal and external Window, Shutter or Door handles with Dual Blades with bracket mounting screws and one screw that attaches to the underside when connecting handle with bracket
Application: Hinged Doors or Windows
Handle Rotation: 90 degrees
Handed: Yes, but blades may be repositioned for opposite handing

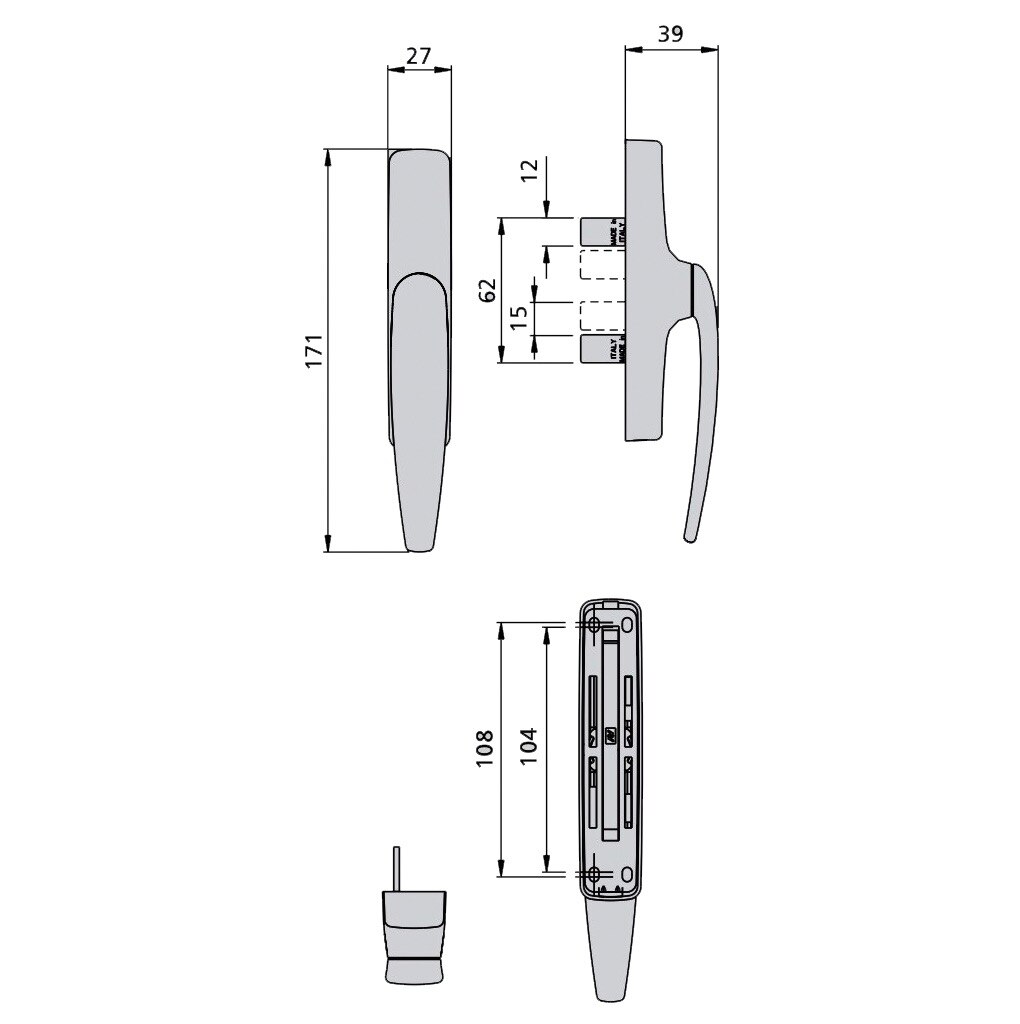

Overall Length: 6-5/8 inch
Projection: 1-1/2 inch
Base Width: 1 inch
Base Length: 5 inch
Installation Screw Holes: Top to Bottom 4-1/8 inch (104 -108mm) slotted hole
Blade Minimum Exterior Spread: 1-1/4
Blade Maximum Exterior Spread: 2-3/8

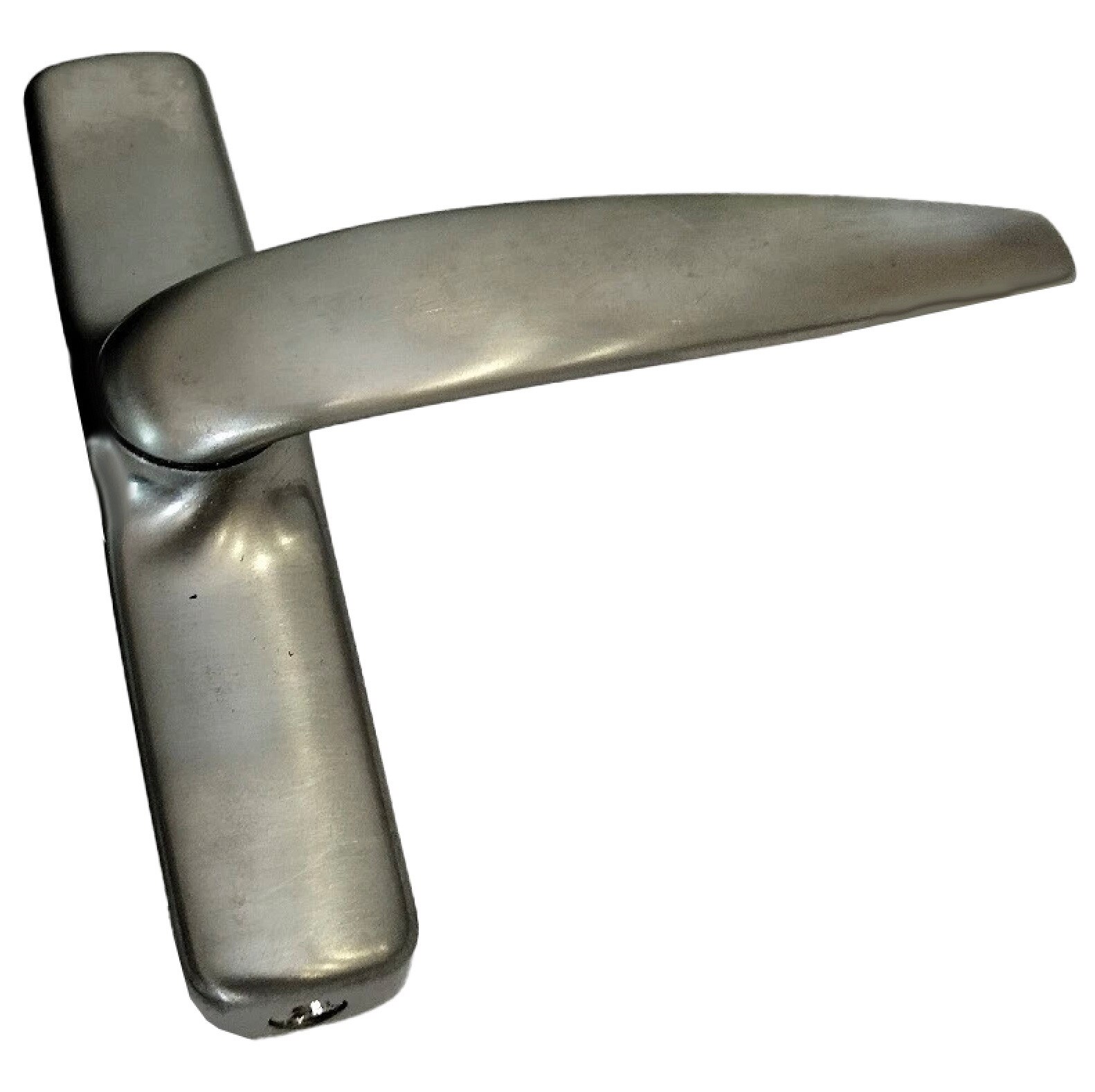

Color / Finish: PVD Stainless Silver
Additional Information:
(patented) Die-cast metal handle for shutters, for external and internal openings, centre distances 104-108

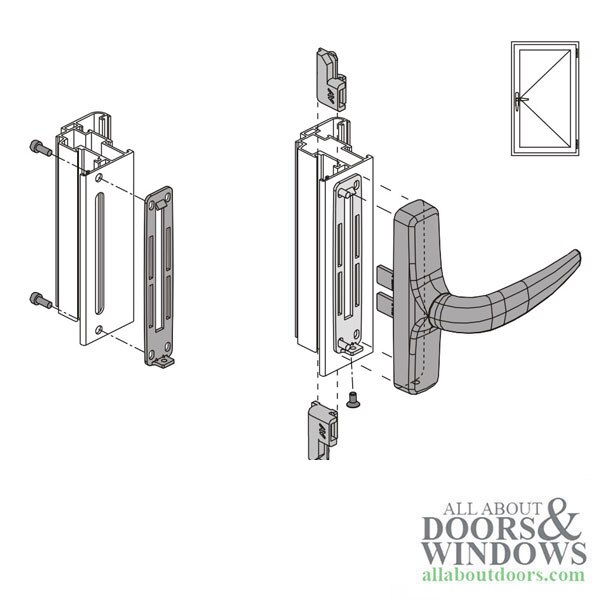

, 2 subscrew plates, 2 socket head cap screws M4x10 and 2 nuts of galvanized steel (PVD X and PVD H: packaging 5 pcs.).
The handle will rotate 360 degrees when blades are removed, then reposition lever and reinstall the blades to set up for the opposite handing.
NOTE: Screw hole spacing and spread on the dual blade operators vary by brand and model
