Blemished Multi-point Sash Lock, 1-1/8 Non-Handed - Beige
Blemished Multi-point Sash Lock, 1-1/8 Non-Handed - Beige
This item is considered blemished and may include but is not limited to slight scuffs, scratches, and/or missing components such as screws.
Blemished items are priced accordingly and are sold as is.
No returns, refunds, or exchanges.
Used in Tie Bar Applications.
Non-Handed,Reversible, used for Left or Right handed windows.

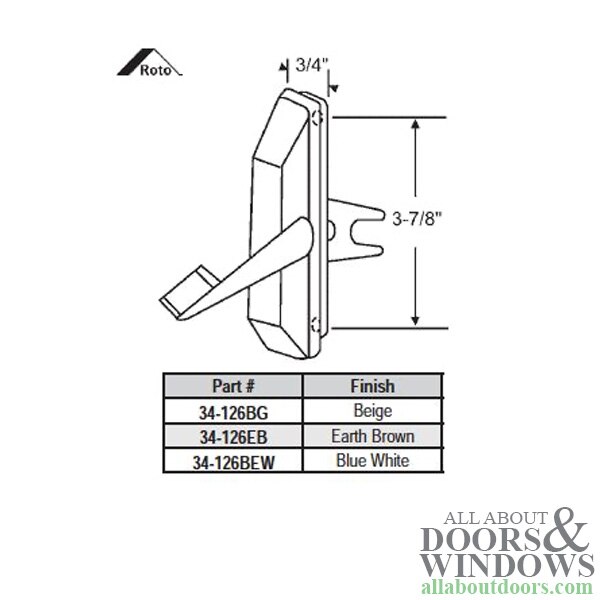

3-7/8 inch Screw hole Spacing. 1-1/8 Hook Projection
Roto Hardware Reversible, non-handed multi point casement sash lock, used primarily with New construction and replacement vinyl windows.
Sash Lock Used in Tie Bar Applications where it locks window sash in more than one place.
Non-Handed, used for Left or Right handed windows.
Base measures: 3/4 x 4-9/16 inch
Screw hole Spacing: 3-7/8 inch
The fork extends 1-1/8 inches from housing; 1-3/8 from base
Color: Beige
Used by Great Lakes, Columbia and others
This can be replaced with new contoured style #55659
NOTE:
1. Uses 6 x 3/4 PH Self Tapping Screw, If holes are not threaded
2. Replacement part number 55659 does not have threads and installation requires a self tapping screw.
