Atrium/Ferco 528 Handle Set 7mm Spindle Long Backplate

Atrium/Ferco 528 Handle Set 7mm Spindle Long Backplate

Atrium Door lock hardware, Ferco 528 Multi-Point Lock replacement handles
Longer Backplate than standard size, aluminum construction
Specially sized for Atrium swing door using the Ferco 528 lock hardware.

PZ and Spindle Measurements:
The Ferco 528 had a special handle to cylinder spacing (PZ) of 2-3/4" (70mm)
Most locks have a 3-5/8 (92 mm) spacing.
The Old Style 528 used a 5/16 inch (8mm) diameter spindle
This replacement handle uses 1/4 inch (7mm) spindle

If your door lock is the Old Style Atrium Ferco 528 Compare measurements to be sure it will work

Note you may need part number E-91440-00-0-0 to convert the spindle from 7mm to 8mm in your lock hub.

Handle Spacing: 2-3/4 inches (70 mm) center of handle to center of lock cylinder.
Spindle: 9/32 (7 mm) square (not included) See part 9-26874-56-0-FG

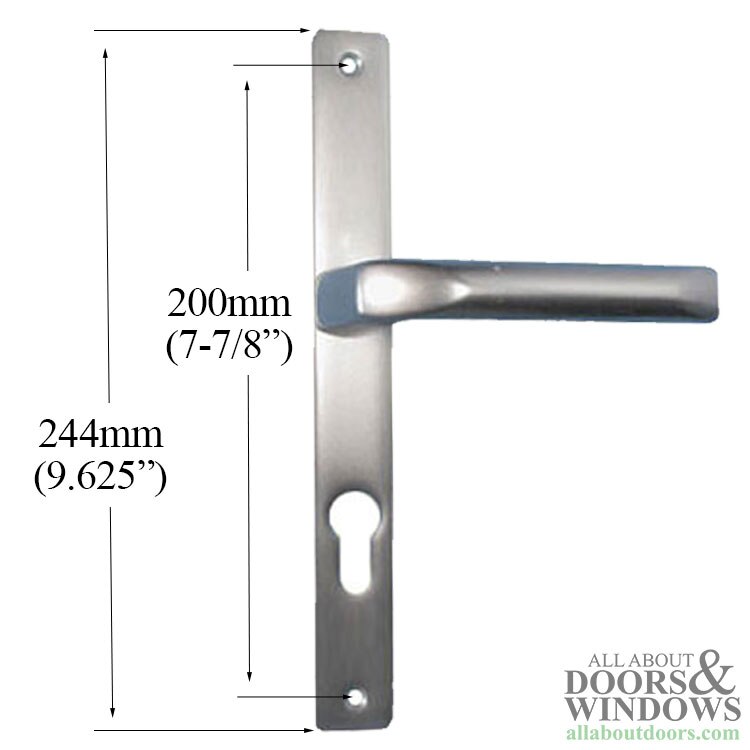

Screw Holes: 7-7/8 inch; stud posts/screws hole - center to center
Screws: M5 x 50mm (not included) See part 40171
Plate Width: 1.06 inches (27mm)
Plate Length: 9-5/8 inches (244mm)
Plate Thickness: 5/16 inch (8mm)
Material: Aluminum
Installation screws spaced at 7-7/8 inch.

Available Colors: Silver, White, Gold

Priced and sold as inside and outside trim, as shown

Keyed Cylinder NOT included - but can be ordered separately
Uses cylinder 413232030
