Andersen Storm Door Lock Case Lock Body Only Left Handed 4000 Series Lock
SKU: 306029
$53.73 / Each
Details

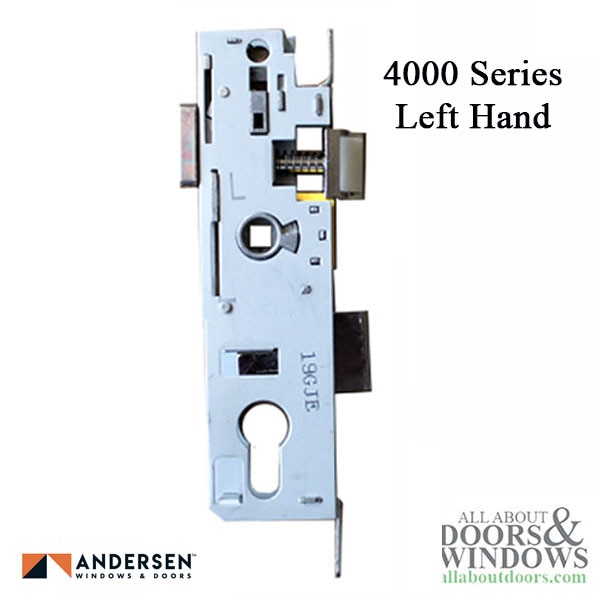

Andersen 4000 Series Storm Door Lock case, Body Only, No Faceplate, Left Hand
Special, NO faceplate, Andersen / Emco Replacement Mortise lock used with 4000 Series Full view Quick Change Glass and screen inserts. The 4000 series storm door has a button above the handle. To replace glass the button is pushed up and the lever is lifted to a vertical position. Remove Glass or Screen panel to change
Specifications:
- Lock Application:4000 Series Quick Change System, Full View Storm Door
- Handed: Left Handed
- Markings on Lock Case: Black nylon guide below latch, L or R on metal
- Cylinder Type: Euro Profile
- Backset: 7/8 Inch
- Screw Hole Spacing: 7 Inches
- Deadbolt Throw: 1/2 Inch
- Cylinder to Handle PZ: 2-1/2 Inches
- Contents: Lock Case and Screws, No Faceplate
NOTE: Handing determined from Outside, IF handle set on the right is Right Hand, When handle set on the left is Left Hand.
Additional Information

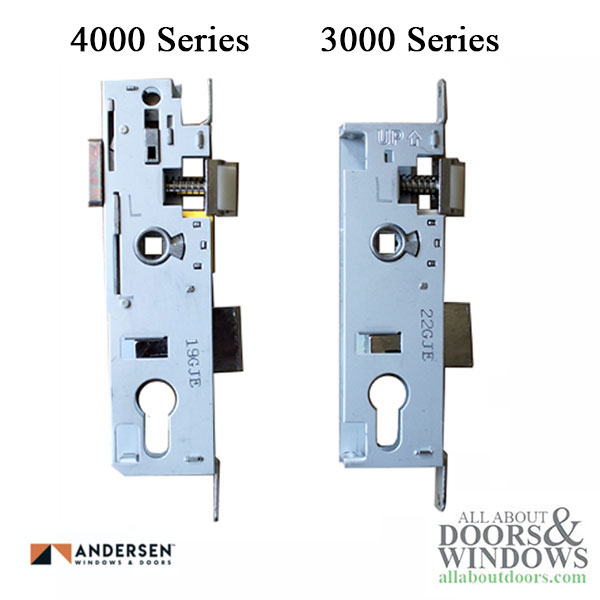

Difference between Andersen 3000 and Andersen 4000 storm doors is the glass-to-screen switching mechanism on the interchangeable models. Andersen 4000 Series uses tool-free Quick Change System that swaps panels in under a minute via a handle lock Andersen 3000 Series requires snapping plastic retainer strips in and out. Both feature heavy-duty 1-1/2" aluminum frame Material.
