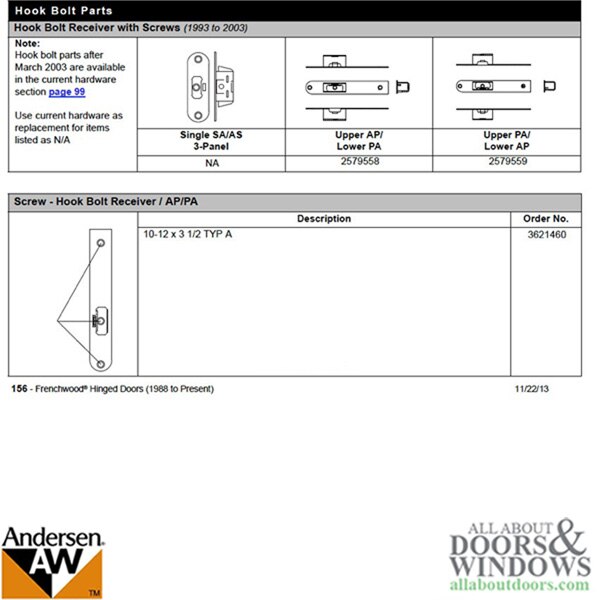

Andersen Hook Bolt Receiver - Upper AP/ Lower PA , FWH Door 1993-2003

Part Number: 2579558
Price: $10.77
Andersen Frenchwood Hinged Patio Door Hook Bolt Receiver.
Handed: Yes - Fits upper for Active / Passive (A/P) Doors, Lower Passive / Active (P/A)
Active door is determined from outside, Left to Right.
If the active door is on the left, it is A/P
If the Active door is on the Right, it is P/A

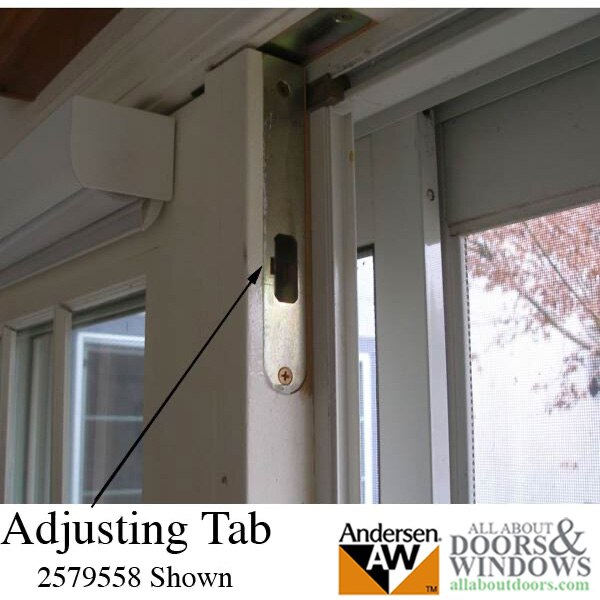

Adjustable: Yes, Insert screw driver in tab and bend in or out as needed for tight fit.

Years in Service: 1993-2003

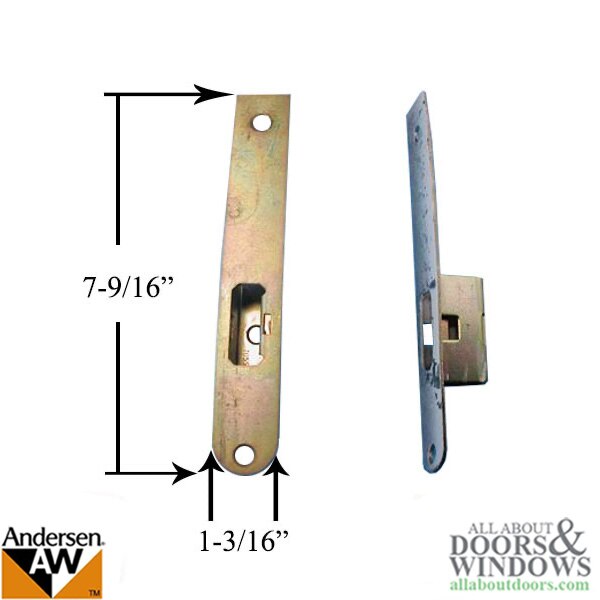

Faceplate Width: 1-3/16 inch
Faceplate Height: 7-9/16 inch.
Amerock part number: 7055-49 / 7077-4.
Priced and sold each.

Related Andersen Hinge Patio Door Parts:
For Outswing Door:
2579788 - Hook Bolt Receiver: Head AP / Sill PA
2579789 - Hook Bolt Receiver: Head PA / Sill AP
2579884 - Flush Bolt Receivers: Head PA/Sill AP
2579883 - Flush Bolt Receivers: Head AP/Sill PA
2579402 - Latch Receiver Blocker:
2579786 - Lock Mechanism Blocker Cap:

For Inswing Door:
2579558 - Hook Bolt Receiver: Upper AP / Lower PA
2579559 - Hook Bolt Receiver: Upper PA/ Lower AP
2579560 - Flush Bolt Receiver: Head
2579561 - Flush Bolt Receiver: Sill

2579555 - Latch Receiver Blocker Housing: Part 1
2579539 - Latch Receiver Blocker Insert Part 2

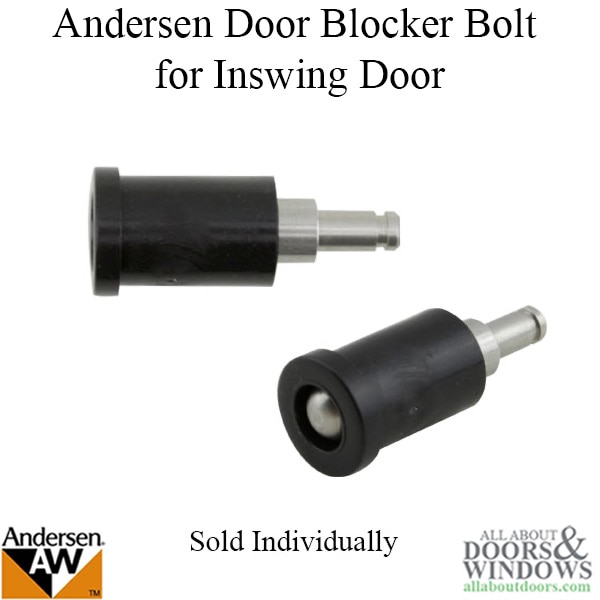

2579780 - Lock Mechanism Blocker Cap:
