62-716 Series Inverted Tilt Channel Balance with #36 Clip Attached

Price:$16.58 to $79.95
Part Number: 62716-36
Price:$16.58 to $79.95
Inverted 1/2 inch by 1/2 inch Tilt Channel Balance, used with Vinyl windows. Select the tilt shoe from the assorted sizes. See instructions below.

***All of these balances are special order 4-5 week lead time. No RETURNS / EXCHANGES / CANCELLATIONS***

Clip Type Note: we have found that if you use #19 clip it will work for all others. It can be screwed at the top of window and holds better than some of the other clips.

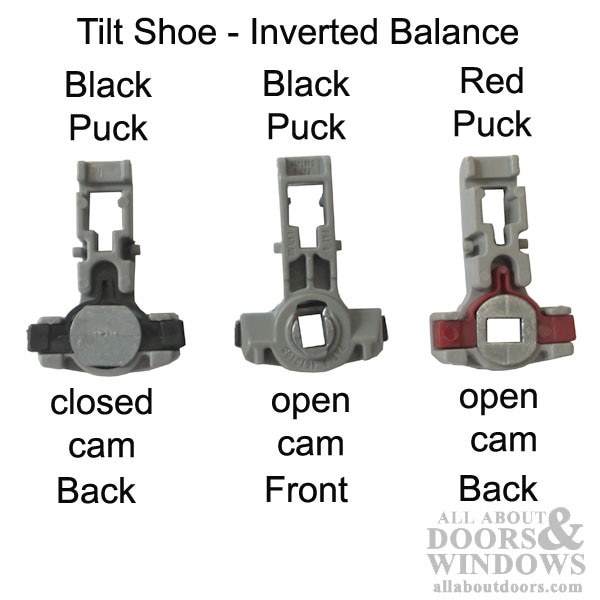

Tilt Shoe Note: The color of the puck does not matter, only the size. The closed cam and open cam are interchangeable

ORDERING INFORMATION:

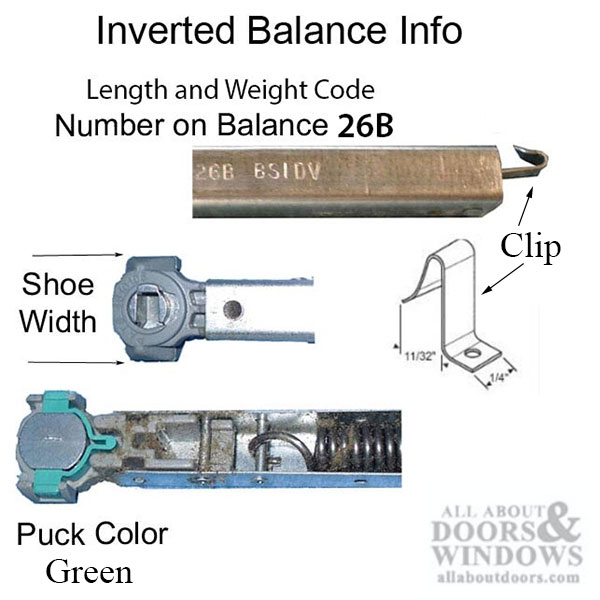

1. Measure metal channel length (do not include any attached ends). The numbers are the length of the metal channel balance. Check number stamped on metal channel (i.e. 27B, 33C, Etc.). The number should match the length of the balance.

2. The letter refers to the weight code. Your balance may be marked with two numbers, such as 2420, or it may also be marked with just one number or letter, such as a, b, c, d, e, or 1, 2, 3, 4, 5. See addition images.

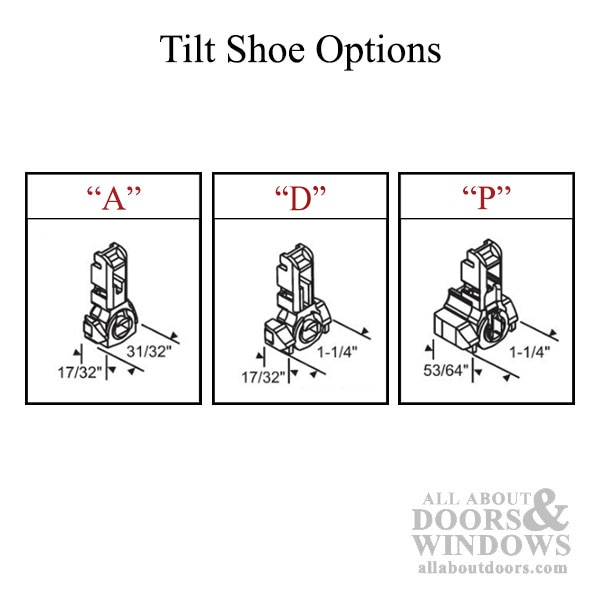

3. Select Tilt Shoe from available choices. See 4th image.

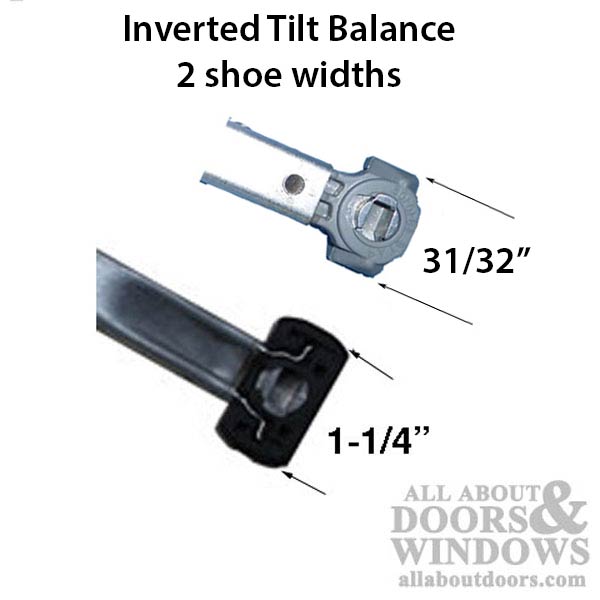

"A" : 31/32" wide x 17/32" deep.
"D" : 1-1/4" wide x 17/32" deep.
"P" : 1-1/4" wide x 53/64" deep.
