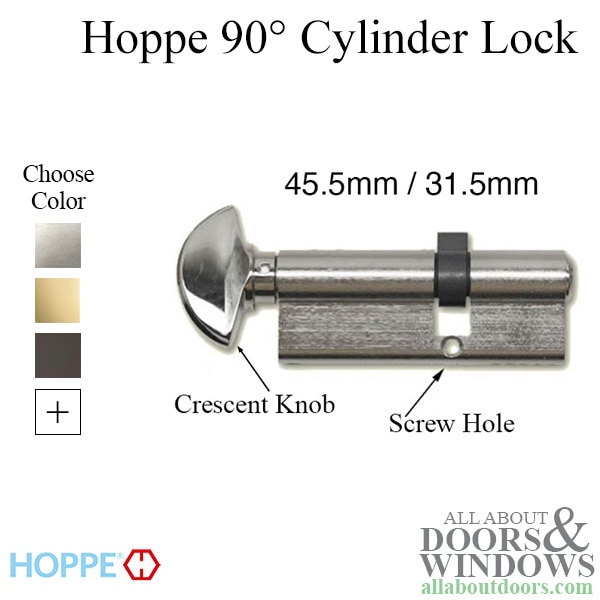

New style 90 degree HOPPE non-logo profile keyed cylinder with crescent knob.
Used on doors that are 2-1/8 to 3 inches thick.

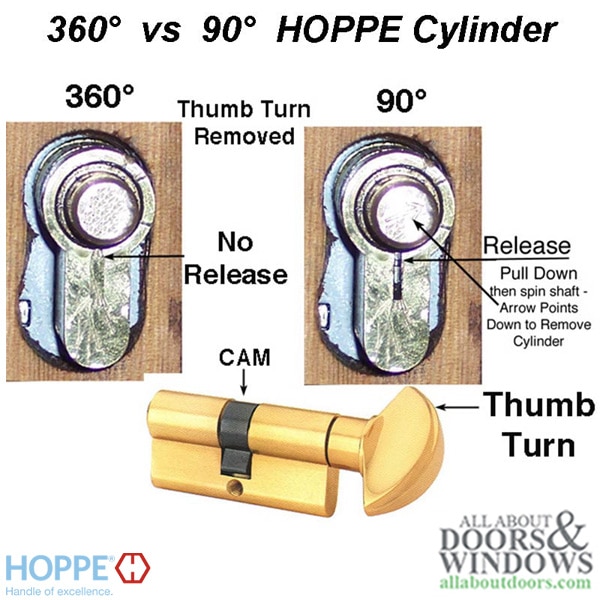

The new style 90 degree allows homeowner to look at thumb turn and know if door is locked or unlocked.
This cylinder can be converted to a 360 degree cylinder.Measurements:

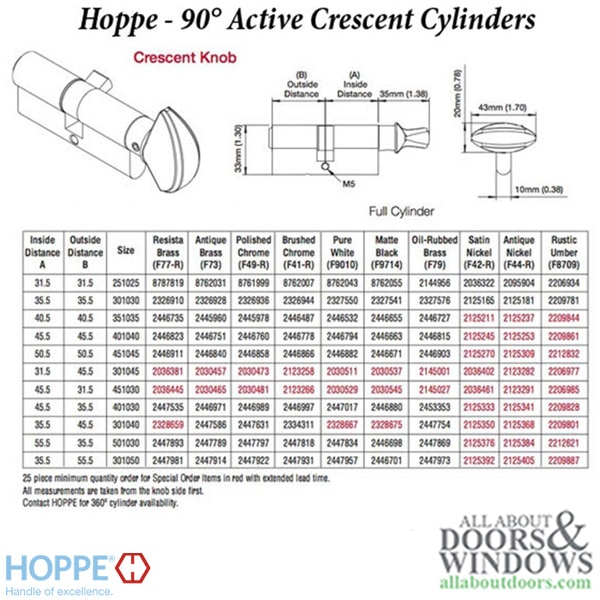

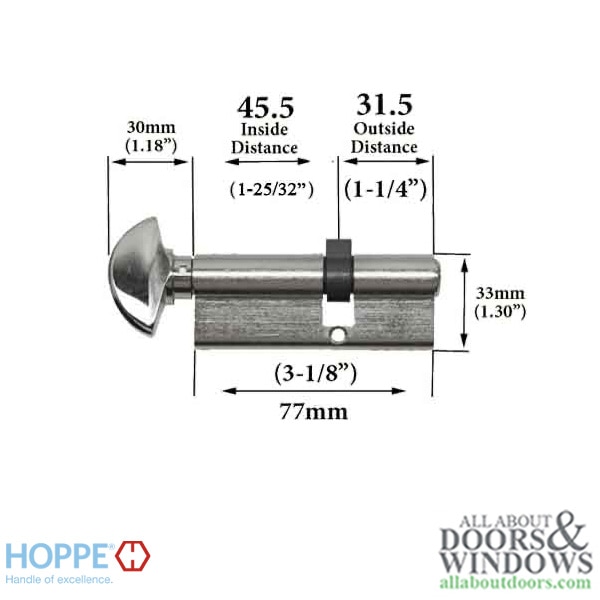

Inside Distance = 1-25/36 inch (45.5 mm)
Outside Distance = 1-1/4 inch (31.5 mm)
Overall (inside + outside) = 3-1/8 inches (77 mm)Installation Instructions:

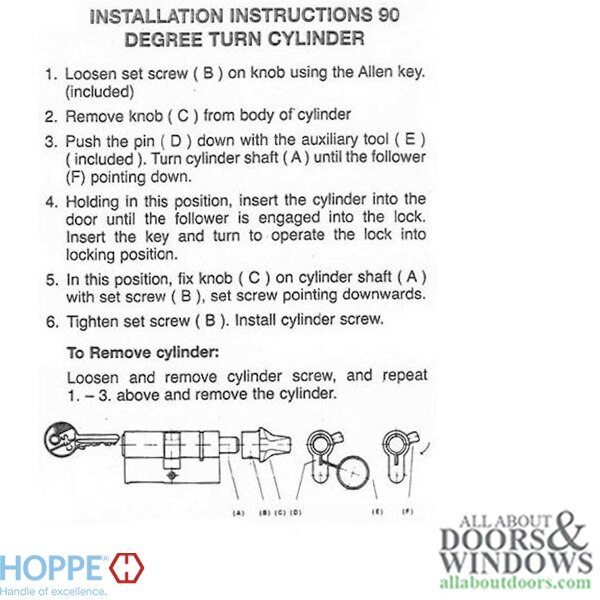

1. Remove Thumb Turn

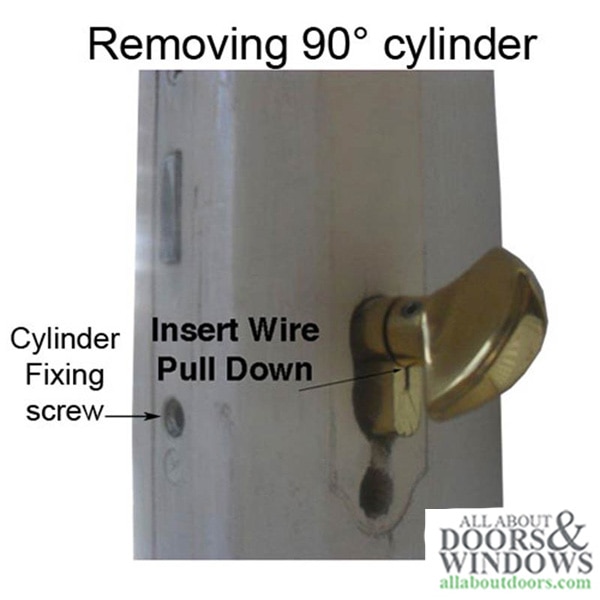

2. Insert Aux. Tool and pull down on Release Tab
3. Turn cam and insert into lock.

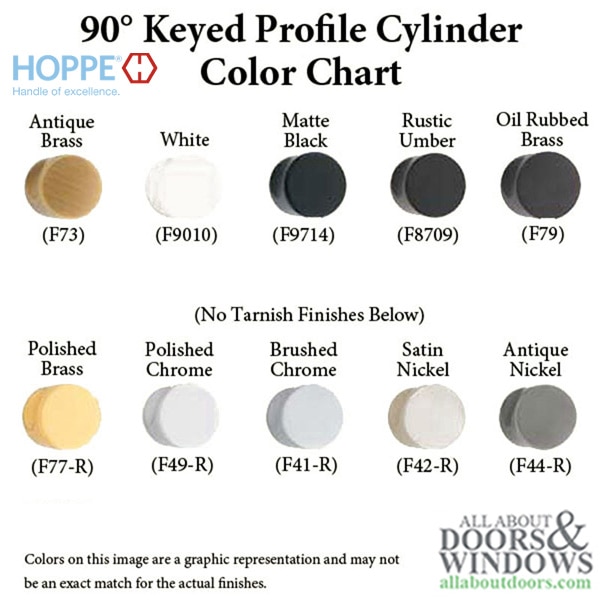

4. Replace Thumb turn.Color/Finish Options:
Rustic Umber (F8709)
Oil Rubbed Brass (F79)
Resista no-tarnish finishes:
Polished Brass (F77-R)
Satin Nickel (F42-R)Note:
Some colors may be special order, resulting in longer shipping times.Article:HOPPE Cylinder Installation and Rekeying
