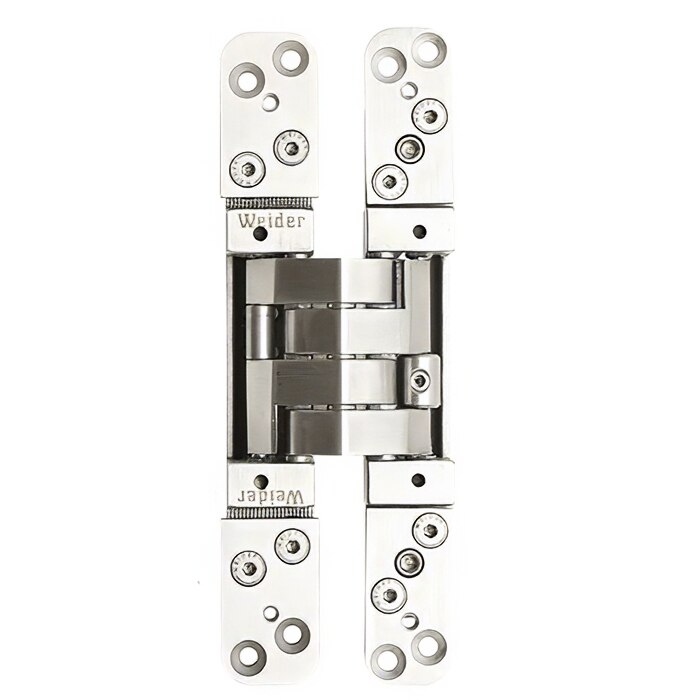

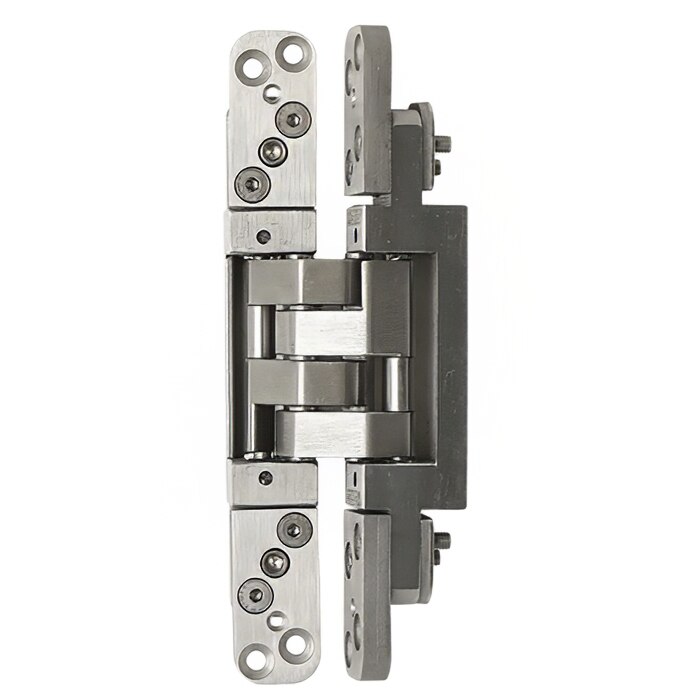

3D Adjustable Concealed Hinge, Stainless Steel
Crafted in 304 grade Stainless Steel.
For flush and rabbeted flush doors.
For doors up to 160kg (352 lbs).
For wood, steel, and aluminum doors and frames.
3D adjustments for height, compression (to frame), and side (to plumb the door).
Soft-close hinge with hydraulic function and constant rate of speed in closing (adjustable closing range of 3-5 seconds)..
Hold-Open & Self-Closing functions can be used on the same door!.
Hold open hinge also functions as a stop (i.e. after opening degree is set, it won’t open past that point).
Hold open range: 75-180 degrees.
Jigs and templates available.
Compatible with standard 1¾” door thickness.
Wood doors: 1.26” (32mm) min thickness. Metal doors: 1.10” (28mm) min thickness.
For flush and rabbeted flush doors.
For doors up to 160kg (352 lbs).
For wood, steel, and aluminum doors and frames.
3D adjustments for height, compression (to frame), and side (to plumb the door).
Soft-close hinge with hydraulic function and constant rate of speed in closing (adjustable closing range of 3-5 seconds)..
Hold-Open & Self-Closing functions can be used on the same door!.
Hold open hinge also functions as a stop (i.e. after opening degree is set, it won’t open past that point).
Hold open range: 75-180 degrees.
Jigs and templates available.
Compatible with standard 1¾” door thickness.
Wood doors: 1.26” (32mm) min thickness. Metal doors: 1.10” (28mm) min thickness.
Minimum door thickness is 1-3/4"
Note: Use 2-3 For free swinging sash
Use with 3DX-160-SC or 3DX-160-HO for added features
Routing jig and tempates sold seperately
Note: Use 2-3 For free swinging sash
Use with 3DX-160-SC or 3DX-160-HO for added features
Routing jig and tempates sold seperately
