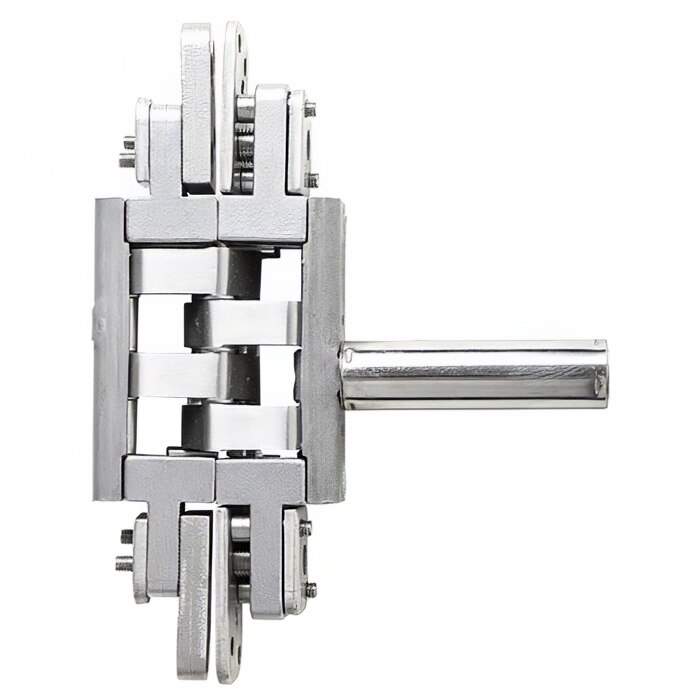

3D Adjustable Concealed Hinge - 80kg Self-Close Function, Stainless Steel
Crafted in 304 grade Stainless Steel.
For flush and rabbeted flush doors.
For doors up to 120kg (264 lbs).
For wood, steel, and aluminum doors and frames.
3D adjustments for height, compression (to frame), and side (to plumb the door).
Soft-close hinge with hydraulic function and constant rate of speed in closing (adjustable closing range of 3-5 seconds)..
Hold-Open & Self-Closing functions can be used on the same door!.
Hold open hinge also functions as a stop (i.e. after opening degree is set, it won’t open past that point).
Hold open range: 75-180 degrees.
Jigs and templates available.
Compatible with standard 1¾” door thickness.
Wood doors: 1.26” (32mm) min thickness. Metal doors: 1.10” (28mm) min thickness..
Self closing actuator for doors up to 60KG - 80KG
For flush and rabbeted flush doors.
For doors up to 120kg (264 lbs).
For wood, steel, and aluminum doors and frames.
3D adjustments for height, compression (to frame), and side (to plumb the door).
Soft-close hinge with hydraulic function and constant rate of speed in closing (adjustable closing range of 3-5 seconds)..
Hold-Open & Self-Closing functions can be used on the same door!.
Hold open hinge also functions as a stop (i.e. after opening degree is set, it won’t open past that point).
Hold open range: 75-180 degrees.
Jigs and templates available.
Compatible with standard 1¾” door thickness.
Wood doors: 1.26” (32mm) min thickness. Metal doors: 1.10” (28mm) min thickness..
Self closing actuator for doors up to 60KG - 80KG
Minimum door thickness is 1-3/4"
Note:Use with 3DX-120 and/or 3DX-120-HO for added features
Routing jig and tempates sold seperately
Note:Use with 3DX-120 and/or 3DX-120-HO for added features
Routing jig and tempates sold seperately
