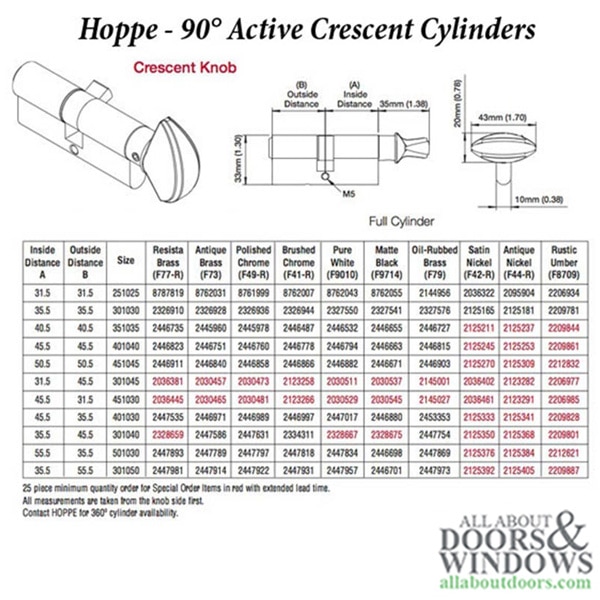

31.5/31.5 HOPPE Non Logo 90° Keyed Profile Cylinder Lock, Solid Brass

New Style 90° HOPPE Profile Cylinder with Crescent Knob
Used on doors that are 1-3/4 thick, Schlage Keyway

Overall housing Length: 31.5mm / 31.5mm ( 2-1/2 inch)

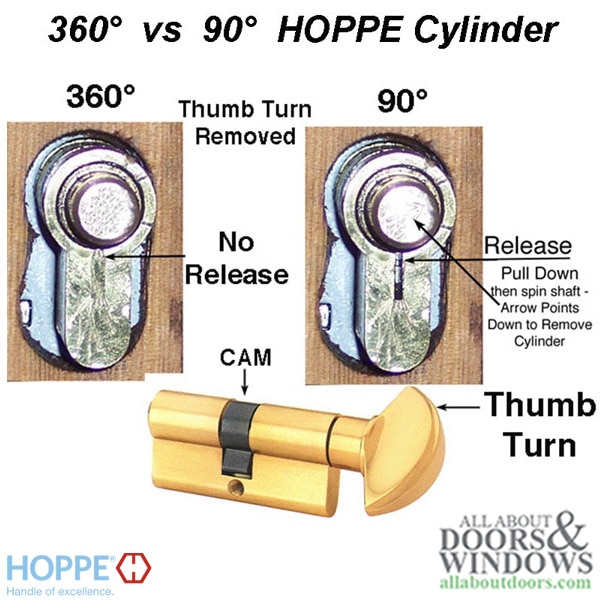

The New Style 90 degree allows homeowner to look at thumb turn and know if door is locked or unlocked.
This cylinder can be converted into a 360 degree cylinder.
This Cylinder is for a typical 1-3/4 inch thick door.

Some finishes are a Resista, No-Tarnish Finish

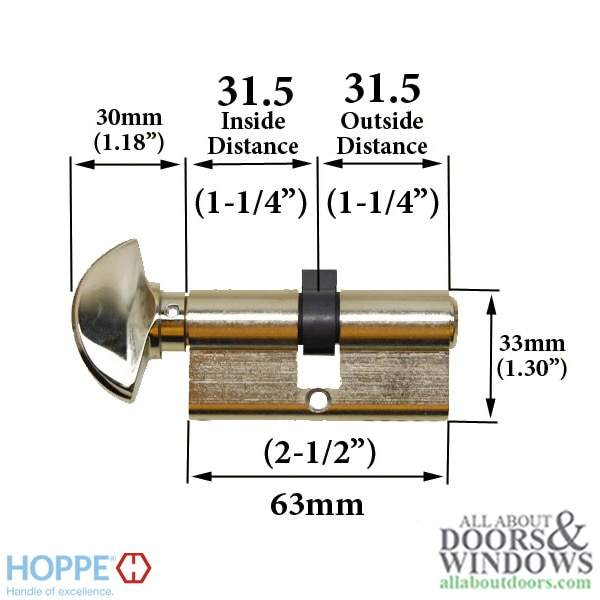

Measurements:
Inside Distance = 1-1/4 inch (31.5mm)
Outside Distance = 1-1/4 inch (31.5mm)
Overall (inside + outside) = 2-1/2 inches (63mm)

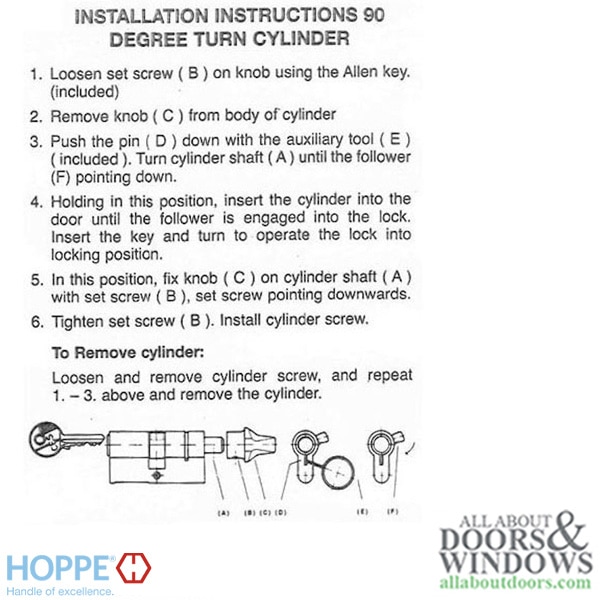

Installation Instructions:

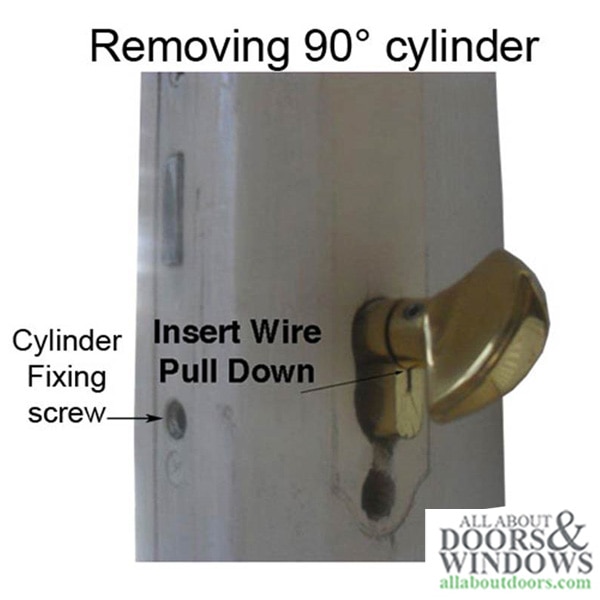

1. Remove Thumb Turn
2. Insert Aux. Tool and pull down on Release Tab
3. Turn cam and insert into lock.
4. Replace Thumb turn.

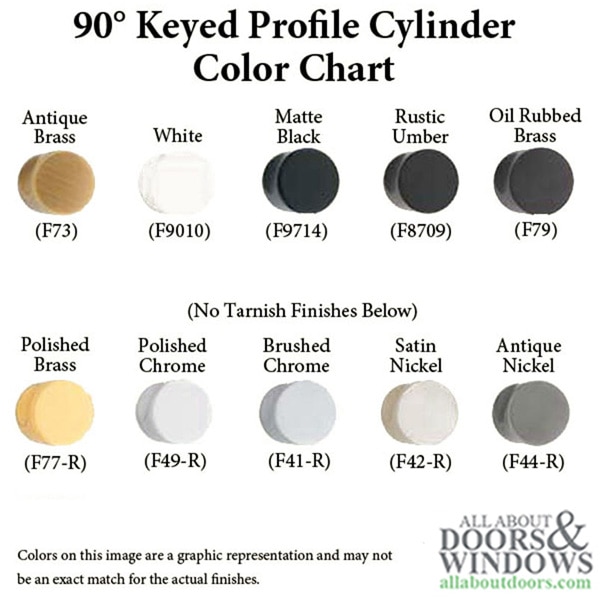

Color/Finish Options:
Antique Brass (F73)
White (F9010)
Flat Black (Matte Black) (F9714)
Rustic Umber (F8709)
Oil Rubbed Brass (F79)

(No Tarnish Finishes)
Polished Brass (F77-R)
Polished Chrome (F49-R)
Brushed/Satin Chrome (F41-R)
Brushed/Satin Nickel (F42-R)
Antique Nickel (Pewter) (F44-R)

Note: Some colors may be special order, resulting in longer shipping times.

Article:
HOPPE Cylinder Installation and Rekeying
