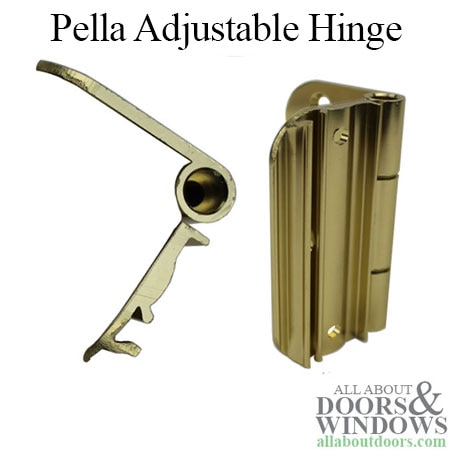

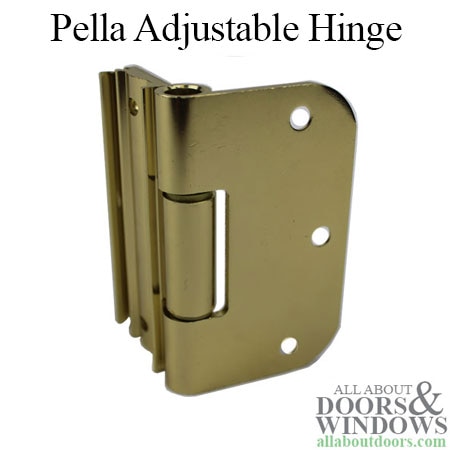

3-3/4 x 3-1/2 Pella Adjustable Hinge 5/8 Radius - 4 Pack
Pella AS/D2 Inswing Adjustable Door Hinge / Screw

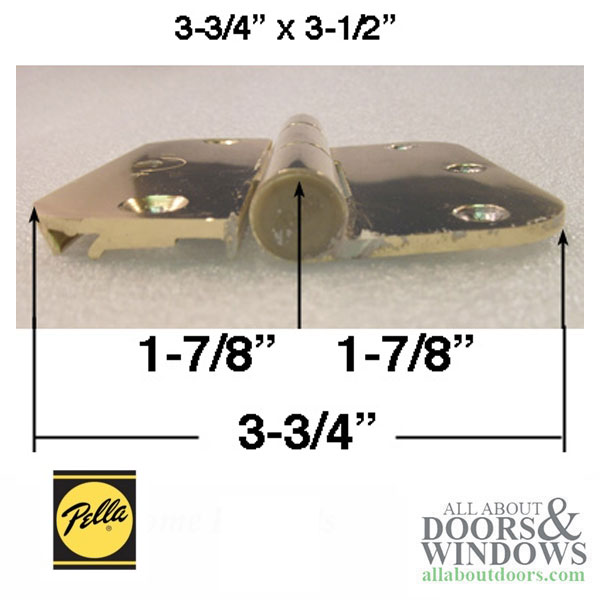

Overall Width: 3-3/4 inch
Overall Height: 3-1/2 inch
Corner: 5/8 Radius
3-7/8 Leaf Adjustable Hinge is optional on Architect Series® and Pella entry doors
SOLD IN PACKAGE OF 4 HINGES WITH SCREWS
Leaf Thickness: 1/8 inch & 1/4 inch Adjustable Side
Colors:
Polished Brass
Pella French Door Adjustable Hinges
Check door operation. Open and close the door to check for proper operation.
Make sure the door will latch correctly.
Note: If there are any problems with the operation, check to confirm the door frame is installed plumb, level and square.
If the reveal between the door panel(s) and frame is not even, adjustments may be made:
Doors without adjustable hinges: Plastic shims located behind the hinges may be removed to adjust the reveal between the door panel and door frame.
Additional hinge shims may be added if required.

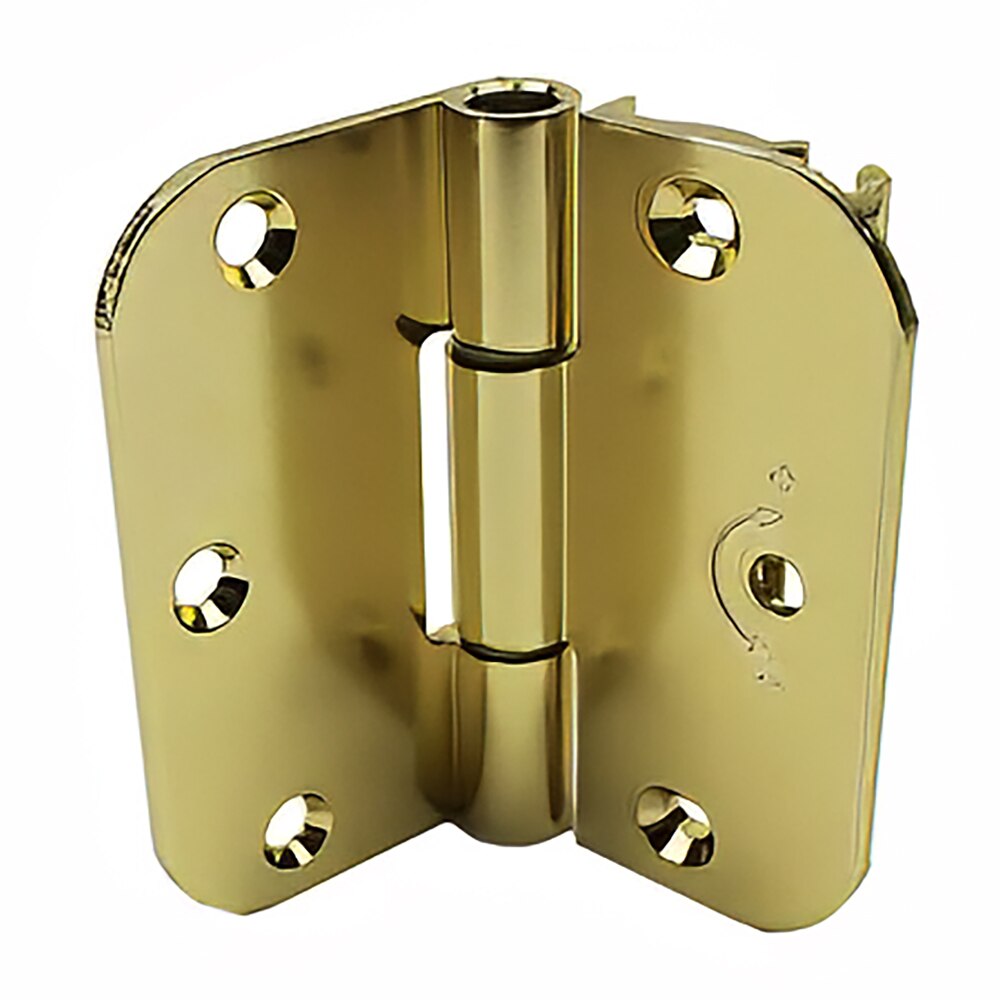

Note: Doors with adjustable hinges will have a (+)(-) on the door panel hinge leaf to indicate possible adjustments and doors without adjustable hinges do not have adjustment indicators.
Adjustable hinges are not designed to make up for failure to install the door frame correctly.
Before adjusting hinges, confirm the door is installed plumb, level and square.
Adjust the reveal if needed. If the door panels have adjustable hinge leafs. Use a 1/8” Allen wrench to turn the center screws clockwise (+) to increase the space between the frame and the door panel. Turn the center screw counter-clockwise (-) to decrease the space between the frame and the door panel. DO NOT turn the screws more than a ¾ turn in either direction. In some cases it may be necessary to loosen and then tighten the top and bottom hinge screws to obtain full hinge adjustment. If necessary, loosen the top and bottom screws, and immediately re-tighten them. With the screws tightened, turn the adjustment hinge screw. If the hinge will not adjust any further then it is adjusted as far as it will go. If more clearance is needed adjust the shims between the frame and rough opening. Doors with Adjustable Hinges: 2N
Note: DO NOT adjust the hinge with the top and bottom screws loose; this could force the hinge to adjust beyond its design capability which can cause the hinge to bind, damage the hinge and/or pull out the screws. A ¾ turn of the center screw provides approximately 1/16” adjustment. Quality
Note: DO NOT use a Ball (rounded) tip Allen wrench as it will damage the adjustable screw head. Note: For more information on the adjustable strike latching, go to the Troubleshooting section at the end of this instruction.
