20mm Winkhaus OML Double Door 45/92 Hook version, 76-1/4" Door

Part Number: 499114522
Price: See Description

Discontinued and no longer available

This Winkhaus Multipoint lock has been discontinued - Replacement options Available

Winkhaus One Motion Lock (OML) Key Above the lever with automatic retraction of hooks and deadbolt when inside handle is depressed.

Specifications: This is a double door, Active & Passive, both panels open

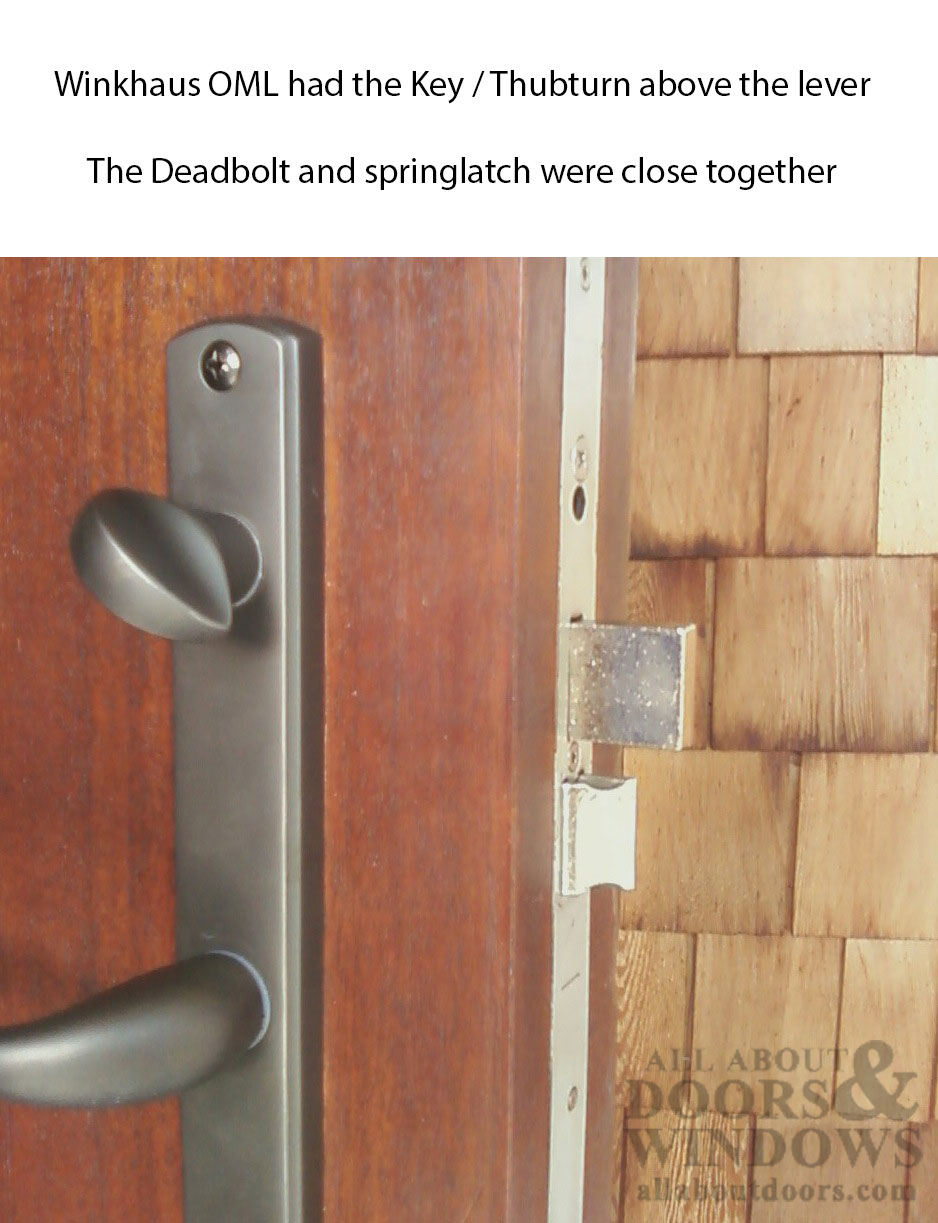

Key Position: Key Above Lever

Door Companies: Manco, Milgard Fiberglass Door, and others

Locking devices: Hook type Lock (7/8 inch Projection)

Faceplate Width: 3/4 inch (20 mm)

Faceplate Length: 76-1/4 inch ( 1,936.75mm)  same as door panel - No Sweep

Handle height: 36 inch  (914mm)

Handle / Cylinder PZ: 3-5/8 inches ( 92 mm)

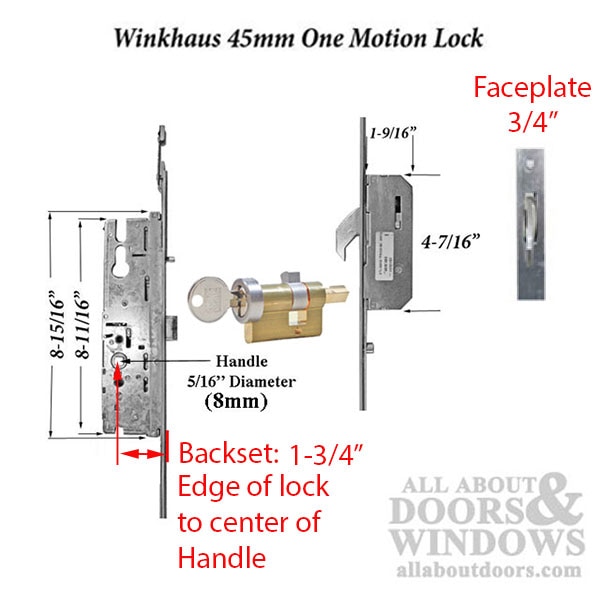

Backset: 1-3/4 inch ( 45 mm)

Material: Stainless Steel

Overall Door Panel Height: 76-1/4  inch tall

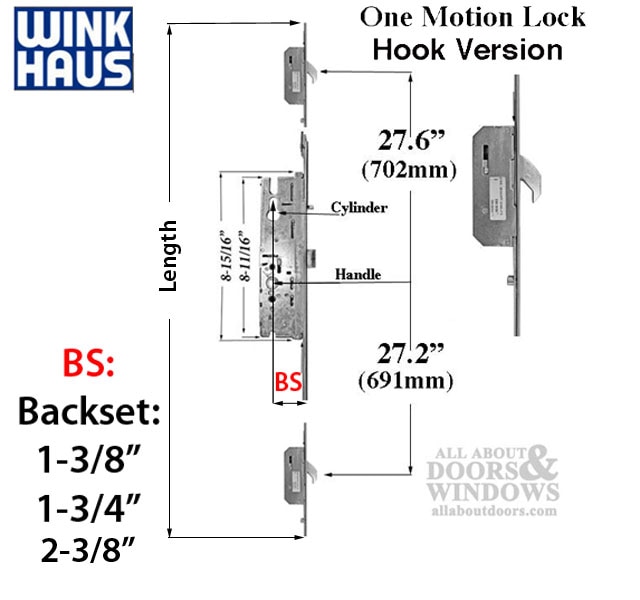

Top Hook position: 27.6 inches  (702mm)

Bottom Hook Position: 27.2 inches (691mm)

Replacement Kit # 499064522  Coming soon, contact office for ordering
