20mm Winkhaus 60/92 MPL 3 Hook Active Door

Part Number: 499116009
Price: See Description

This part has been discontinued and is no longer available

The Winkhaus One Motion Lock (OML) is NOT available, We have replacement options listed below.

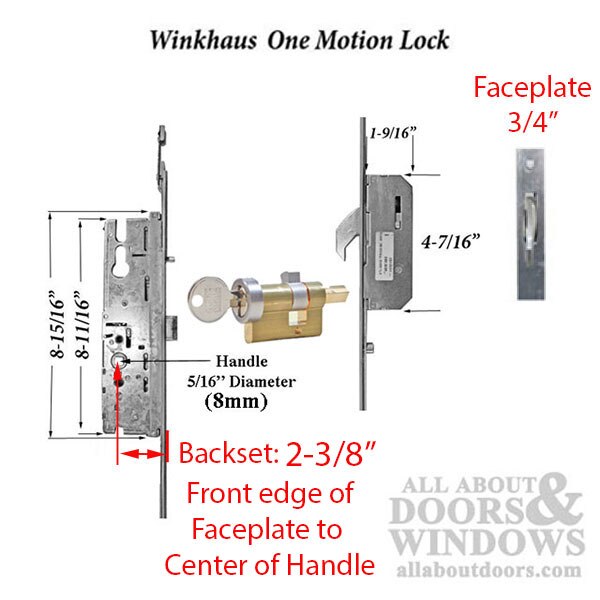

Winkhaus One Motion Lock (OML) with 3 hooks, Key Above, 8' Door

Faceplate width: 25/32 inch (20mm)

Lock Backset: 2-3/8 inch (60mm)

Handle PZ: 3-5/8 inch (92mm)

Handle Height: 36 inches (914mm)

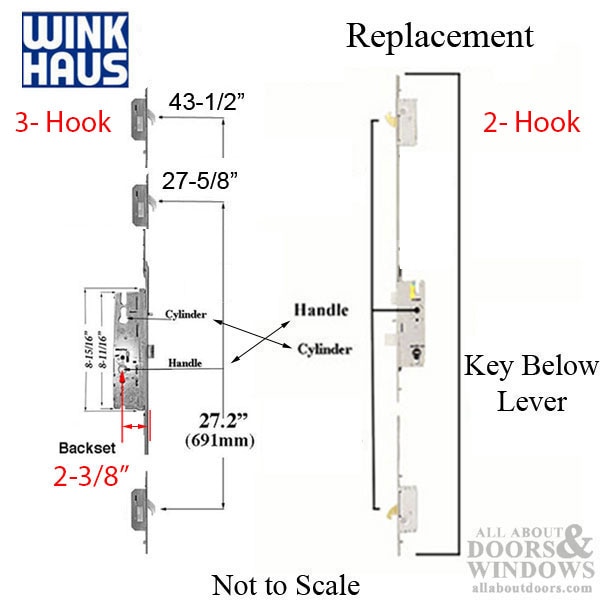

Lower Hook Position: 27-1/4 inches ( 691mm) from Handle

Middle Hook Position: 27-5/8 inches (702mm) from Handle

Top Hook Position: 43-1/2 inches (1105mm) from Handle

Door Height: 82 - 101 inches

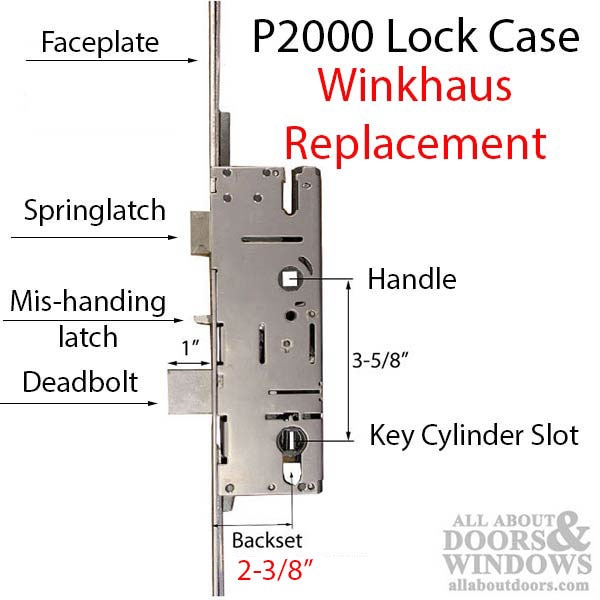

Winkhaus Replacement: 2 hooks, Key Below

New Handle Height: 38.559 inches (979mm)

Door Thickness: 1-3/4 inch (45mm)

Replacement Kit #499066009-Kit (American Version) SINGLE DOOR

This is for a single door. It will not work as part of a double french door.

Note 1: If you want to reuse the existing handles, we will need to convert The American version to a Euro Version and you will need a new solid spindle. Most handle sets may be reused, but will need to be inverted, Key below, lever above.

Note 2: Single doors require a new Latch and Deadbolt Strike plate

Standard Replacement is Stainless Steel

If you require a different finish for the strike plate, please let us know, and we’ll be happy to assist with available options.
