20mm Winkhaus 45/92 MPL 3- Hook Active Door
Winkhaus One Motion Lock (OML) is NOT available
We offer a Replacement for 3 hook Winkhaus OML 20mm face, 45mm backset, 92"-93" tall door
Kit includes, lower Gear, middle extension and upper hook extension, New Strike plate and Installation Screws

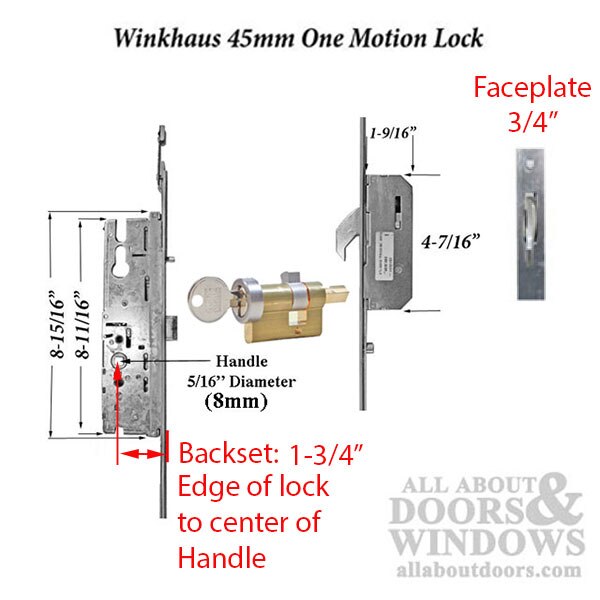

Winkhaus One Motion Lock (OML) 3 hook Door
Faceplate width: 25/32 inch (20mm)
Lock Backset: 1-3/4 inch (45mm)
Handle PZ : 3-5/8 inch (92mm)
Handle Height: 36 inches
Lower Hook Position: 27-1/4 inches ( 691mm)
Middle Hook Position: 27-5/8 inches (702mm)
Top Hook Position: 43-1/2 inches (1105mm)

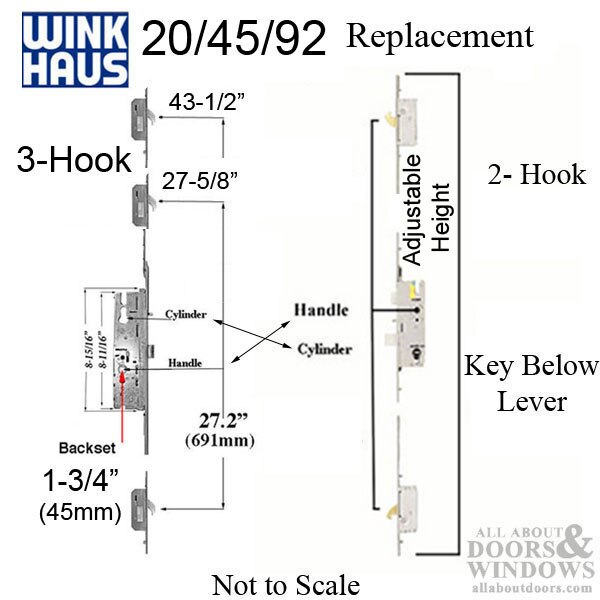

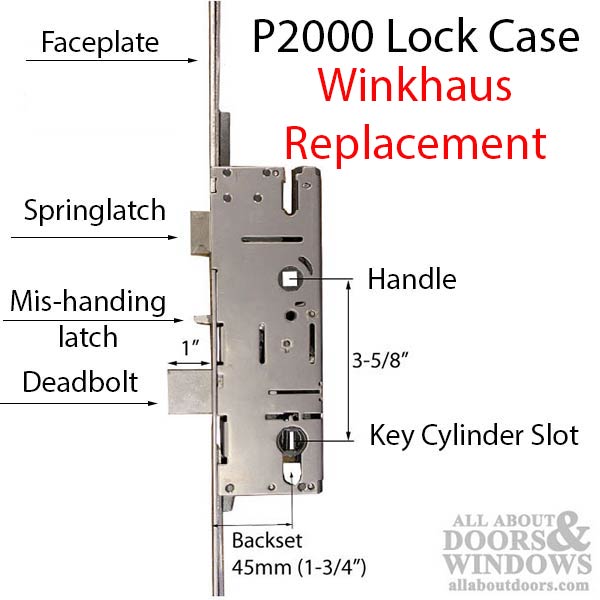

Replacement: 20/45/92 with Adjustable top hook - 2 hook door
Faceplate width: 25/32 inch (20mm)
Lock Backset: 1-3/4 inch (45mm)
Handle PZ : 3-5/8 inch (92mm)

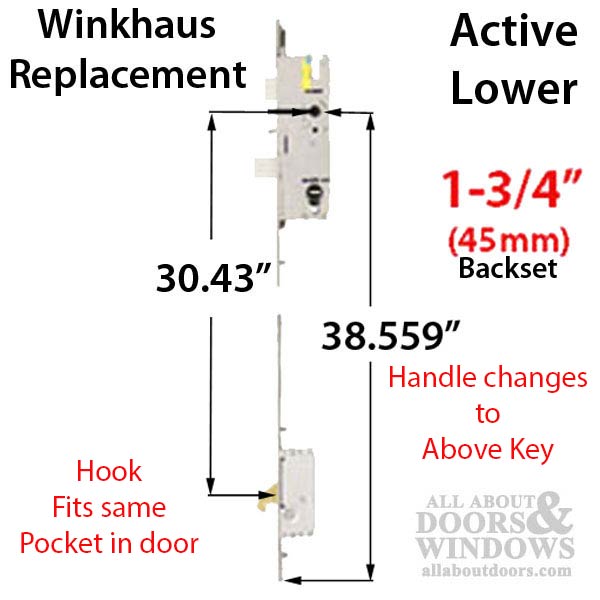

New Handle Height: 38.559 inches
Door Thickness: 1-3/4 inch (45mm)
MP Lock Position: Centered in door
Bottom Hook position: 30.43 inches from NEW handle height of 38.559
Top Hook Position: Adjustable, 30-43 inches above new handle height
Note 1: IF The faceplate on the top hook does not go all the way to the top of the door panel. Fill in with material from old lock
Note 2: Some handle sets may be reused, but will need new spindle and have to be inverted. replacement lock has to be converted to a Euro version. Contact office for details.
Note 3: If replacing handle set trim, We suggest using a larger handle set like our 2" x 12"
Winkhaus 3-hook Replacement:
499064509-Kit
