2 Point Mortise Lock, Sliding Patio Door

Part Number: 15217
Price:$47.25 to $52.45

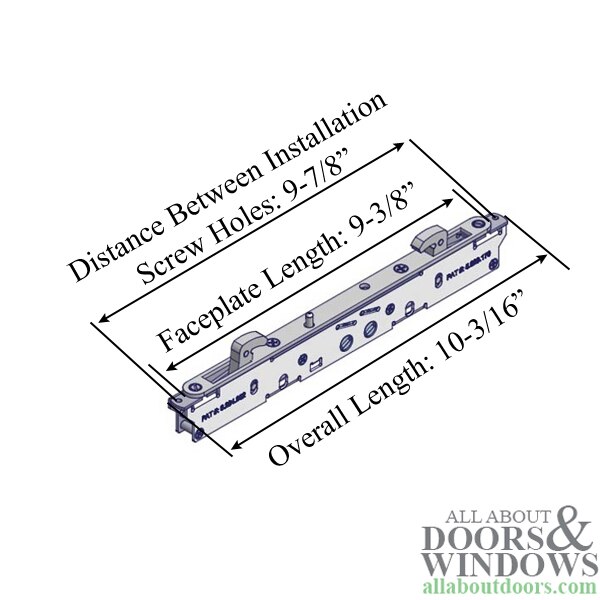

2 Point Mortise Lock with small 9-3/8 faceplate for primarily Vinyl Sliding Patio Door

Application: Vinyl or Aluminum Glass Doors
Face Plate Size: 1/2 x 9-3/8 Radius Ends
Installation Screw Holes: 9-7/8
Overall Length: 10-3/16
Hooks: Point Inward
Material: Stainless Steel or Raw Steel (Yellow Dichromate) - Choose Option
Handle set Type: Works with Center or Off center Thumb Turn
Markings: PAT # 6.264.252 / 5.820.170

Includes: Mortise lock with small faceplate
Strike Plate: Not Included, There are several sizes and types for different applications. Suggested options: 15162 or 15163
