Roller Assembly for Sliding Patio Doors with Adjustable Steel Housing 1.125 Inch Steel Ball Bearing Wheel Diameter
1-1/8 inch steel ball bearing roller
Adjustable steel housing assembly
Used by Northrop and other glass door manufacturers

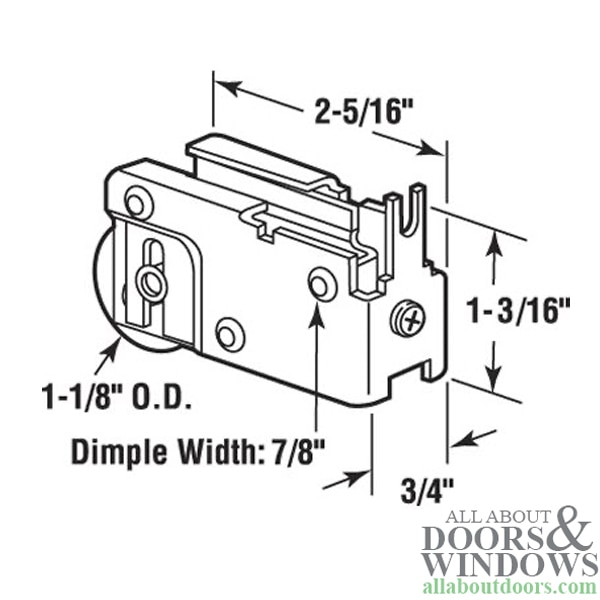

Housing dimensions: thickness,3/4 inch; length,2-5/16 inch; height,1-3/16 inch; overall thickness, 7/8 inch.
Diameter: 1-1/8-inch
Housing Tab Style: C-Tab
Housing Width: 23/32-inch
Material: Steel
Roller Diameter: 1-1/8-inch
Roller Edge Type: Concave
Roller Material: Steel
Roller Width: 5/16-inch
Type: Concave
Width: 23/32-inch
Sold each, priced each
Helpful Article:How to Replace Rollers in an Aluminum Sliding Glass Door
Adjustable steel housing assembly
Used by Northrop and other glass door manufacturers
Housing dimensions: thickness,3/4 inch; length,2-5/16 inch; height,1-3/16 inch; overall thickness, 7/8 inch.
Diameter: 1-1/8-inch
Housing Tab Style: C-Tab
Housing Width: 23/32-inch
Material: Steel
Roller Diameter: 1-1/8-inch
Roller Edge Type: Concave
Roller Material: Steel
Roller Width: 5/16-inch
Type: Concave
Width: 23/32-inch
Sold each, priced each
Helpful Article:How to Replace Rollers in an Aluminum Sliding Glass Door
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: D 1529
Prime-Line Products: D 1529
