1-1/4 Steel wheel, roller assembly

Part Number: 13190
Price: $7.92

Discontinued - Replace with 13104

Discontinued - Replace with 13104

1-1/4 inch steel ball bearing roller assembly
Adjustable steel housing assembly
Used by many glass door manufacturers

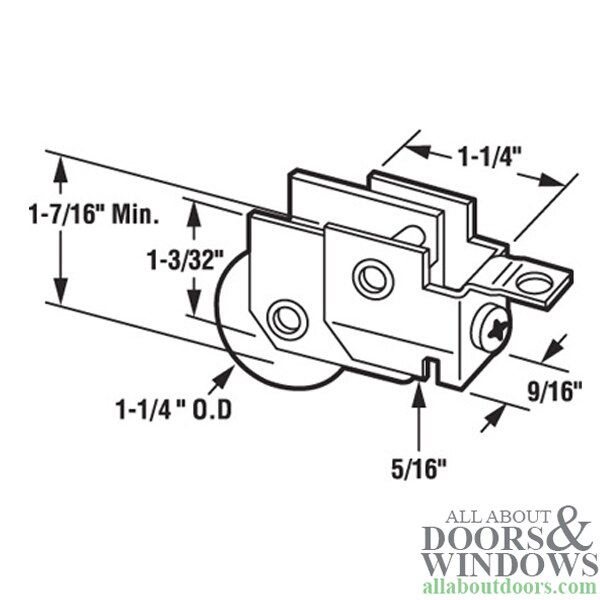

Housing dimensions: thickness, 9/16 inch; length, 1-1/4 inch; height, 1-3/32 inch; overall thickness, 25/32 inch.

Diameter: 1-1/4-inch
Housing Tab Style: B-Tab
Housing Width: 9/16-inch
Material: Steel
Roller Diameter: 1-1/4-inch
Roller Edge Type: Concave
Roller Material: Steel
Roller Width: 5/16-inch
Type: Concave
Width: 9/16-inch

Same housing with 1-1/8" roller diameter, see part # 13104

Helpful Article:How to Replace Rollers in an Aluminum Sliding Glass Door
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: D 1697
