Roller Assembly for Sliding Patio Door with Adjustable Aluminum Housing 1.25 Steel Ball Bearing Wheel Diameter

Part Number: 13073
See description below for replacement.

This item has been discontinued and is no longer available.

Discontinued, replace with 13074

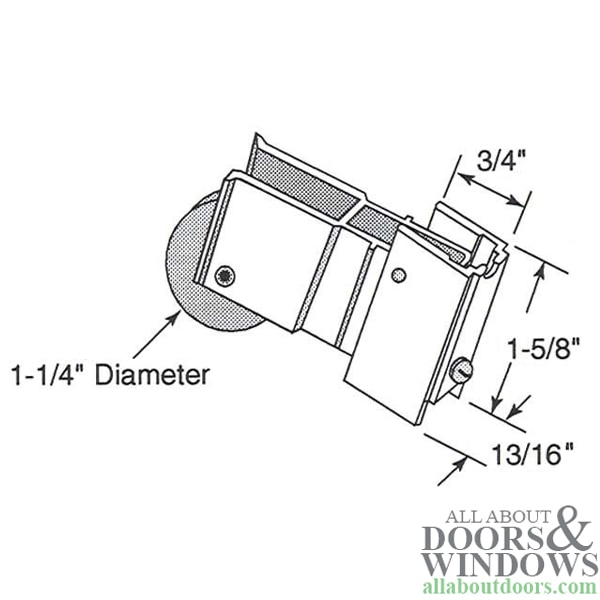

Housing Dimensions: Thickness 13/16 inch, Length 3/4 inch, Height 1-5/8 inch

1-1/4 inch steel ball bearing roller; adjustable aluminum housing assembly; used by Peachtree and other glass door manufacturers; housing dimensions: thickness, 13/16 inch length, 3/4 inch; height, 1-5/8 inch

Diameter: 1-1/4-inch
Housing Tab Style: Unique Housing
Housing Width: 13/16-inch
Material: Steel
Roller Diameter: 1-1/4-inch
Roller Edge Type: Concave
Roller Material: Steel
Type: Concave
Width: 13/16-inch

Related items:
11029 - 1 inch Nylon Wheel
11006 - 1 inch Steel Wheel
12018 - Screen Handle

Helpful Article:How to Replace Rollers in an Aluminum Sliding Glass Door

This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: D 1609
