1-1/4 Nylon wheel, roller assembly

Part Number: 13169
Price: $9.85

Discontinued and no longer available

Priced each, sold each

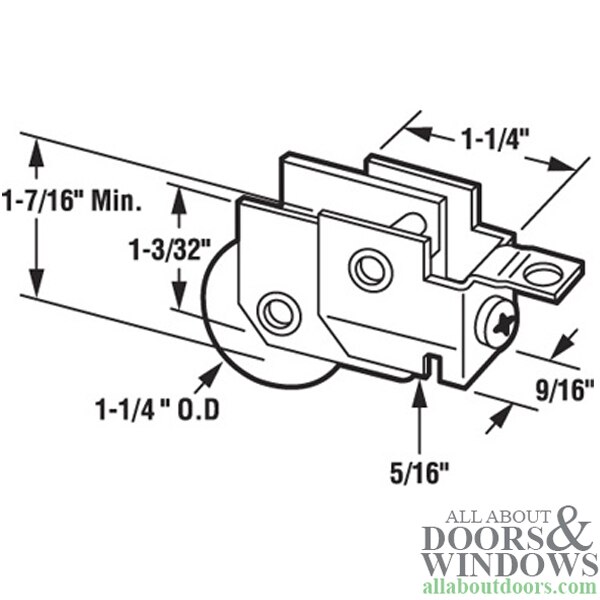

1-1/4 inch nylon ball bearing roller assembly
Adjustable steel housing assembly
Used by many glass door manufacturers
Housing dimensions: thickness, 9/16 inch; length, 1-1/4 inch; height, 1-3/32 inch; overall thickness, 25/32 inch.

Diameter: 1-1/4-inch
Housing Tab Style: B-Tab
Housing Width: 9/16-inch
Material: Nylon
Roller Diameter: 1-1/4-inch
Roller Edge Type: Concave
Roller Material: Nylon
Roller Width: 5/16-inch
Type: Concave
Width: 9/16-inch
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: D 1698
