31.5 / 60.5 New Style HOPPE Non-Logo 90 Keyed Profile Cylinder Lock, Solid Brass
New style 90 degree HOPPE Keyed profile cylinder with crescent knob.
Used on doors that are 2-1/8 to 3 inches thick.

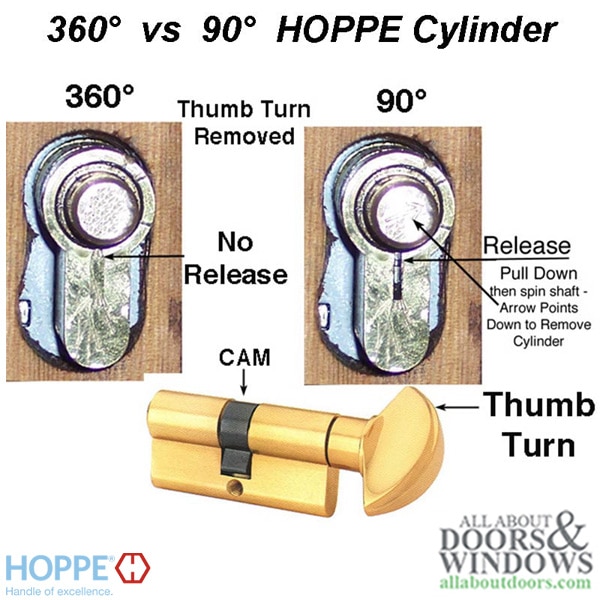

The new style 90 degree allows homeowner to look at thumb turn and know if door is locked or unlocked.
This cylinder can be converted to a 360 degree cylinder.

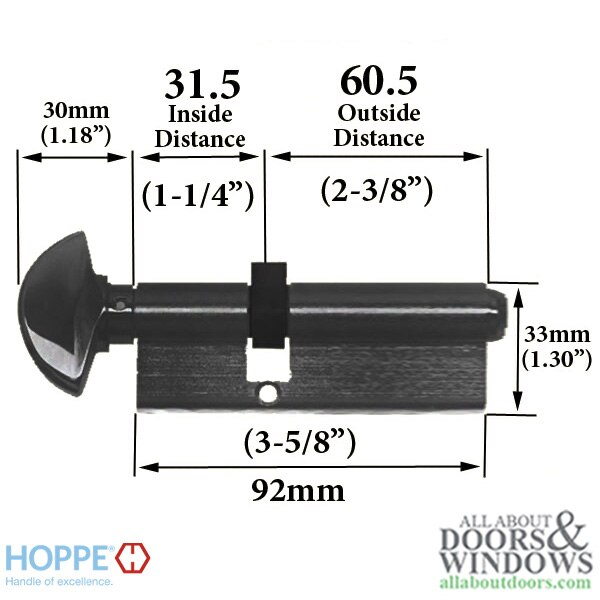

Measurements:
Inside Distance = 1-1/4 inch (31.5 mm)
Outside Distance = 2-3/8 inch (60.5 mm)
Overall (inside + outside) = 3-5/8 inches (92 mm)

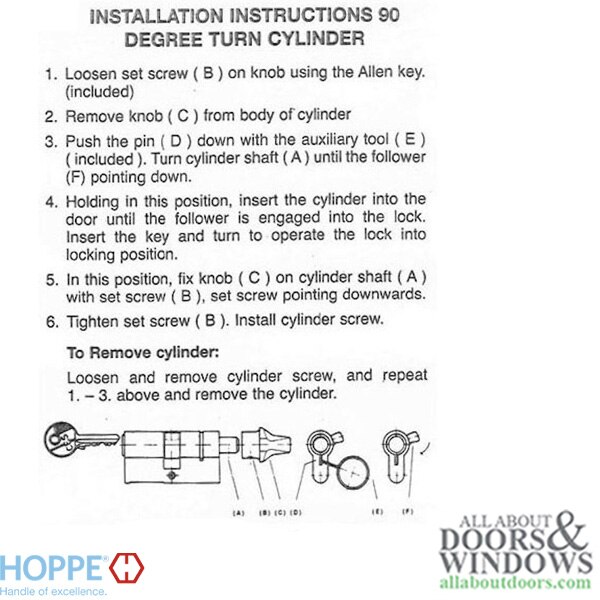

Installation Instructions:

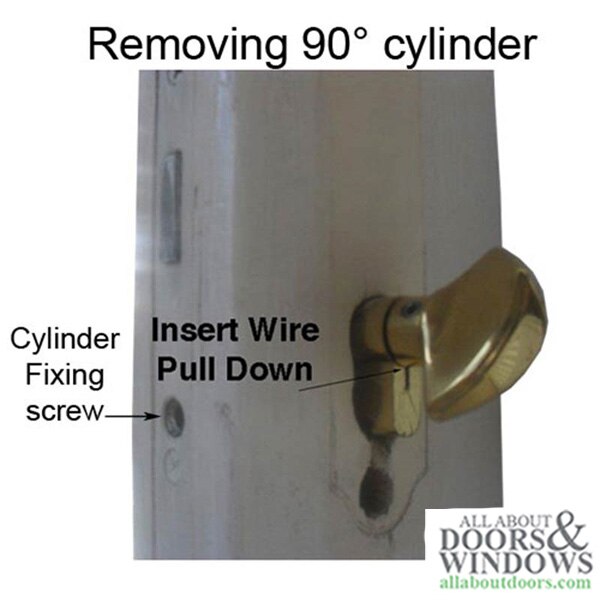

1. Remove Thumb Turn
2. Insert Aux. Tool and pull down on Release Tab
3. Turn cam and insert into lock.
4. Replace Thumb turn.

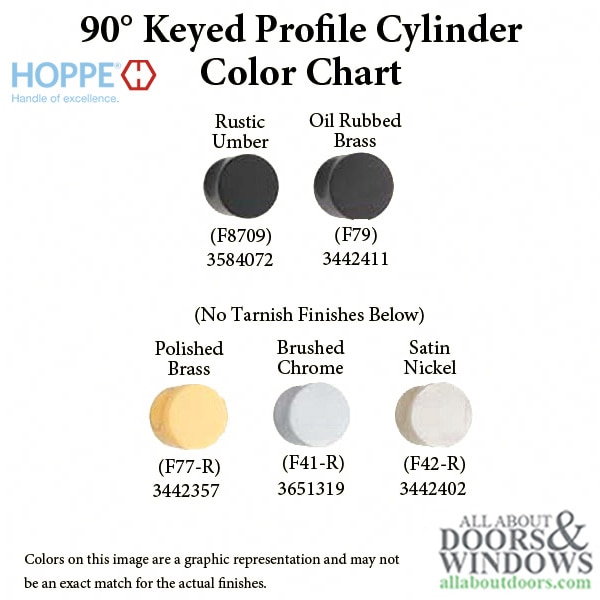

Color/Finish Options:
Rustic Umber (F8709)
Oil Rubbed Brass (F79)
Resista no-tarnish finishes:
Polished Brass (F77-R)
Satin Nickel (F42-R)
Brushed Chrome (F41-R)
Note: Some colors may be special order, resulting in longer shipping times.
Article:
HOPPE Cylinder Installation and Rekeying
Used on doors that are 2-1/8 to 3 inches thick.
The new style 90 degree allows homeowner to look at thumb turn and know if door is locked or unlocked.
This cylinder can be converted to a 360 degree cylinder.
Measurements:
Inside Distance = 1-1/4 inch (31.5 mm)
Outside Distance = 2-3/8 inch (60.5 mm)
Overall (inside + outside) = 3-5/8 inches (92 mm)
Installation Instructions:
1. Remove Thumb Turn
2. Insert Aux. Tool and pull down on Release Tab
3. Turn cam and insert into lock.
4. Replace Thumb turn.
Color/Finish Options:
Rustic Umber (F8709)
Oil Rubbed Brass (F79)
Resista no-tarnish finishes:
Polished Brass (F77-R)
Satin Nickel (F42-R)
Brushed Chrome (F41-R)
Note: Some colors may be special order, resulting in longer shipping times.
Article:
HOPPE Cylinder Installation and Rekeying
