Inactive Handle Set 400 A Series Multi-Point Lock Trim - Left Hand

Part Number: HD401ILH
Price:$110.52 to $165.17

Amesbury inactive non-keyed hardware for secondary passive door with multi-point lock.
The lock trim replaces Integrity by Marvin, Milgard, G-U / Ferco, and other American version multi-point locks, that do not need an inside thumbturn.

Amesbury 400 A Regency series with curved lever and rounded top escutcheon plate.
Application: Secondary door with no key or thumbturn.

Handed: Yes, Left or Right Hand, as shown
Handing is reversible and can be changed.
Levers do not have a set screw. It uses and C-ring (circlip) to hold handle in place.
Handle set uses a spring loaded cassette for added lever action

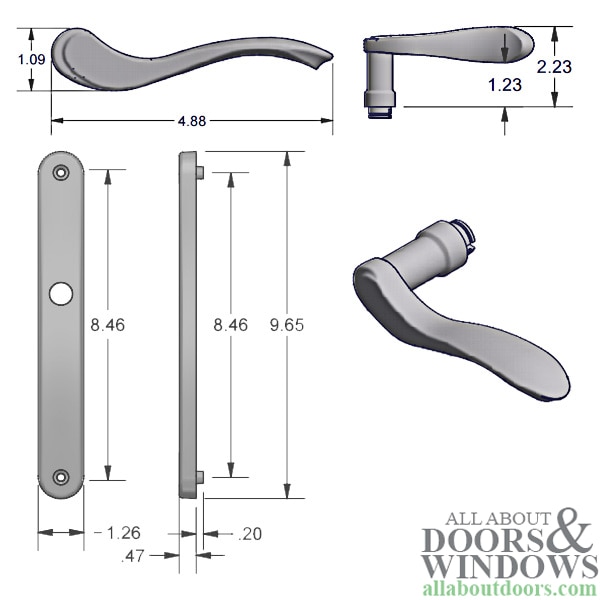

Door Thickness: 1-3/4 Inch
Escutcheon Plate: A Style - Rounded Top
Actual Plate Width: 1.26 Inch
Actual Overall Plate Height: 9.65 Inch
Escutcheon Plate Screw Hole Spacing: 8.46 Inch
Cylinder Type: None
Keyway: None
Handle Projection: 2.23 Inch
Handle Clearance: 1.23 Inch
Handle Length: 4.88 inches
Base Material: Zinc (available in brass substrate PVD finish for coastal areas)

Available Colors / Finishes:
Wet White

Other colors available upon request:
Dark ORB
Satin Nickel

Other Available Functions:
Active - Keyed Inside, Thumbturn Outside
Inactive / Passive - No Key, No Thumbturn, Moving Handles
Dummy - No Key, No Thumbturn, Fixed Handles
