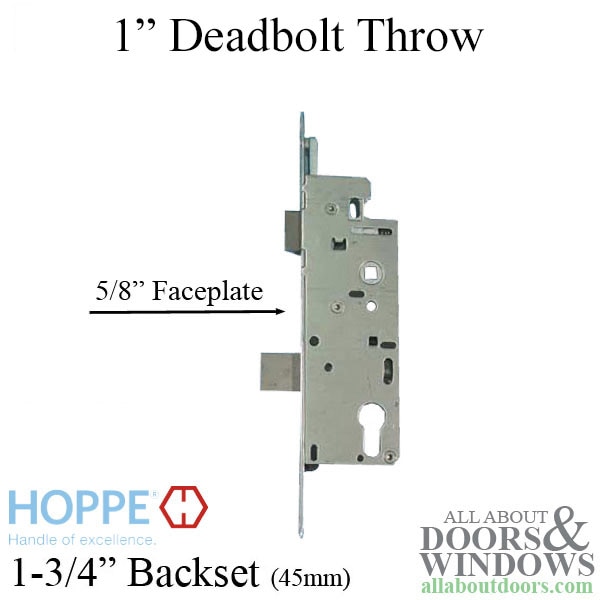

Hoppe Mortise Lock Single Point Mortise Lock 1" Deadbolt Throw 1-3/4" Backset

IMPORTANT NOTICE: This single point mortise lock CANNOT used to repair a multipoint lock
There are no interchangeable parts from this lock that can be used on other locks.

Hoppe manual single point mortise lock (SPL)
Used by Caradco, Norco, WeatherShield, Bilt Best, Shelter and many others, also replaces FUHR Single point locks.

16mm Hoppe 45/92 Single Point Lock (SPL) 1" Deadbolt, new style with locking handle
Deadbolt Throw: 1 inch (25 mm).
Face Plate Width: 5/8 (16 mm)
Face Plate Length: 10-13/16 inch.
Faceplate Screw Holes: 10-1/8 inch.
Faceplate Material: Stainless Steel
Backset: 1-3/4 inch (45 mm) - distance from edge of face plate to center of lock handle.

PZ: 92mm

PZ is the distance from the center of key clylinder to center of handle

All Current Model Single Point Locks from HOPPE w/ Rotation Limiter
(Lever is fixed and does not move after door is locked)
11517475 - 35mm backset, 25.4mm deadbolt throw, 16mm faceplate with radius ends
11517505 - 60mm backset, 25.4mm deadbolt throw, 16mm faceplate with radius ends
11517517 - 70mm backset, 25.4mm deadbolt throw, 16mm faceplate with radius ends

(Please contact office if needing one of the locks not currently linked to our site) Latch handing may be changed by pulling out or inserting small screwdriver into small hole in back of latch and pushing forward, twist latch and release. See linked article below.

HOPPE Screws for Installation:
8785695 - Screw 1-3/8" ( 35mm ) 8mm Head - Stainless Steel
8785687 - Screws, 3/4" (20mm ) 8mm Head - Stainless Steel
