Andersen Window - E-Z Casement - Split Arm Operator, (1999-present)


  • Part #: 1361484
  • Availability:

Price : $27.95

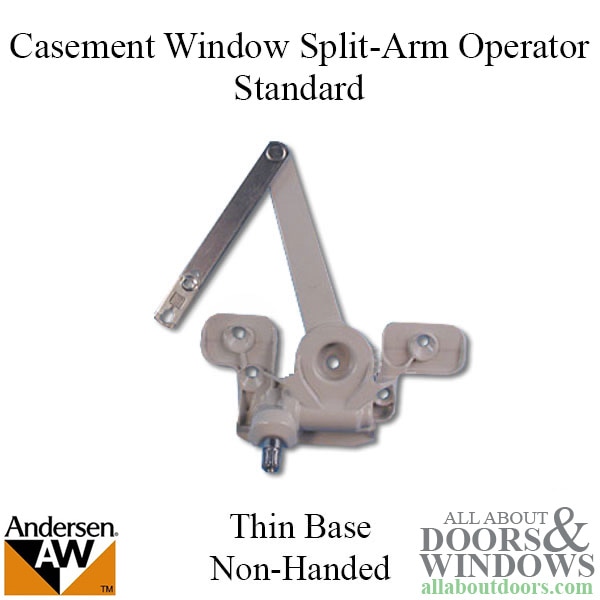

Andersen Window Standard split arm operator for the E-Z casement 1995- Present

1999 -Present.
Non-handed, can be used on left and right hand units.

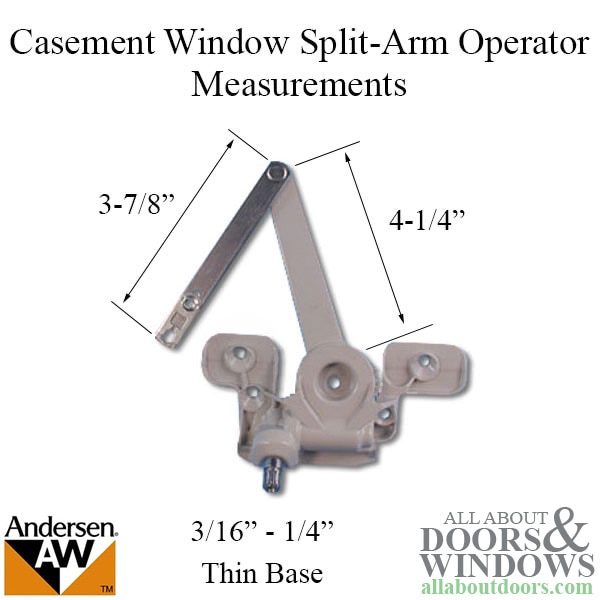

Screw Hole Spacing: 3-3/4 inch
Base Thickness: 3/16 -1/4 inch thick.

Note: For units manufactured from 1995 through 1998 an adaptor plate is necessary for installation. The adaptor, # 9050723, will snap onto the operator with no modifications needed.

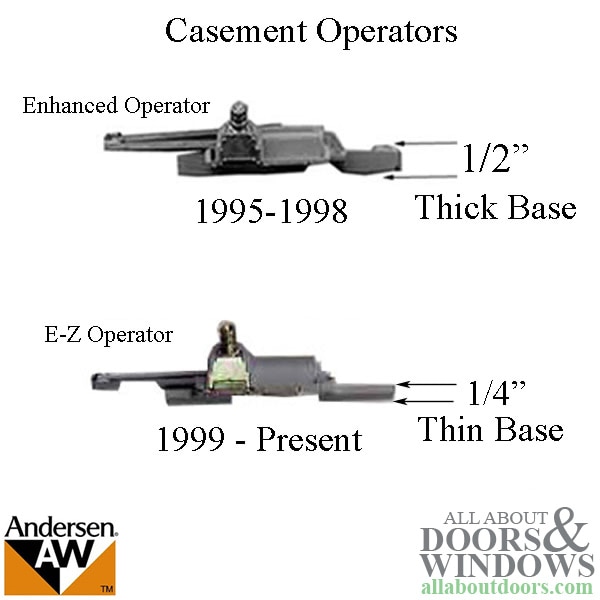

The E-Z and Enhanced operators look the same, but have different base thickness. Please double check your measurements.

Priced and sold each.

Related Andersen Window Parts:

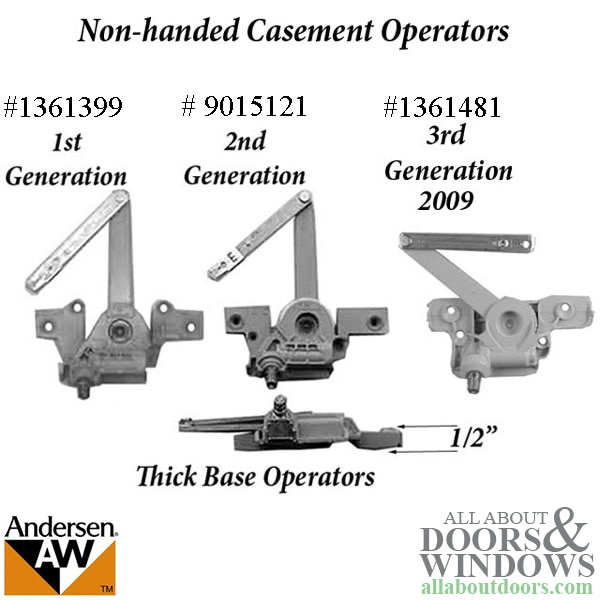

1361484 - Universal Split Arm Operator w/screws - Standard applications

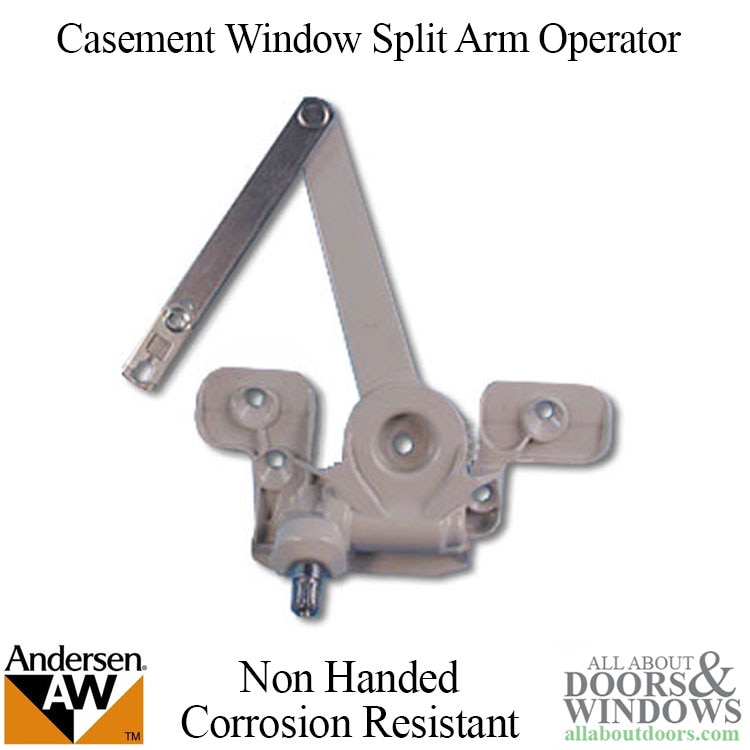

1361481 - Universal Split Arm Operator w/screws - Corrosion Resistant
1361409 - Split Arm Sash Bracket w/screws - Standard - Left
1361408 - Split Arm Sash Bracket w/screws - Standard - Right
1361411 - Split Arm Sash Bracket w/screws - Corrosion Resistant - Left
1361410 - Split Arm Sash Bracket w/screws - Corrosion Resistant - Right
9050723 - Plastic adapter used with 1995-1998 Enhanced Series.

Included Components:
