2-3/4 inch Backset Deadbolt Latch, Square Face - Brass

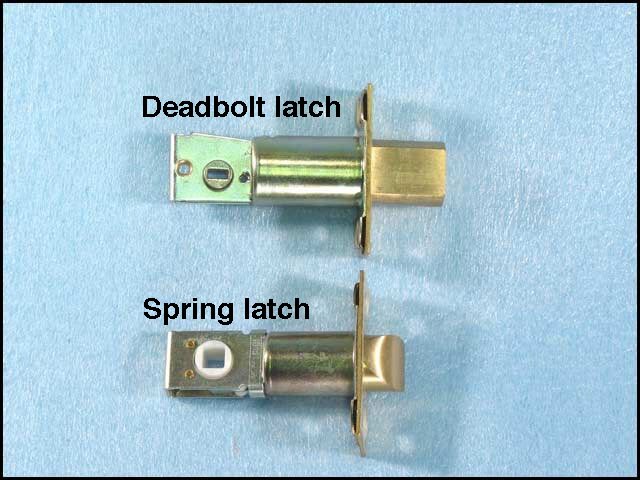

2-3/4 inch (70mm) backset Deadbolt latch only- Square faceplate.

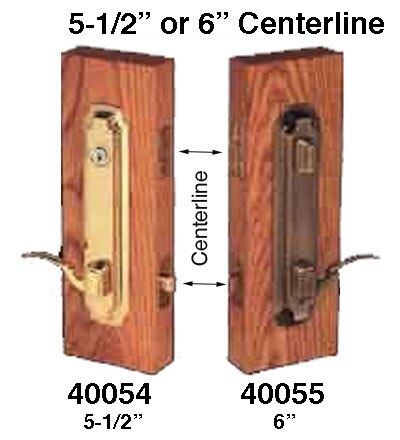

This deadbolt latch is designed to be used with a Specific Lockset ( 2nd Image)
Note 1: The latch does not have holes for screw posts - the screw posts used with this lock must be above and below the cylinder.
Note 2: There is a small dimple in the center of the slot on the 40043 deadbolt latch - this is designed to stop the tailpiece from going all the way through on some applications. - If using this to replace the Prado or some other similar latch, it might be necessary to slightly file, the flat tail piece on the key cylinder so it will pass through.
Related Lock Parts:
40043 - 2-3/4 inch backset; Deadbolt latch
40044 - 2-3/4 inch backset; Spring Latch
40045 - 2-3/8 inch backset: Deadbolt latch
40046 - 2-3/8 inch backset: Spring Latch
40047 - 2 inch backset: Spring Latch
40048 - 2 inch backset: Deadbolt latch
40049 - 2 inch backset; Combo Deadbolt with Spring latch
