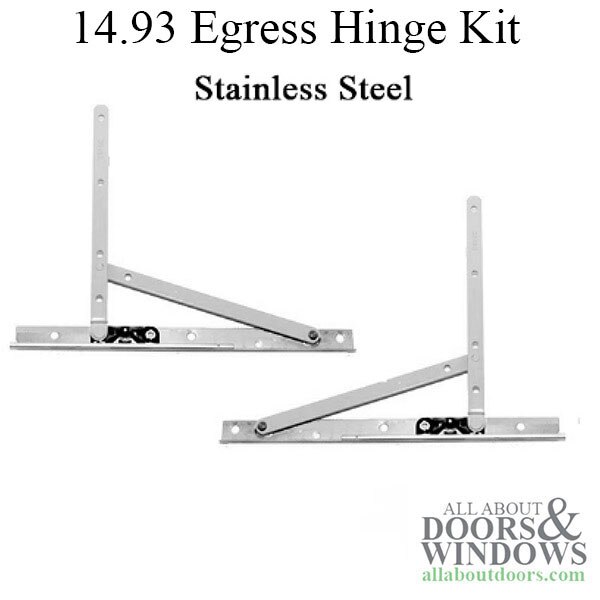

Truth 14.93 series Egress Casement window hinge & arm kit 2-9/32" opening Stainless Steel
Amesbury Truth 14.93 concealed casement window Egress hinge for upper and lower sash are used by many window manufacturers. Replaces older Hardware on left or right hand windows or converts the standard hinge to Egress
This Kit is custom, has the Adjustable Brass Stud post on the Stainless Steel track
Application: Casement Windows, Egress Opening

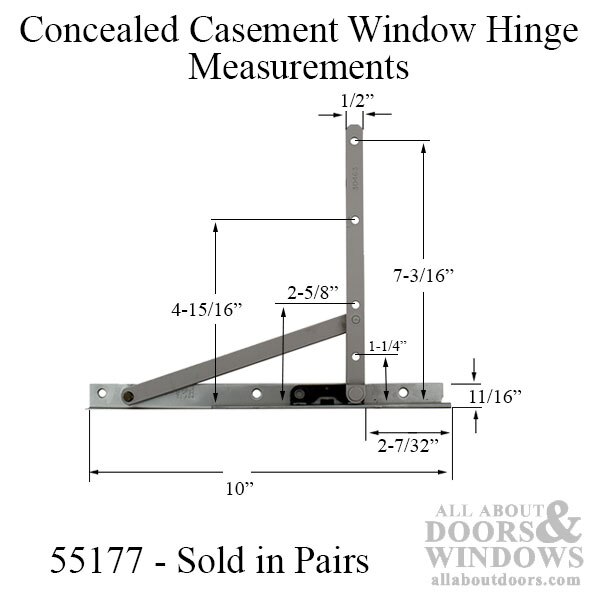

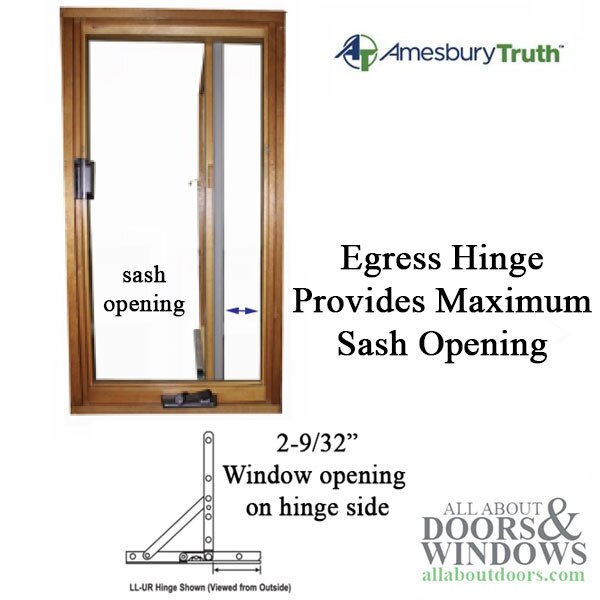

Hinge Opening: 2-9/32 inch (57..9mm) 2.281
Track Length: 10 inch
Track Material: Stainless Steel

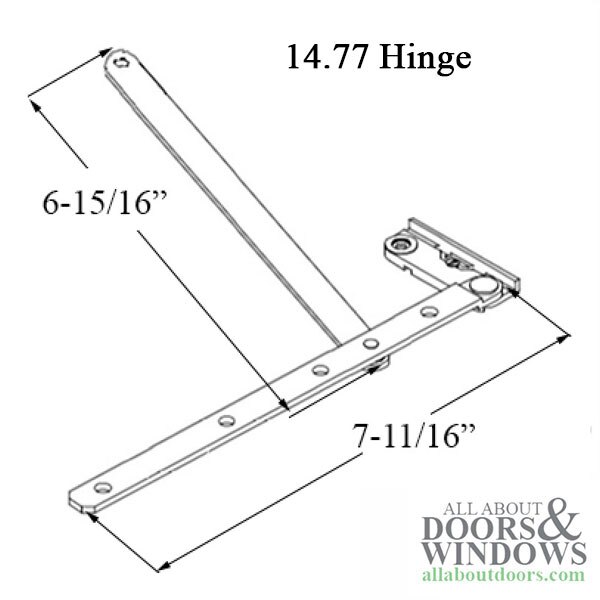

Arm Length: 6-15/16 inch
Arm Length w/ Shoe: 7-11/16 inch
Material: Stainless Steel Arm, plastic shoe
Hinge Opening: 2-9/32 inch (57..9mm) 2.281
Sold in Pairs, Upper and lower, fits left or right hand window
Additional Information:

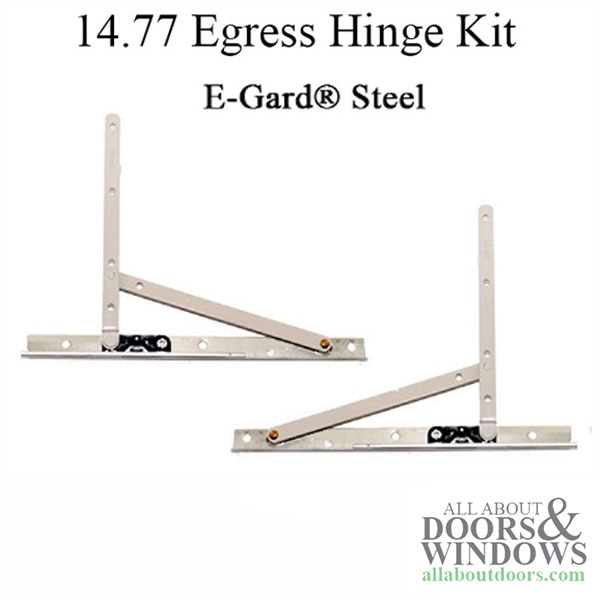

* 14.77 E-Gard® and 14.93 Stainless Steel are the same size, different materials
* The sash and support arms are made from heavy gauge steel to give the window sash weight carrying capability up to 140 lbs.
* Common numbers that can be found on the 14.77 or 14.93 Concealed Casement Window Hinge are 30463, 30818, 40942 and 40941.
* Recommended screws: ( Not Included) #7 x 3/4 Phillips, Flat Head, Steel, Sheet Metal Screw for the sash & Track. Actual screw size may vary depending on application and window material.
