Trimline Sweep Lock, No Alignment Lugs, 2-1/16 inch screw holes - Choose Color
Truth Trimline Sweep Lock/ Cam Latch, NO alignment lugs

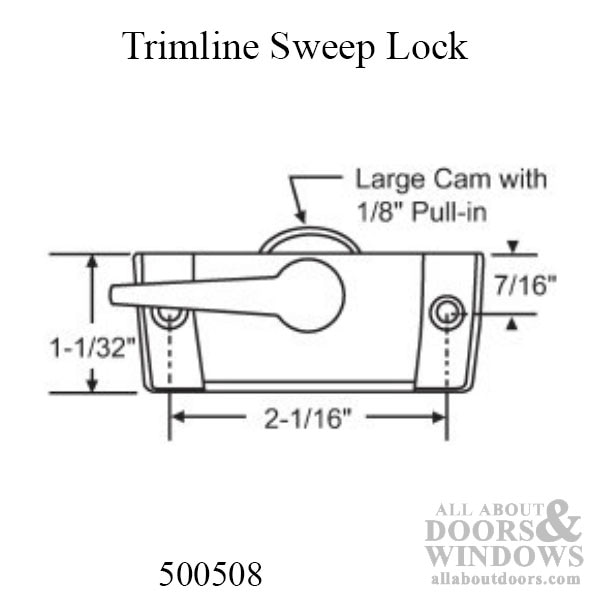

Screw hole spacing: 2-1/16 inch
Screw hole from front edge: 7/16 inch
Latch Width: 1 inch
Latch Length: 2-3/8 inch back; 2-9/16 front
Swivel Cam: 1/8 inch pull; 5/16 thick
Sold Each; no screws, no keeper.
Color Options:
Gold
White
Hardware Note:

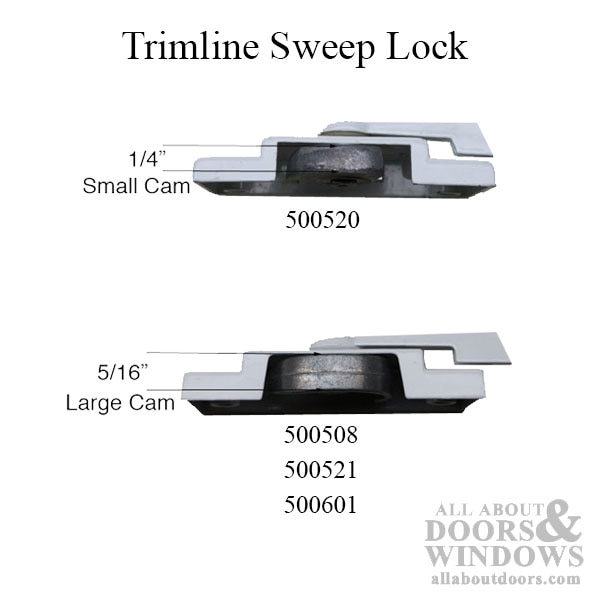

These were made with a small cam (1/4 inch), and large cam (5/16 inch).
The small cam has 1/16" pull in.
The large cam has 1/8" pull in.
Related Parts:
500521 -Trimline Sash Lock (slightly different screw hole pattern)
Priced and sold each.
Screw hole spacing: 2-1/16 inch
Screw hole from front edge: 7/16 inch
Latch Width: 1 inch
Latch Length: 2-3/8 inch back; 2-9/16 front
Swivel Cam: 1/8 inch pull; 5/16 thick
Sold Each; no screws, no keeper.
Color Options:
Gold
White
Hardware Note:
These were made with a small cam (1/4 inch), and large cam (5/16 inch).
The small cam has 1/16" pull in.
The large cam has 1/8" pull in.
Related Parts:
500521 -Trimline Sash Lock (slightly different screw hole pattern)
Priced and sold each.
This product is similar to or the same as the following part numbers in these brands:
Strybuc Industries: 50-384-2, 50-384-3
