Multipoint Trim, 1-1/2 x 11 inch, American Cylinder Traditional Brass Handleset, Choose Options

Price: $338.63
Part Number: 921601000
Price: $338.63
Replacement multi-point lock handle set trim in traditional brass.

Please note that these handle sets are special order and cannot be returned or exchanged.
Some handle sets may take 6 to 8 weeks for delivery.

Carefully check your measurements to reduce chances of error.
If your door has a different screw hole pattern, a new pattern may still work by drilling new screw holes.
Be sure the lock body in the door will not be in the direct line of screws.

Escutcheon Plate Style: Traditional
Escutcheon Plate Shape: Arched Ends
Escutcheon Plate Height: 11 inches
Escutcheon Plate Width: 1.5 inches

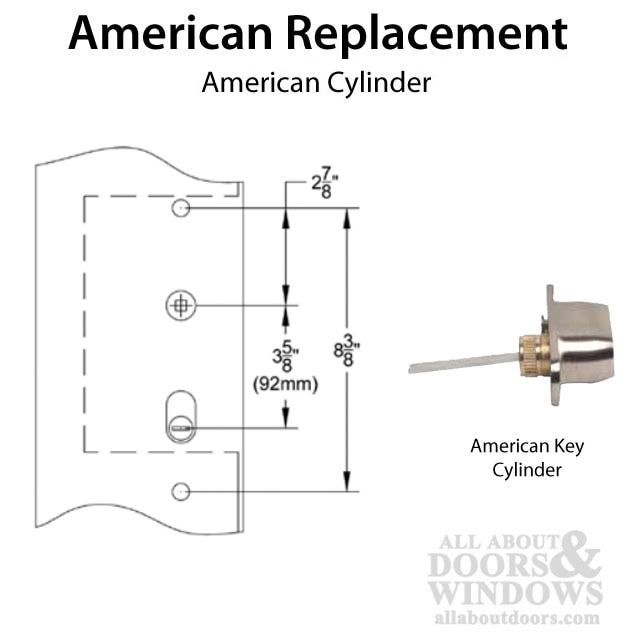

Screw Hole Center: 8-3/8 inches
Cylinder Version: American
Keyway: Schlage 5 Pin SC1
Key/Thumb Turn Position: Below Handle
Material: Brass
Handle PZ: 3-5/8 inches (92mm)

Please choose the following drop-down options:

A. Function:
(1) Active - Keyed American Cylinder with inside Thumb turn
(2) Passage - Non-keyed, No Thumb turn
(3) Inactive - Non-keyed with inside Thumb turn
(4) Dummy Passage/Half Passage - Fixed Handle Outside, Passage Inside, No Thumb turn
(5) Dummy Pair - Both Fixed, Ridged Handles, No Thumb turn

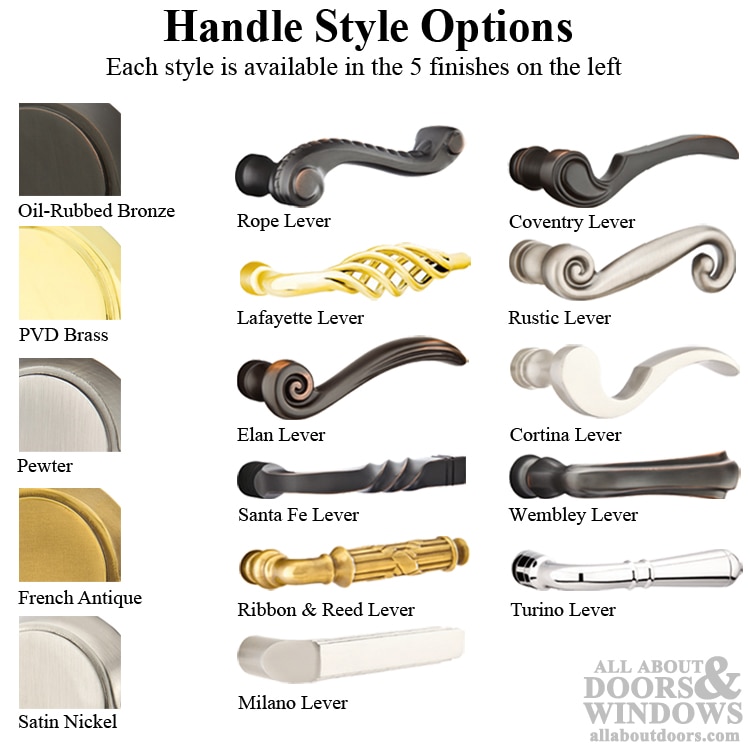

B. Handle/Lever Design:
See drop-down for 12 options.

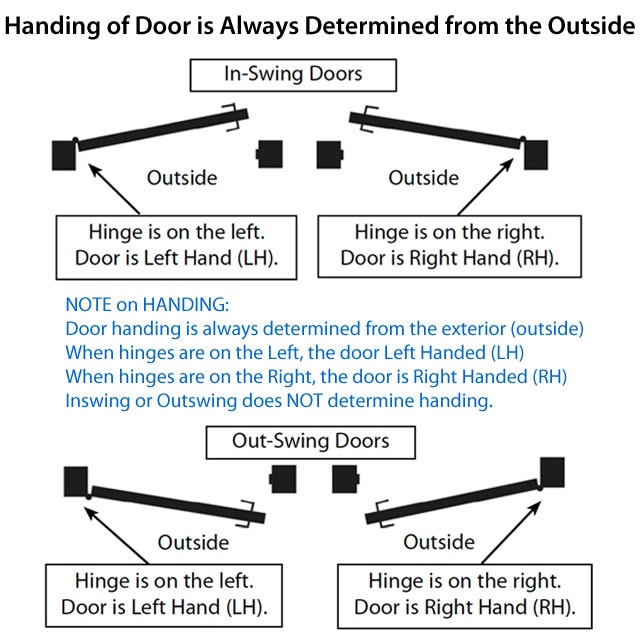

C. Handing: (viewed form outside hinge location)
LH - Left Hinge
RH - Right Hinge

D. Color/Finish:
French Antique (US7)
Oil Rubbed Bronze (US10B)
Satin Nickel (US15)
Pewter (US15A)
Polished Brass, PVD-Lifetime (PVD)

Replaces American version multi-point lock hardware for the following companies:
Pella
Milgard

Priced and sold as a package.
