Metal Tilt Latch for UPPER Sash, 2-3/8" Housing, Left - Choose Color

Part Number: 503203-GLDT
Price: $15.95

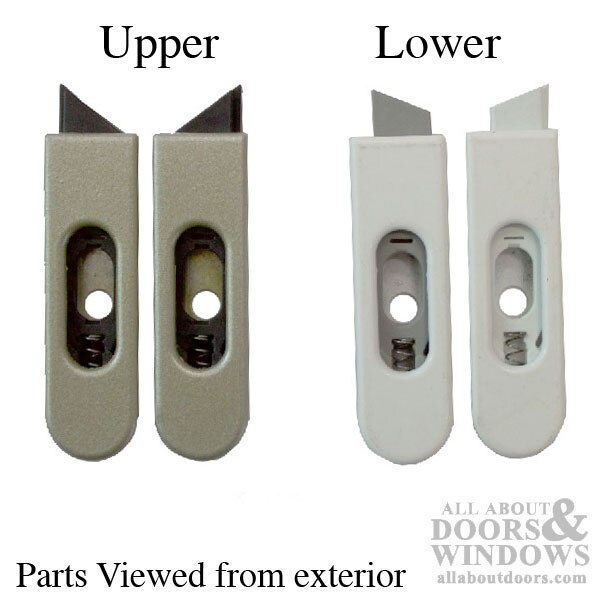

Upper Window Sash Tilt-In window latch used by Weather Shield, Peachtree and others


Application: wood double hung windows

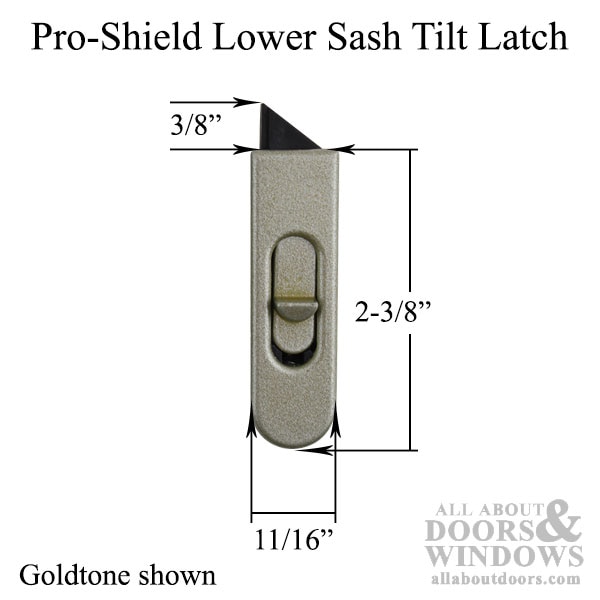

Measurements:

Housing Length: 2-3/8 inches

Housing Width: 11/16 inch

Tip projection: 3/8 inch

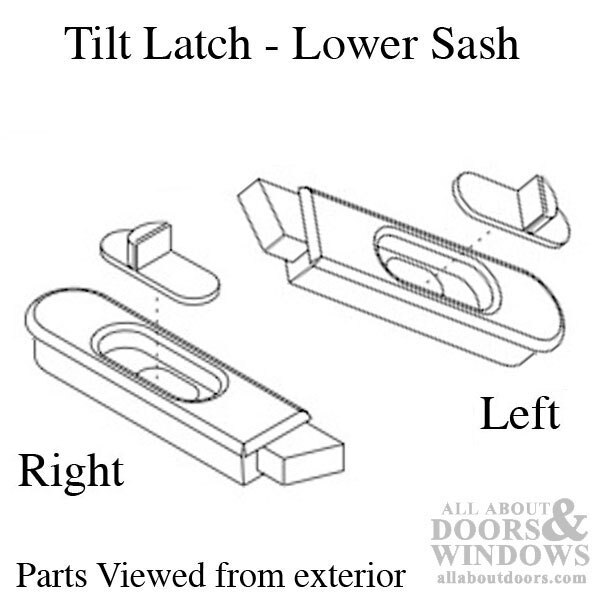

Handed: Yes, left or right as shown

Material: metal & plastic

Available Colors: Goldtone

Sold Each


NOTE:

This latch is held in with a screw located under the thumb button.

To remove button, slide back and insert a small screw driver under the edge and lift up.

Remove Phillips head screw and slide latch out.
