Marks Series 21 Unilock Full Dummy Trim Set - Choose Color

Marks 21 Series Unilock Knob Set, Fixed Dummy Lever Trim for Double Doors
Standard Iron doors are 1 inch thick, some are thicker.
The components are matched with door thickness.

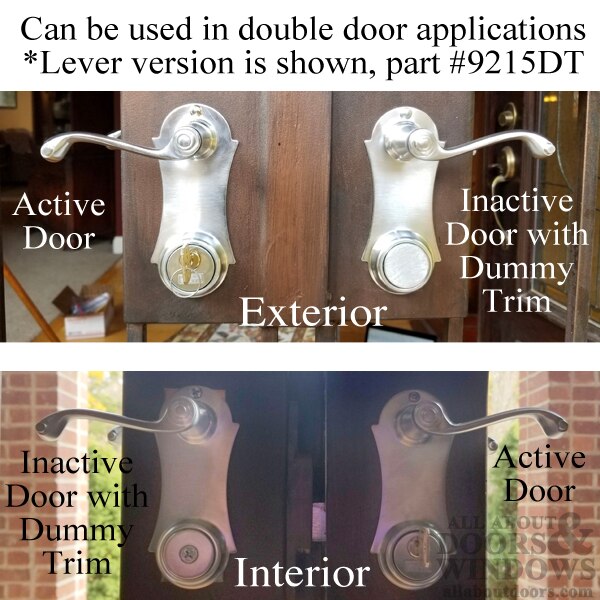

Application: Dummy with fixed knobs for secondary door with active lock and handles
Style: Levers with plate
Door Thickness: 1 inch (standard) or 1-3/4 inches (special order, please allow 4-8 weeks)

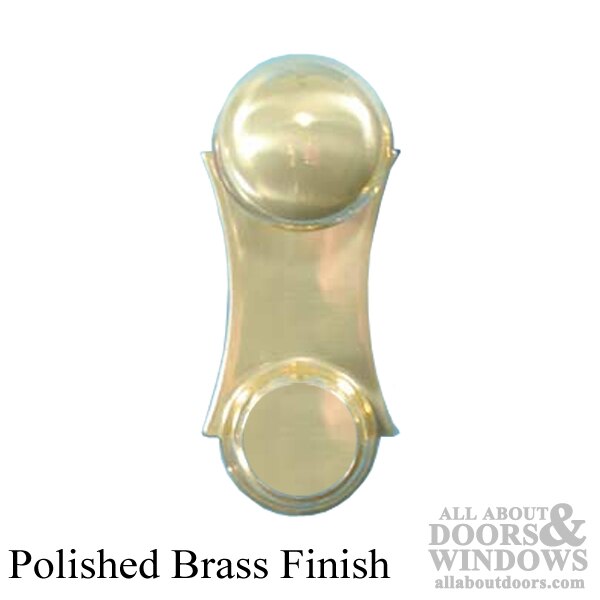

Color / Finish: Brushed/Satin Chrome (26D), Polished Brass (US3), Oil-Rubbed Bronze (US10B), Antique Brass (US5)
Handed: Reversible; fits both left and right handed doors

Includes:
Unilock plates with knob handles
Collars
Exterior dummy cylinder
Interior dummy cylinder (with screw)
Spindle for handles
Stationary plate for dummy functionality
Bushings
Installation hardware

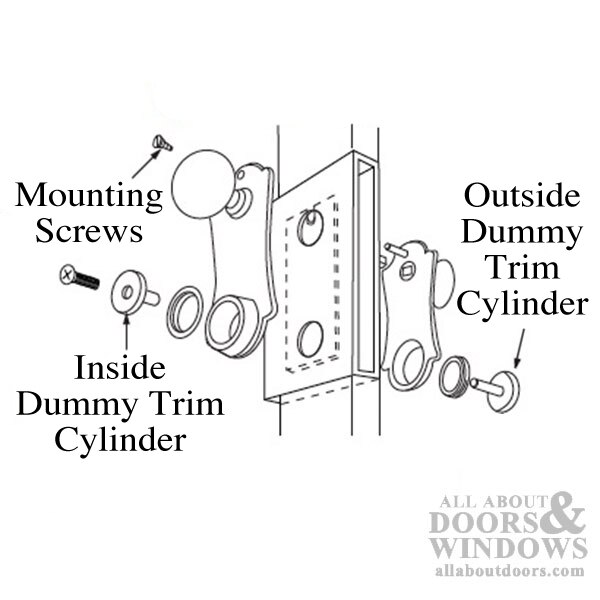

Installation Uni-Lock Dummy Trim:
1. Position knob plate assembly on each side of door as shown. Loosely tighten mounting screws.
2. Place inside and outside dummy cylinders with rings and tighten securely with 1/4-20 flat head machine screws
3. Tighten mounting screws securely and check lock for proper operation before closing door.
