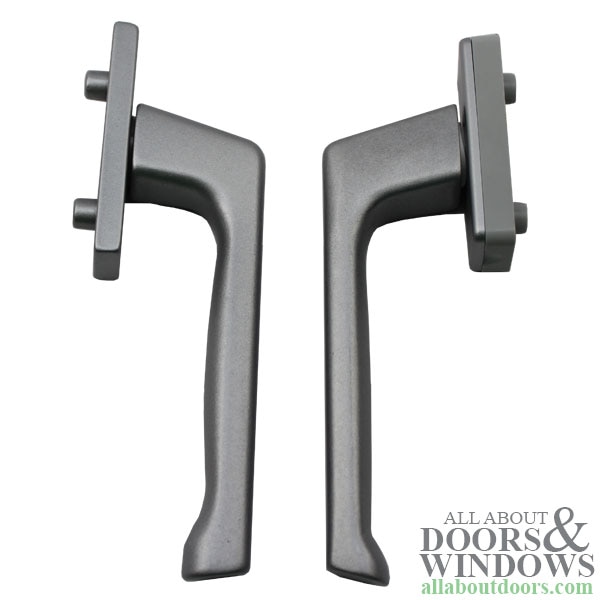

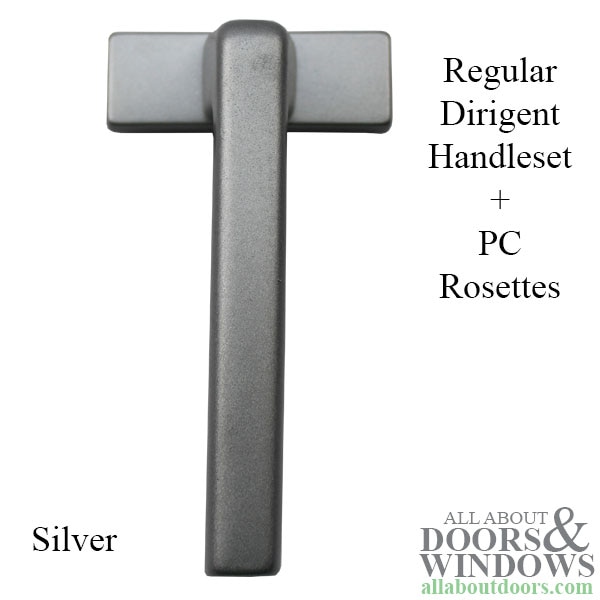

Interior and exterior Regular Dirigent handle + PC Rosettes -
G-U / Ferco Balcony door handle set with Rosettes for profile cylinder
Application: Handles for timber, PVC and metal windows or balcony doors.
The DIRIGENT rotary knobs impress with their bold shape and clean lines. Elegance and functionality are the main features of the DIRIGENT design.
Product range: aluminum interior and exterior handle for wood, uPVC (vinyl), metal windows, and balcony doors.

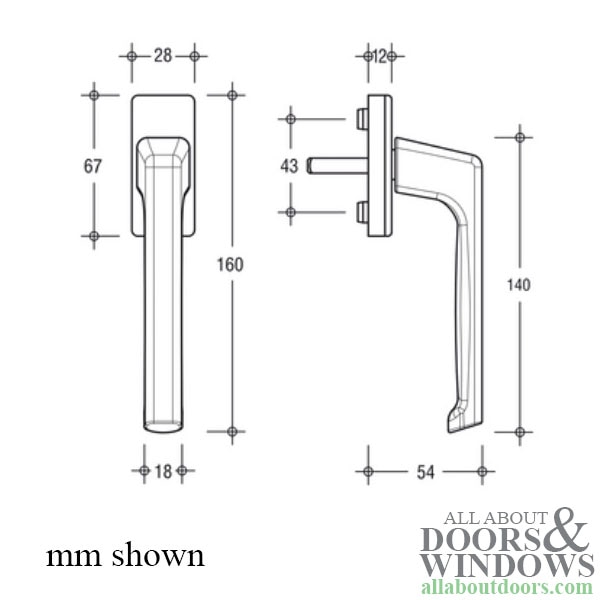

Interior rosette: 28 x 67 mm (round)
Detent: 90° or 90° and 45° F/SP
Lug: 10 mm
Spindle Diameter: 1/4 inch (7mm) 0.2756
Screw Holes: 1-11/16 inch (43mm) 1.69
Square spindlefastened, 7 x 29, 7 x 33, 7 x 38 or 7 x 43 mm
Fasteningconcealed

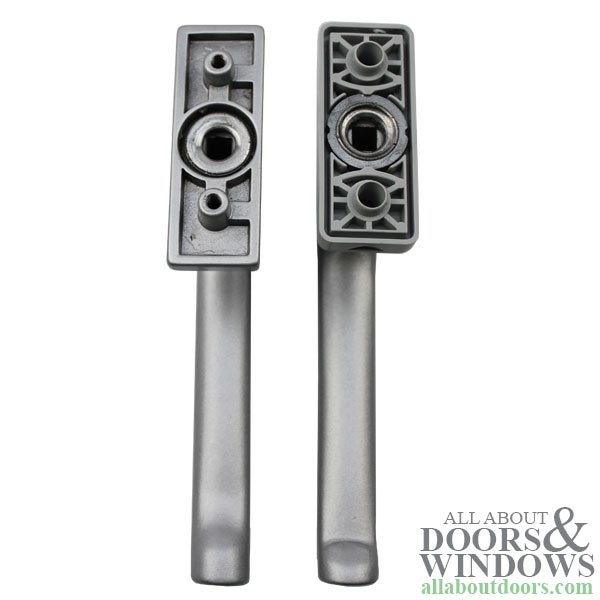

Note: Rosette cover pulls and rotates for screw access
Material: Aluminum
Colors: Black, Brown, Silver, White
Screws & Spindle: Not Included, sold separately based on door thickness
Handle version: inside, outside
Application: Handles for timber, PVC and metal windows or balcony doors.
The DIRIGENT rotary knobs impress with their bold shape and clean lines. Elegance and functionality are the main features of the DIRIGENT design.
Product range: aluminum interior and exterior handle for wood, uPVC (vinyl), metal windows, and balcony doors.
Interior rosette: 28 x 67 mm (round)
Detent: 90° or 90° and 45° F/SP
Lug: 10 mm
Spindle Diameter: 1/4 inch (7mm) 0.2756
Screw Holes: 1-11/16 inch (43mm) 1.69
Square spindlefastened, 7 x 29, 7 x 33, 7 x 38 or 7 x 43 mm
Fasteningconcealed
Note: Rosette cover pulls and rotates for screw access
Material: Aluminum
Colors: Black, Brown, Silver, White
Screws & Spindle: Not Included, sold separately based on door thickness
Handle version: inside, outside
• K-C0776-00-0-1/5/6/7 Handle Kit & ROSETTES PC
o K-C0773-01-0-0 Bag of screws and spindle for sash 2-3/8 to 2-1/2 (60-64mm) (Regular handle)
o K-C0773-02-0-0 Bag of screws and spindle for sash 2-3/4 to 2-29/32 (70-74mm) (Regular handle)
o K-C0773-03-0-0 Bag of screws and spindle for sash 3-11/32 to 3-1/2 (85-89mm) (Regular handle)
• K-C0775-00-0-1/5/6/7 Handle Kit & ROSETTES PC
o K-C0774-01-0-0 Bag of screws and spindle for sash 60-64mm (Flat handle)
o K-C0774-02-0-0 Bag of screws and spindle for sash 70-74mm (Flat handle)
o K-C0774-03-0-0 Bag of screws and spindle for sash 85-89mm (Flat handle)
o K-C0773-01-0-0 Bag of screws and spindle for sash 2-3/8 to 2-1/2 (60-64mm) (Regular handle)
o K-C0773-02-0-0 Bag of screws and spindle for sash 2-3/4 to 2-29/32 (70-74mm) (Regular handle)
o K-C0773-03-0-0 Bag of screws and spindle for sash 3-11/32 to 3-1/2 (85-89mm) (Regular handle)
• K-C0775-00-0-1/5/6/7 Handle Kit & ROSETTES PC
o K-C0774-01-0-0 Bag of screws and spindle for sash 60-64mm (Flat handle)
o K-C0774-02-0-0 Bag of screws and spindle for sash 70-74mm (Flat handle)
o K-C0774-03-0-0 Bag of screws and spindle for sash 85-89mm (Flat handle)
