Inactive Handle Set 800A Series Multi-Point Lock Trim, Non-Handed, Brass - Choose Color

Part Number: 395227B
Price: $260.00

IMPORTANT NOTE: Non-Stock handle sets have a 90 day lead time.

Call the office for availability prior to placing your order.

800-A Series multipoint lock trim with a American cylinder.

Will work with many multipoint locks by Amesbury, as well as most multipoint lock brands.
Handles can be used in the traditional American orientation with the thumb-turn above the handle OR the inverted European style.
Easily rekeyed.
Simple installation.

Function: Inactive (no key, no thumb-turn)
Lever: 800
Plate: A
Material: Brass
Color Options:
Lifetime Satin Nickel
Lifetime Polished Brass

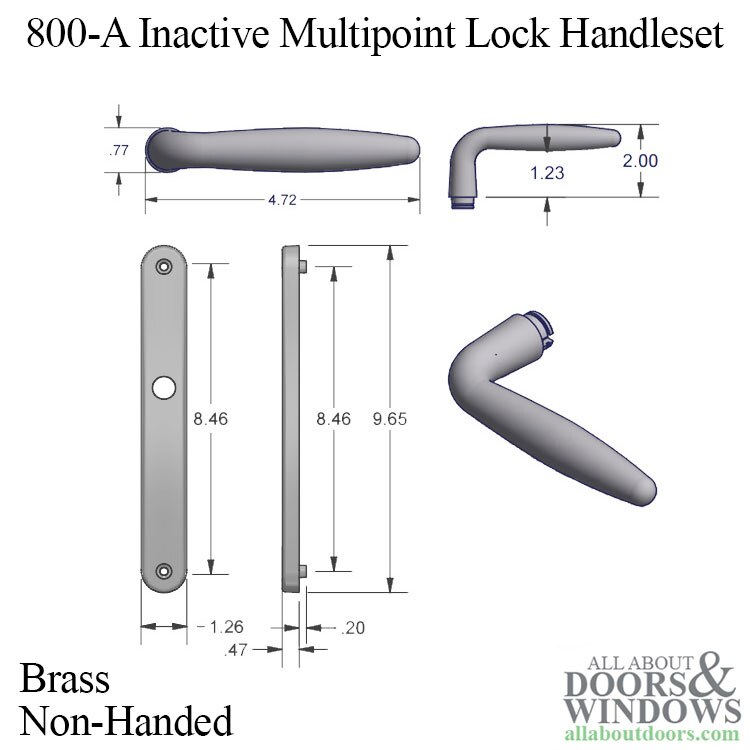

Measurements:
Handle center to cylinder center: 3-5/8 inches
Can be used for Key above or Key below applications
Screw hole centers: 8-7/16 inches
Plate length: 9-5/8 inches
Plate width: 1-1/4 inch
Plate depth: 1/2 inch
Spindle Diameter: 5/16 inch (8mm) Square

HANDING INFO
Handing: Right Hand shown, but this trim is NON-HANDED
Handing is determined from the exterior and by which side the hinges are found.
The lever points towards the hinges.
Hinges on left, left hand trim needed.
Hinges on right, right hand trim needed.
