Hoppe HLS2000 Top Extension, Tongue @ 62.76", Extension Length 78.28"

Part Number: 12002240
Price: $117.32

HOPPE Top Extension only for the HLS2000, it does not include the bottom assembly with Gearbox

Compatible only with the HLS2000 Series


Application:  HLS2000 Tongue Upper Extension

Faceplate Width: 5/8 inch (16mm)

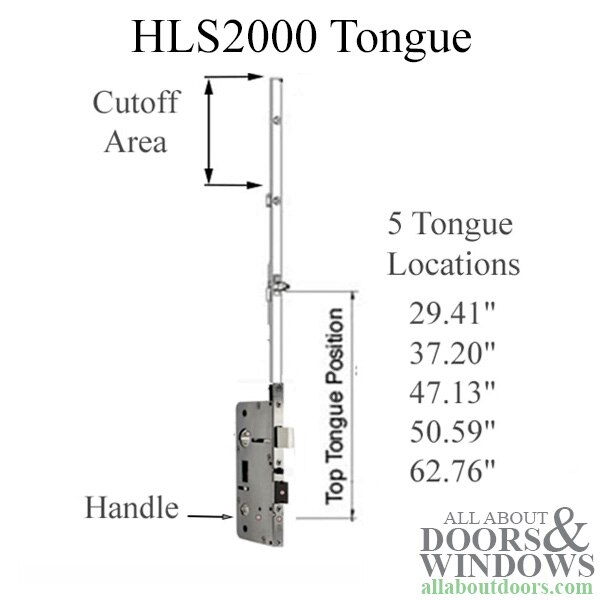

Top Tongue Position: 62.76 inches (1594mm)

Extension Length: 78.28 inches (1988mm)

Overall Door Height: 104.02 to 120 inches (2642-3048mm)

Maximum Cutoff: 15.98 inches (406mm)

Material: Stainless Steel

Number of Screws: 8


Additional Information:

When both Upper and Lower assemblies are connected fits doors from 104.02-120 inches tall with 36 inch handle height.

The top may be cut a maximum of 15.98 inches, to adjust for different door heights.


IMPORTANT NOTE: This upper extension only fits the HOPPE HLS2000 multipoint lock


Priced and sold each.
