Hoppe HLS2000 Top Extension, Tongue @ 50.59", Extension Length 66.28"

Part Number: 12002252
Price: $117.32

HOPPE Top Extension only for the HLS2000, it does not include the bottom assembly with Gearbox

Compatible only with the HLS2000 Series



Application:  HLS2000 Tongue Upper Extension

Faceplate Width: 5/8 inch (16mm)

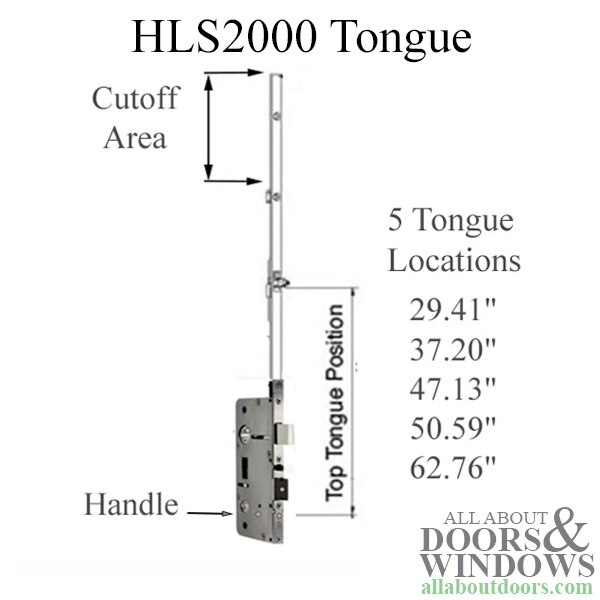

Top Tongue Position: 50.59 inches (1285mm)

Extension Length: 66.28 inches (1683mm)

Overall Door Height: 92.02 to 108 inches (2337-2743mm)

Maximum Cutoff: 15.98 inches (406mm)

Material: Stainless Steel

Number of Screws: 7



Additional Information:

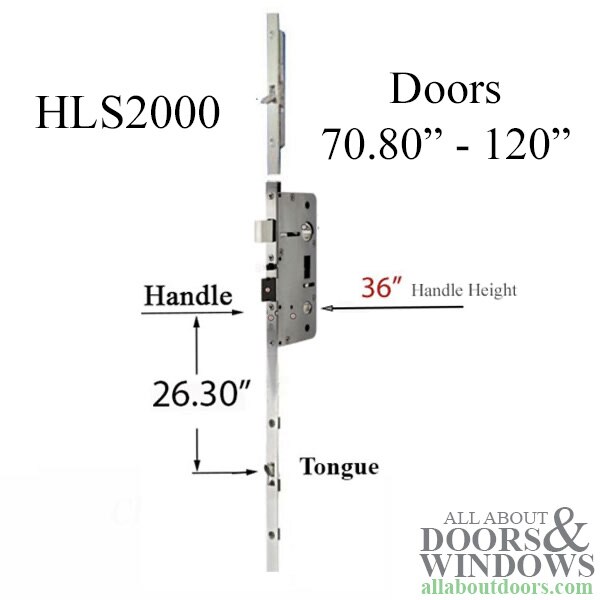

When both Upper and Lower assemblies are connected fits doors from 92.02-108 inches tall with 36 inch handle height.

The top may be cut a maximum of 15.98 inches, to adjust for different door heights.



IMPORTANT NOTE: This upper extension only fits the HOPPE HLS2000 multipoint lock



Priced and sold each.
