Hoppe HLS2000 Top Extension,Tongue @ 29.41", Extension Length 42.26"

HOPPE Top Extension only for the HLS2000, it does not include the bottom assembly with Gearbox

Compatible only with the HLS2000 Series

Application:  HLS2000 Tongue Upper Extension

Faceplate Width: 5/8 inch (16mm)

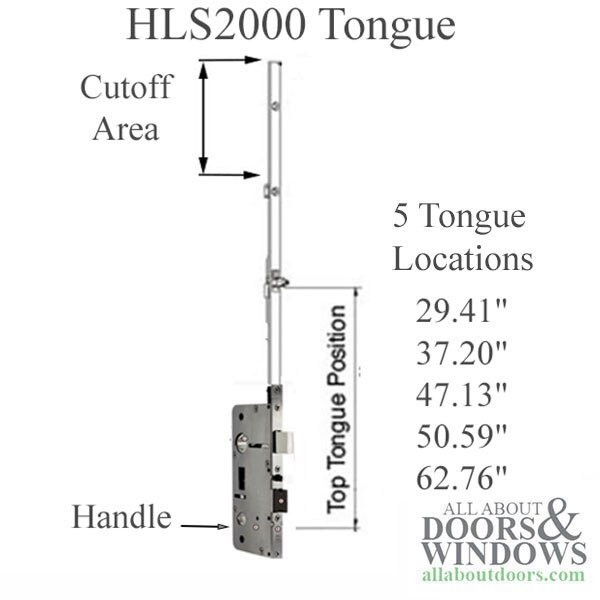

Top Tongue Position:  29.41 inches (747mm)

Extension Length: 42.26 inches (1226mm)

Overall Door Height: 70.99 to 83.98 inches (1803-2133mm)

Maximum Cutoff: 12.99 inches ( 330mm)

Material: Stainless Steel

Number of Screws: 5

Additional Information:

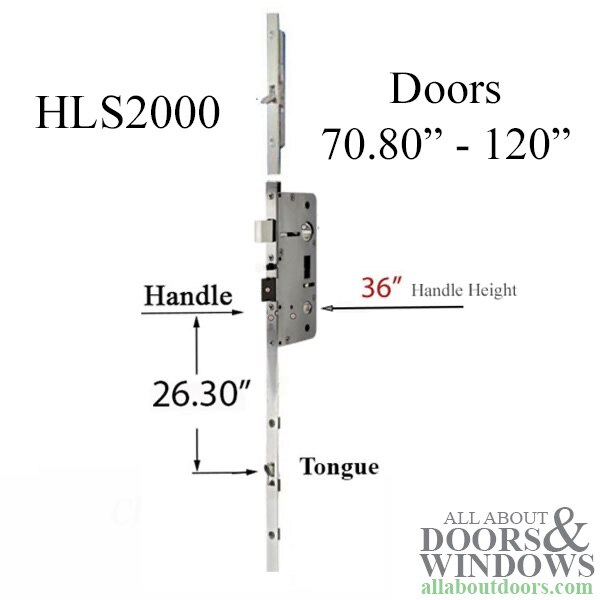

When both Upper and Lower assemblies are connected fits doors from 70.99 to 83.98 inches tall with 36 inch handle height.

The top may be cut a maximum of   12.99 inches, to adjust for different door heights.

IMPORTANT NOTE: This upper extension only fits the HLS2000 multipoint lock
