Hinge, Casement & Projecting 11/16 x 8 inch Stainless Steel
Anderberg 201 Series, Amesbury Truth 34.10.00.100 non-handed awning and casement 4 bar hinge
Application: Awning & Casement windows
Hinge Type: 4 Bar
Call Size: 8 inch
Actual Track Width: 23/32 inch (18.16mm) 0.715
Actual Track Length: 8.22 inches (208.8mm)
Stop: YES
Hinge Pocket Height: 1/2 inch (12.7mm) 0.500
Max Sash Width: 32 inches
Max Weight: 65 pounds Casement & 19 pounds Awning
Degree of Opening: 55 Casement & Awning
Shoe: Brass, Adjustable
Adjustable Friction: Yes
Material: Stainless Steel

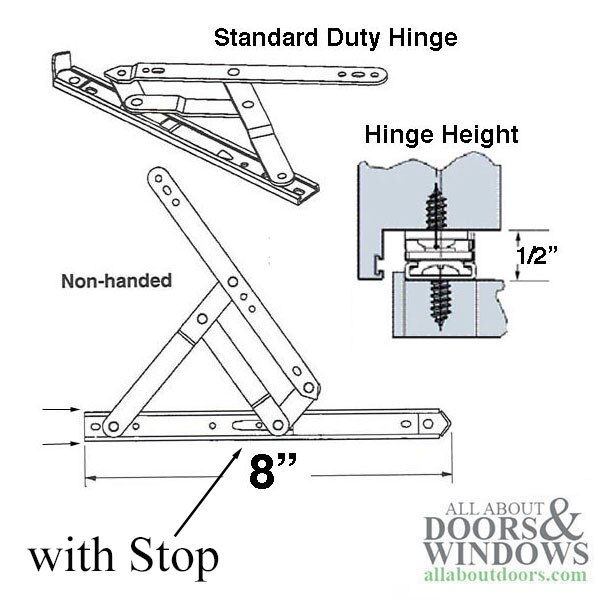

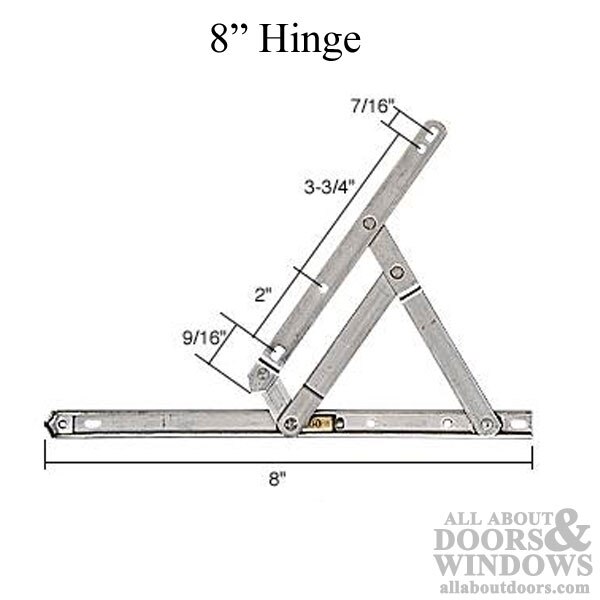

Measurements shown on Line drawing with Stop
B N/A
C 4.75
D 5.19
E 6.78
F 5.59
G 5.16
H 3.63
J 4.03
Degree of Opening: 55°
Product Highlights
A wide range of lengths and thickness
4-bar hinges are certified to AAMA 904.1
4-bar hinges have been designed to be used primarily on vents with a lip on the outside edge
4-bar hinges are adaptable to both casement, awning and projected window applications
Standard 4-bar hinges are for lighter windows no heavier than 40 pounds
Heavy duty 4-bar hinges are for commercial windows up to 200 pounds
201/301 Series hinges are manufactured with a black acetal plastic or brass shoe
Available in stainless steel ( steel is being phased out)
