Discontinued Fastfit 1 Sliding Door Lock 25mm- Euro Style 3-point Lock
Certainteed Sliding Glass door Multi-point lock used on Vinyl Door
- Discontinued - can be replaced with 149907 kit with backset spacers
Limited to available stock

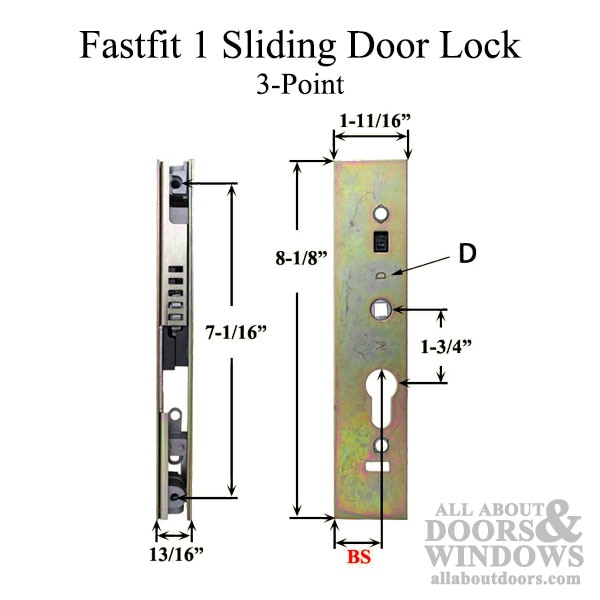

Certainteed Lock Info:
Cylinder Type: Euro Style 2-3/4 length (70 mm) (Sold Separately - Not Included)
Rod Length: 34-1/4 with threads on one end
Rod Diameter: 1/4 inch
Handle Spacing: 1-3/4 inch Center of handle to center of thumb turn
Spindle Diameter: 1/4 inch (7mm) Square
Backset: 0.984 inch (25mm) without face plate
Locking Bolts: Spaced @ 7-1/16 inch when slid together and away to lock door 8-7/16 Inch
NOTE: OPTIONS
Backset Options - 15.5mm, 18.5mm, 22.5mm, 25mm, 27.5mm Depending on door
Handle Options - Black, White, Gold, Clear Anodized
Keyed or Keyless
Single or double operating levers
Shootbolts for head or sill.
