Corner Insert for Sliding Screen Door
Corner Insert for Sliding Screen Door.
Corner Insert consists of diecast yellow zinc corner insert with adjustment screw.
This Corner Insert is used by 45 degree Miter cut door designs and can be used on 11095 Screen Door Roller Assemblies.

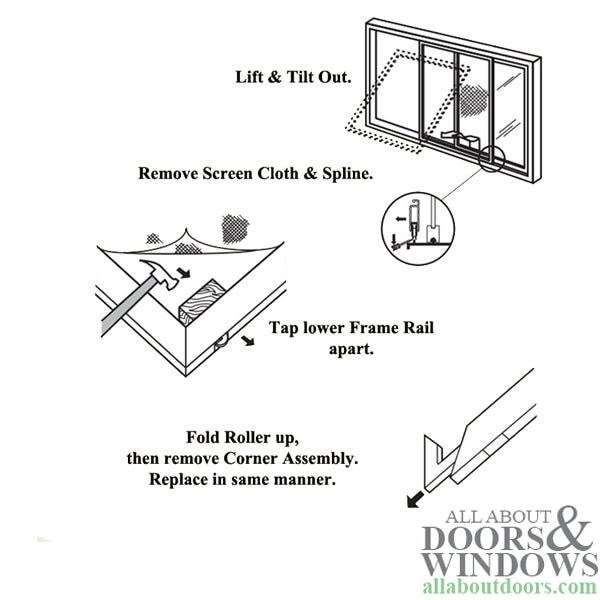

Please note that the Screen Roller must be removed before the Corner Bracket.
You must spread the tabs on the Screen Roller to remove.

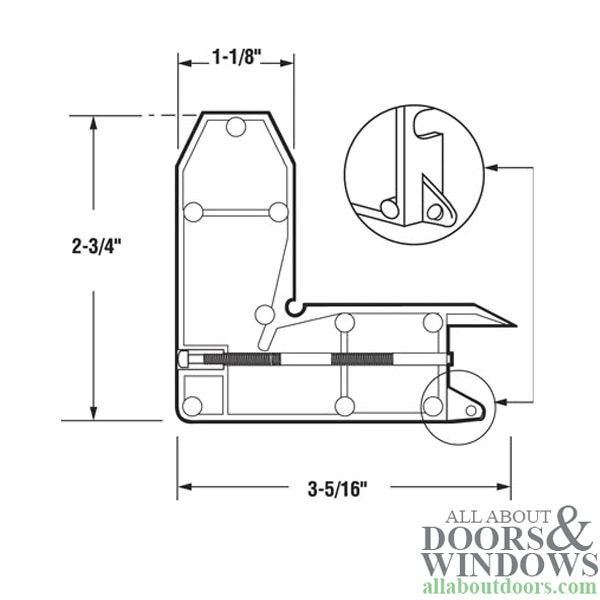

Height: 2-3/4 Inch
Width: 3-5/16 Inch
Color: Yellow Zinc
Finish: Plated
Material: Diecast
Mount: Corner
Contents: 2 Corner Inserts
Priced and Sold in Pairs. (Bracket Only, No Roller)
Corner Insert consists of diecast yellow zinc corner insert with adjustment screw.
This Corner Insert is used by 45 degree Miter cut door designs and can be used on 11095 Screen Door Roller Assemblies.
Please note that the Screen Roller must be removed before the Corner Bracket.
You must spread the tabs on the Screen Roller to remove.
Height: 2-3/4 Inch
Width: 3-5/16 Inch
Color: Yellow Zinc
Finish: Plated
Material: Diecast
Mount: Corner
Contents: 2 Corner Inserts
Priced and Sold in Pairs. (Bracket Only, No Roller)
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: B 569
Strybuc Industries: 16-116
SlideCo: 11556
Prime-Line Products: B 569
Strybuc Industries: 16-116
SlideCo: 11556
